Delock 90603 2D barcode scanner Corded 1D, 2D LED Black Built-in
EAN:
Part number:
Item no:
Datasheet (PDF)
Barcode Scanner
Highlights & Details
- Scanner module
- FPC 12-pin straight
- Female
- Black
- 1 pieces(s)
Technical specifications
- Product type: Scanner module
- Connection 1: FPC 12-pin
- Connection1 Form factor: Straight
- Product type
2D barcode scanner
- Type
90603
- Type
Built-in
- Scanning technology
LED
- Readable code types
1D
2D
- Reading distance (max.)
350 mm
- Scan rate
30 Scans/s
- Cordless scanning
Corded
- Factory colour
Black
- Cable length
0 cm
- Width
14 mm
- Height
9 mm
- Depth
21 mm
- Weight
2 g
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Compatible with
Jede Marke
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3379764 Delock 90603 2D barcode scanner Corded 1D, 2D LED Black Built-in
User & Safety Instructions
User & Safety Instructions 3379764 Delock 90603 2D barcode scanner Corded 1D, 2D LED Black Built-in
Description

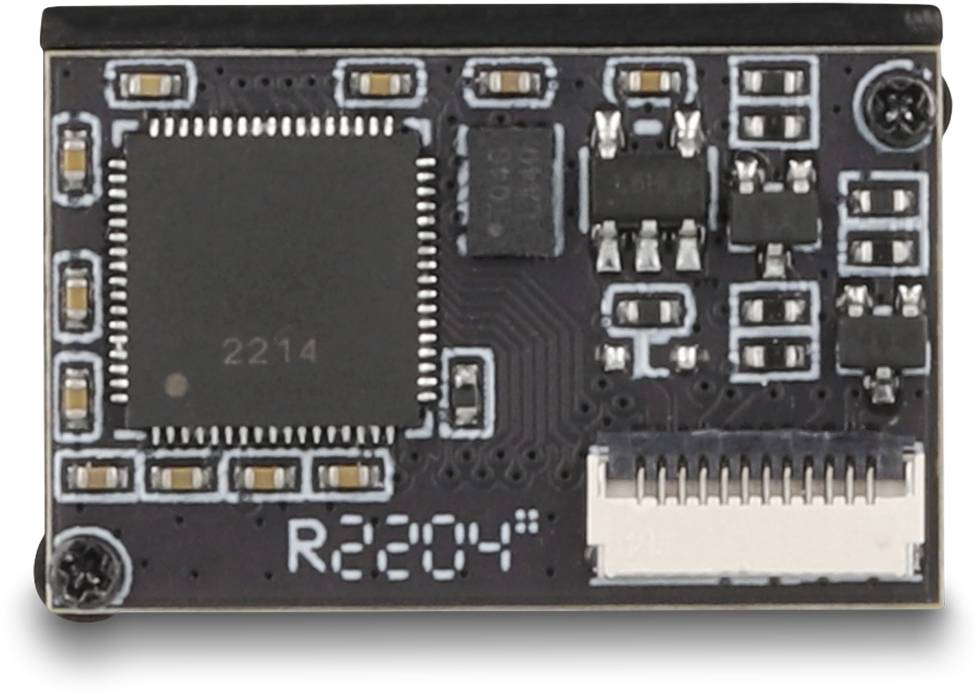

This barcode scanner module from Delock can be used for installation in any housing.
Small but powerful
The module convinces with a size of 21 x 14 x 9 mm. All common 1D and 2D barcode types can be captured precisely even at large distances. In addition, the scanner detects barcodes displayed on displays or monitors.
Automatic adjustment to ambient brightness
The scanner automatically adjusts to the ambient brightness and captures up to 30 scans per second under optimum light conditions.
At low ambient brightness the bar code is illuminated by an additional white LED and can thus be used even in poor lighting conditions.
This text is machine translated.
Small but powerful
The module convinces with a size of 21 x 14 x 9 mm. All common 1D and 2D barcode types can be captured precisely even at large distances. In addition, the scanner detects barcodes displayed on displays or monitors.
Automatic adjustment to ambient brightness
The scanner automatically adjusts to the ambient brightness and captures up to 30 scans per second under optimum light conditions.
At low ambient brightness the bar code is illuminated by an additional white LED and can thus be used even in poor lighting conditions.
This text is machine translated.
Features
- Connection 1 x FPC 12 pin socket
- Decoding chip: ARM Cortex 32-bit
- Max. Resolution 640 x 480
- Reading distance: Approx. 30 mm to 350 mm
- Reading accuracy 4 mil
- Light color: Visible red LED
- Compensation light: White LED
- Sensor: CMOS image sensor
- Scan rate: Up to 30 scans per second
- Scan angle 44°
- Ambient brightness: Max. 100000 lux
- Input voltage: 3.3 V
- Power consumption:
- Operating: Max. 110 mA
- Standby: Max. 60 mA
- Operating temperature: -20 °C ~ 60 °C
- Storage temperature -40 °C ~ 80 °C.
- Relative humidity: 0 - 95% (non-condensing)
- Colour, black
- Weight approx. 2 g
- Dim. (LxWxH): Approx. 21 x 14 x 9 mm
- Scan codes:
- Code 128
- Code 39
- Interleaved 2 of 5
- EAN-8 / EAN-13
- ISBN 13
- Data matrix
- PDF417
- QR code
System requirements
- Android 11.0 or higher
IPad Pro (2018)
Linux Kernel 5.15 or later
Mac OS X 12.4 or higher
Windows 8.1/8.1-64/10/10-64/11
