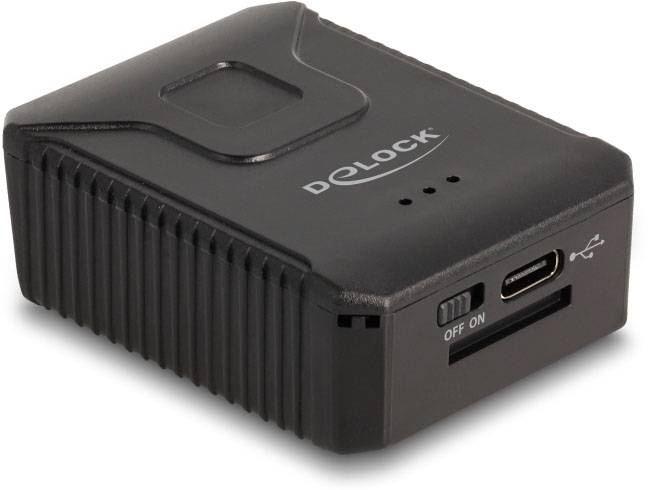

Delock 90605 Barcode scanner Bluetooth® 1D, 2D LED Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Barcode Scanner
- Portable barcode reader black
- Scanner type: 1D/2D sensor type: CMOS
- Codabar, code 128, EAN-13, EAN-8, ISBN, Interleaved 2 of 5, PDF417 Code 39, Data Matrix, Micro QR Code, MicroPDF417, QR code
- 1280 x 800 pixels
- 30 cm operating distance
- Built-in processor
- Standard wireless interfaces: Bluetooth, RF Wireless, USB
- Power source: Battery lithium polymer (LiPo) 380 mAh
Technical specifications
- Rechargeable battery/battery technology: Lithium polymer (LiPo)
- Product type
Barcode scanner
- Type
90605
- Scanning technology
LED
- Readable code types
1D
2D
- Reading distance (max.)
300 mm
- Scan rate
100 Scans/s
- Cordless scanning
Bluetooth®
- Factory colour
Black
- Cable length
1 m
- Width
42 mm
- Height
20 mm
- Depth
56 mm
- Weight
40 g
- Bluetooth
4.1
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Battery capacity
380 mAh
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- Input voltage
3.3 V
- UKCA
yes
- Operating temperature (T-T)
-10 - 60 °C
- Number of batteries supported
1
- USB 2.0 ports quantity
1
- Working distance
30 cm
- Optical sensor resolution (W x H)
1280 x 800 p
- Charging time
2 h
- Internal memory
16 MB
- Operating relative humidity (H-H)
5 - 90 %
- Pitch reading angle
0 - 360°
- Read rate (max)
100 Auslesungen/Sekunde
- Storage temperature (T-T)
-40 - 70 °C
- Built-in processor
yes
Documents & Downloads
Datasheet
Datasheet 3379765 Delock 90605 Barcode scanner Bluetooth® 1D, 2D LED Black
User & Safety Instructions
User & Safety Instructions 3379765 Delock 90605 Barcode scanner Bluetooth® 1D, 2D LED Black
Description
This barcode scanner from Delock can be connected wirelessly with a PC, laptop or directly with the mobile phone or tablet. All common 1D and 2D barcode types can be captured precisely even at large distances. In addition, the scanner detects barcodes displayed on displays or monitors. The scanner automatically adjusts to the ambient brightness and captures up to 100 scans per second under optimum light conditions.
At low ambient brightness the bar code is illuminated by an additional white LED and can thus be used even in poor lighting conditions. This portable scanner can be practically fixed to the glove by locking mechanism, so that the carrier has the hands free, for instance to hold a cardboard.
Transfer via Bluetooth, USB or 2.4 GHz

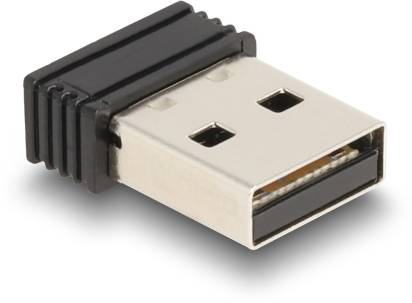

The scanned barcodes are transmitted either via Bluetooth directly to the Bluetooth-compatible output device or via the 2.4 GHz frequency band with the enclosed USB dongle. Alternatively, the scanner can be connected to the computer using the enclosed USB cable.
This text is machine translated.
At low ambient brightness the bar code is illuminated by an additional white LED and can thus be used even in poor lighting conditions. This portable scanner can be practically fixed to the glove by locking mechanism, so that the carrier has the hands free, for instance to hold a cardboard.
Transfer via Bluetooth, USB or 2.4 GHz
The scanned barcodes are transmitted either via Bluetooth directly to the Bluetooth-compatible output device or via the 2.4 GHz frequency band with the enclosed USB dongle. Alternatively, the scanner can be connected to the computer using the enclosed USB cable.
This text is machine translated.
Features
- 1 x USB Type-C™ connector
- Decoding chip: ARM Cortex 32-bit
- Lithium-polymer 380 mAh battery
- Resolution: 1280 x 800
- Trigger: Push-button
- Reading distance: Approx. 30 mm to 300 mm
- Reading accuracy 4 mil
- Operating time: Approx. 8 hours at 2D, 12 hours at 1D
- Range:
- Indoor areas: Up to 10 m.
- Outdoor: Up to 10 m.
- Charging time: Approx. 2 hours
- Internal memory: 16 MB
- LED display for charging status, Bluetooth connection and Power
- Light color: Visible red LED
- Compensation light: White LED
- Sensor: CMOS image sensor
- Scan rate: Up to 100 scans per second
- Inclination 360°
- Ambient brightness: Max. 10000 lux
- Input voltage: 3.3 V
- Power consumption:
- Operating: Max. 100 mA
- Standby: Max. 30 mA
- Operating temperature: -10 °C ~ 60 °C
- Storage temperature -40 °C ~ 70 °C.
- Relative humidity: 5 - 90% (non-condensing)
- Colour, black
- Weighs about 40 g
- Dim. (LxWxH): Approx. 56 x 42 x 20 mm
- Cable length without connections: Approx. 1 m.
- Bluetooth standard V 4.1
- 2.4 GHz
- Scan codes:
- Codabar
- Code 128
- Code 39
- Interleaved 2 of 5
- EAN-8 / EAN-13
- ISBN 13
- Data matrix
- Micro PDF417
- AAA QR
- PDF417
- QR code
- Languages supported:
- Deutsch
- English
- French
- Italian
- Spanish
- Swiss German
- Swiss French
- Hungarian
System requirements
- Android 11.0 or higher
Chrome OS
IPad Pro (3) Next generation) or higher
IPad Air (4. Next generation) or higher
Mac OS X 12.4 or higher
Bluetooth Standard 4.1 or higher
PC or laptop with a free USB type A port for dongle
Windows 10/10-64/11
