Delock 90655 90655 Adapter block Number of pins: 9, 3 Multicolour 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter block
Number of pins
9
3
Content
1 pc(s)
Factory colour
Multicolour
Manufacturer part #
90655

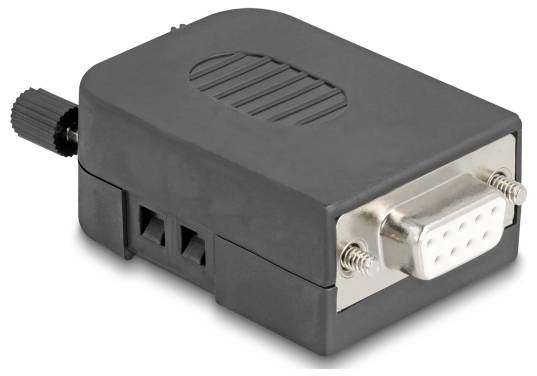

Delock sub-D connector housing 9 pin serial made of plastic including terminal block connector socket for RS-232/RS-485/CANbus
Highlights & Details
- Number of pins: 9, 3
Technical specifications
- Product type
Adapter block
- Number of pins
9
3
- Factory colour
Multicolour
- Content
1 pc(s)
- Manufacturer part #
90655
- Cable Ø
10 mm
- Width
20 mm
- Height
34 mm
- Length
48 mm
- Temperature range
-40 °C - +70 °C
- Type
90655
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Connection type
Connector
Cable
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3384094 Delock 90655 90655 Adapter block Number of pins: 9, 3 Multicolour 1 pc(s)
Description
Description
This terminal block adapter from Delock can be used to connect stranded wires with stripped ends. It is suitable for serial data communication, e.g. for connecting devices with appropriate interfaces, such as computers, microcontrollers or industrial controls.
Protection through housing
The plastic housing protects the circuit board against dirt and damage.

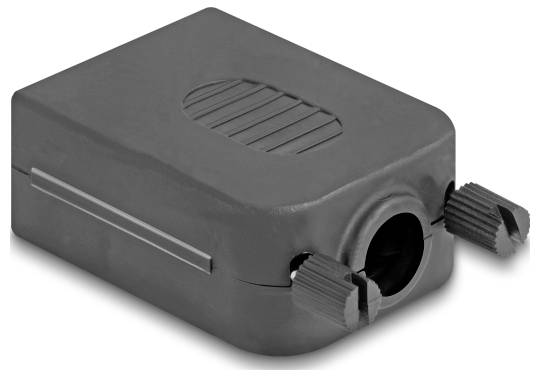

Strain relief
The integrated strain relief secures the cable in the housing.
Technical data
Connections:
1 x serial D-Sub 9 socket with screws
1 x 3 pin terminal block
D-SUB 9: CD(1), RXD(2), TXD(3), DTR(4), GND(5), DSR(6), RTS(7), CTS(8), RI(9)
TERMINAL BLOCK: RXD (2), TXD (3), GND (5)
Pitch measured: 3.81 mm
Can be used for a wire cross-section from 26 to 18 AWG
For cable diameter 10 mm
Operating temperature: -40 °C ~ 70 °C
Dim. (LxWxH): Approx. 48 x 20 x 34 mm

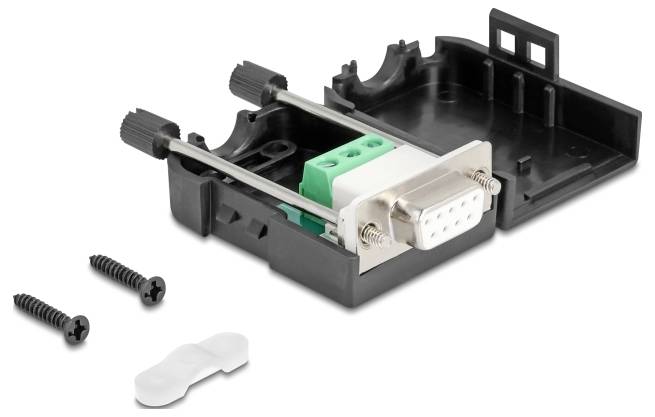

Package contents
Adapter
1 x strain relief.
2 x locking screw
Packaging
Resealable bag
