Delock 96397 96397 CMOS colour camera unit
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
CMOS colour camera unit
- Pic resolution
1280 x 720 Pixel
- Cable length
0.004 m
- F-numbers
F/2.5
- Width
38 mm
- Height
38 mm
- Weight
100 g
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
29 mm
- Cable use
C13/C14 appliances
- Connections
RJ45 connector
- Connection type
USB 2.0
- Output voltage
5 V
- UKCA
yes
- Operating temperature (T-T)
5 - 50 °C
- Optical sensor size
25,4 / 4 mm (1 / 4")
- Infrared (IR) cut-off filter
yes
- Megapixel (approx.)
0.92 MP
- Maximum video resolution
1280 x 720 p
- Maximum frame rate
120 fps
Documents & Downloads
Datasheet
Datasheet 3383057 Delock 96397 96397 CMOS colour camera unit
User & Safety Instructions
User & Safety Instructions 3383057 Delock 96397 96397 CMOS colour camera unit
Description
Quick guide

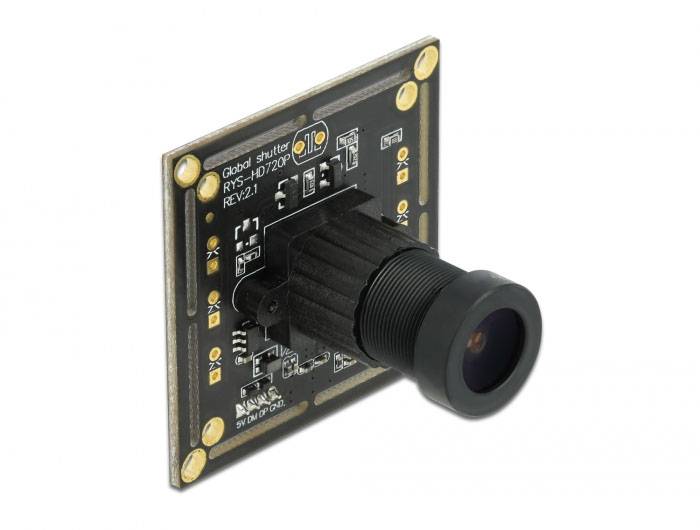

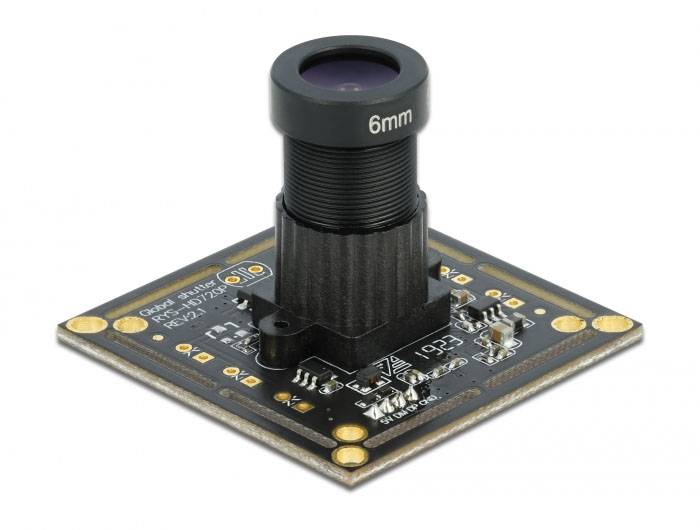

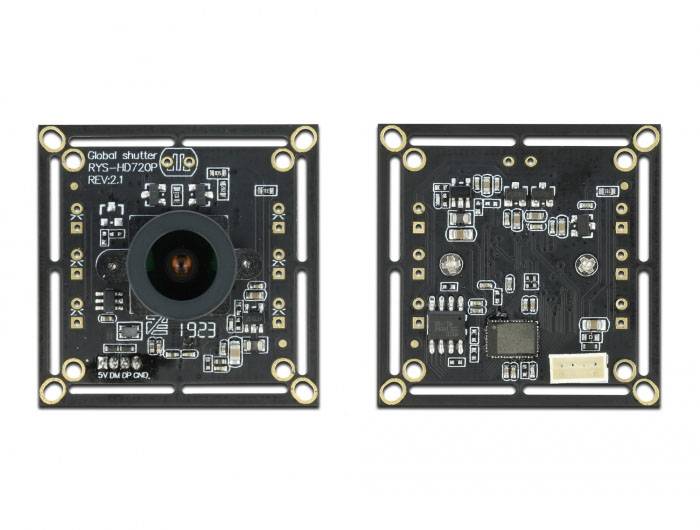

This Delock USB 2.0 camera module offers high resolution with low power consumption in a very compact design. It is Ideal suitable for installation in industrial components such as IPCs, embedded systems, sensors and in equipment manufacturing. The use of a photosensitive sensor with reverse exposure (BSI) extends the range of application of this module.
Global shutter
The module has a central shutter (Global Shutter). This makes it ideal for recording fast-moving objects.
