Delock AV Converter 62783 [ - ] 1920 x 1080 Pixel
EAN:
Part number:
Item no:
Highlights & Details
Delock 62783 Video signal converter 1920 x 1080 Pixel
- 1,920 x 1,080 pixels
- Host interface SCART + HDMI

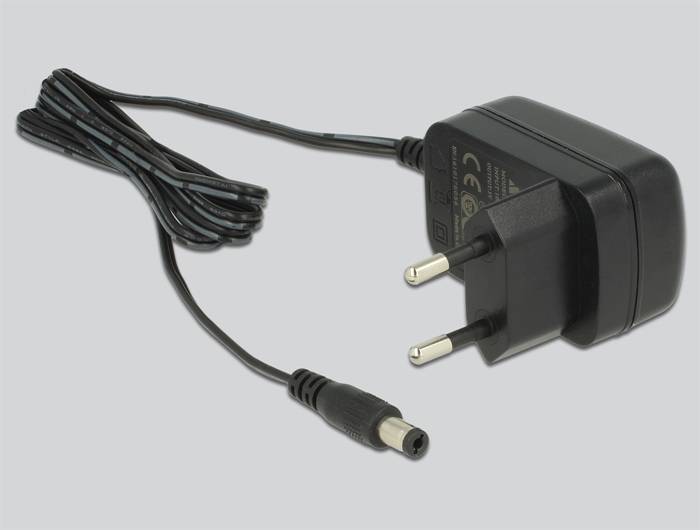

- External mains adapter
- Black
Technical specifications
- Host interface SCART + HDMI
- Product type
AV Converter
- Connection type
HDMI
SCART
Jack
S/PDIF
- No. of A connectors
1 x
- Type A
HDMI socket
SCART socket
DC 5.5 mm socket
- No. of B connections
1 x
- Type B
HDMI socket
Digital Audio (coaxial)
Jack socket 3.5 mm
- Video resolution
1920 x 1080 Pixel
- Cable length
1 m
- Factory colour
Black
- Version
Converter
- Cable use
AV
- Weight
0.5
- Length
10.2 cm
- Width
10.1 cm
- Height
2.5 cm
- Dim
(L x W x H) 10.2 x 10.1 x 2.5 cm
- Depth
10.2 cm
- Input voltage
100 - 240 V
- UKCA
yes
- AC adapter included
yes
- Quantity
1
- USB powered
no
- External power adapter
yes
- Manual
yes
- Operating voltage
5 V
- Maximum video resolution
1920 x 1080 p
- Operating current
1 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381048 Delock AV Converter 62783 [ - ] 1920 x 1080 Pixel
Description

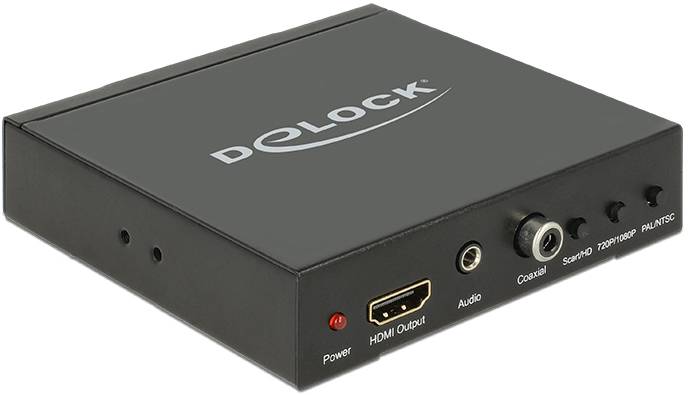

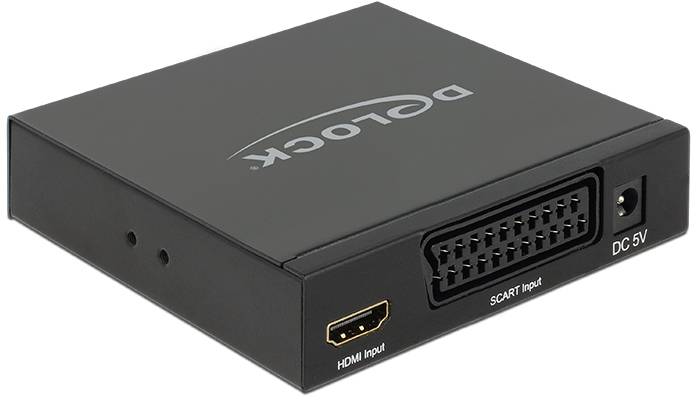

The Delock A/V converter converts an analogue SCART video and audio signal into a digital HDMI signal. Thus, for instance, you can connect a video recorder or a game console with an HDMI monitor or full HD TV. In addition, an HDMI input is present, so that the converter can be used as a switch. Both inputs are scaled via the integrated video processor to an HDMI output signal of 720p or 1080p with 50 or 60 Hz. The audio signal is available at the same time at the HDMI output, as digital S/PDIF signal and as analogue stereo signal at the jack socket.
