Name: Delock DisplayPort Cable DisplayPort plug 2 m Black 85660 gold plated connectors, twisted, triple shielding, 4K UHD, 8K
Brand: Delock
SKU: 3378945

DisplayPort cable with two identical connectors. Black, for video and audio transmission between devices.

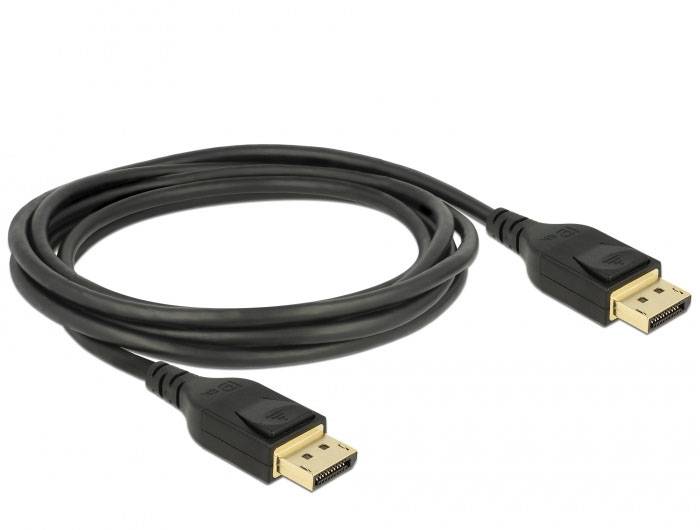

A black DisplayPort cable with two connectors, used for connecting a monitor to a computer to transmit video signals.

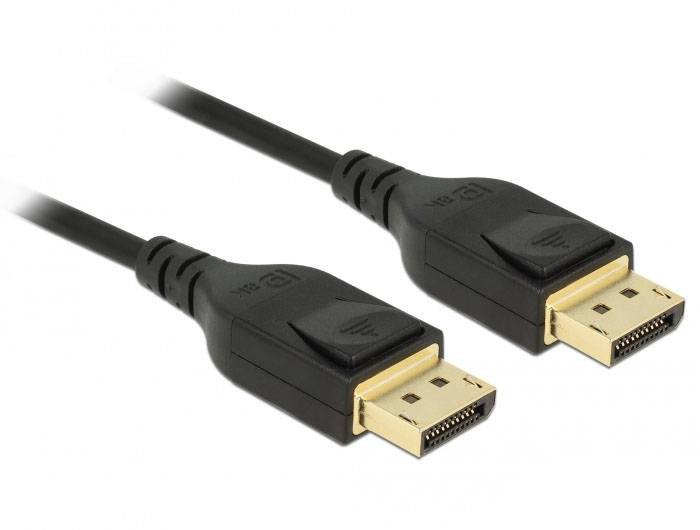

A black DisplayPort cable with two connectors that have golden-edged borders.

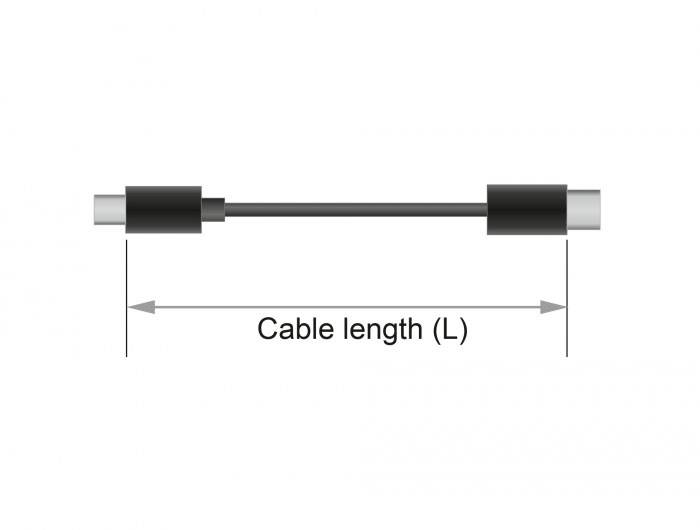

Diagram of a cable with two connectors. The text 'Cable length (L)' indicates the cable length between the connectors.

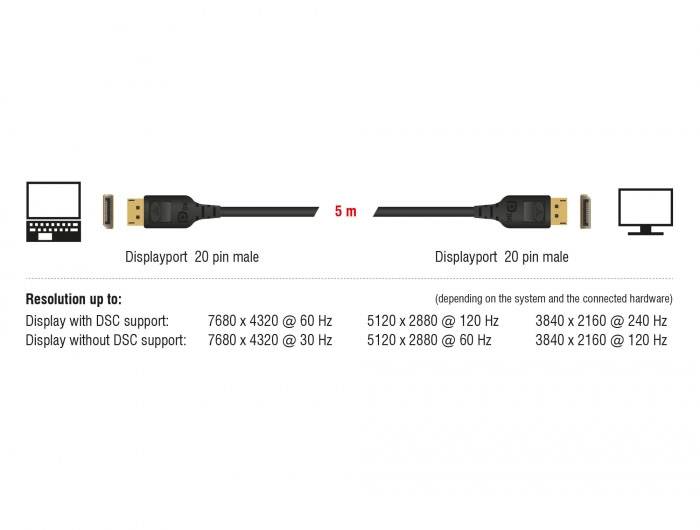

A 5 m DisplayPort cable with a 20-pin plug, showing resolution and frequency support for DSC and without DSC on two monitors.

1/5

Product type

DisplayPort cable

Connection type

DisplayPort

Version

Cable

Connection type

DisplayPort to DisplayPort

Connections

DisplayPort plug

Unavailable

33 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Alternative article by RENKFORCE

Renkforce DisplayPort Cable DisplayPort plug, DisplayPort plug 2.00 m Black UHD 8K @ 60 Hz DisplayPort cable

€ 6.49

plus VAT. plus

Technical specifications

Data transfer rate 32.4 Gbps

Product type: DisplayPort cable

Connection type: DisplayPort

Version: Cable

Connection type: DisplayPort to DisplayPort

Connections: DisplayPort plug

DisplayPort version: DisplayPort 1.4

Connector version: straight

Video resolution: 7680 x 4320 Pixel

Max. frequency: 240 Hz

Cable length: 2 m

Factory colour: Black

Cable features: gold plated connectors
twisted
triple shielding
4K UHD
8K UHD

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

Cable design: Round

: Copper

: 34 AWG

Display resolution: 7680 x 4320 Pixel

UKCA: yes

Number of shielding layers: 3

Quantity per pack: 1 Stück(e)

HDCP: yes

Cable diameter: 4.5 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3378945 Delock DisplayPort Cable DisplayPort plug 2 m Black 85660 gold plated connectors, twisted, triple shielding, 4K UHD, 8K

Description

This certified display port cable from Delock serves to connect devices with DisplayPort interfaces, such as monitors, projectors or TV sets, to a PC or a notebook. It supports a maximum bandwidth of 32.4 GB/s and displays 8K Ultra HD (7680 x 4320 @ 60 Hz) or 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz) resolution. The high-quality, triple shielded cable also significantly improves the quality of audio transmissions through the sampling rate of up to 1536 kHz.

This text is machine translated.
