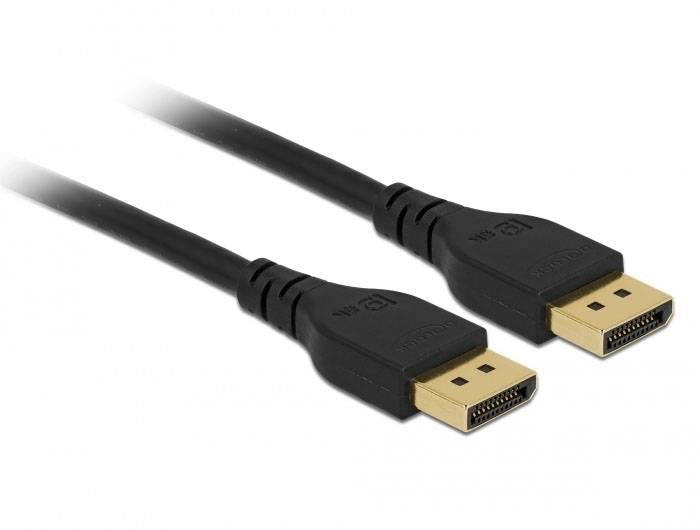

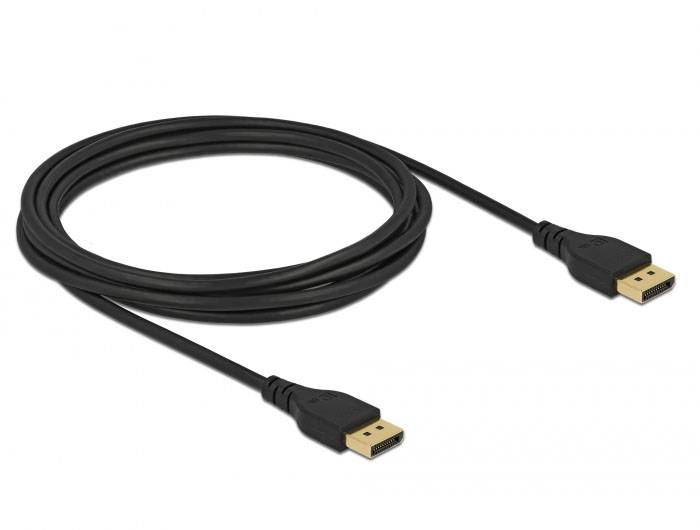

Delock DisplayPort Cable DisplayPort plug 2 m Black 85910 8K UHD, gold plated connectors, triple shielding DisplayPort c
EAN:
Part number:
Item no:
Product type
DisplayPort cable
Connection type
DisplayPort
Version
Cable
Connection type
DisplayPort to DisplayPort
Connections
DisplayPort plug
Technical specifications
- Data transfer rate 32.4 Gbps
- Product type
DisplayPort cable
- Connection type
DisplayPort
- Version
Cable
- Connection type
DisplayPort to DisplayPort
- Connections
DisplayPort plug
- DisplayPort version
DisplayPort 1.4
- Connector version
straight
- Resolutions (max.)
UHD 8K @ 60 Hz
- Video resolution
7680 x 4320 Pixel
- Cable length
2 m
- Factory colour
Black
- Cable features
8K UHD
gold plated connectors
triple shielding
- Signal flow
Unidirectional (A→B)
- Cable use
TV/monitor
- Cable design
Round
Copper
30 AWG
- Display resolution
7680 x 4320 Pixel
- Frame rate
60 Hz
- UKCA
yes
- Number of shielding layers
3
- HDCP
yes
- Cable diameter
7.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3379023 Delock DisplayPort Cable DisplayPort plug 2 m Black 85910 8K UHD, gold plated connectors, triple shielding DisplayPort c
Description
This certified display port cable from Delock serves to connect devices with DisplayPort interfaces, such as monitors, projectors or TV sets, to a PC or a notebook. By supporting a maximum bandwidth of 32.4 Gbps, you can playback content at up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution. The high-quality, triple shielded cable also significantly improves the quality of audio transmissions through the sampling rate of up to 1536 kHz.
Slim plug
Thanks to the lack of locking function the plugs are slightly slimmer than the conventional DisplayPort plug, as such several connections can be used simultaneously to save space. Moreover, the plugs of hard to reach DisplayPort sockets can be unplugged easily, e.g. on the back of a monitor.
This text is machine translated.
Slim plug
Thanks to the lack of locking function the plugs are slightly slimmer than the conventional DisplayPort plug, as such several connections can be used simultaneously to save space. Moreover, the plugs of hard to reach DisplayPort sockets can be unplugged easily, e.g. on the back of a monitor.
This text is machine translated.
Features
- Connections:
- 1 x DisplayPort connector >
- 1 x DisplayPort connector
- DisplayPort 1.4 specification
- Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
- DisplayPort® DP 8K certified cable
- Pin 20 is not connected
- Wire cross-section 30 AWG
- Cable diameter: Approx. 7.5 mm
- Copper wire
- Triple shielded cable
- Gold-plated contacts
- Transmission of audio and video signals
- Data transfer rate up to 32.4 Gbps
- Resolution up to:
- Monitor with DSC support:
- 7680 x 4320 @ 60 Hz
- 5120 x 2880 @ 120 Hz
- 3840 x 2160 @ 240 Hz
- Monitor without DSC support:
- 7680 x 4320 @ 30 Hz
- 5120 x 2880 @ 60 Hz
- 3840 x 2160 @ 120 Hz
- (Depending on the system and the connected hardware)
- Supports Display Stream Compression 1.2 (DSC)
- Supports HDR
- Supports HDCP 1.4 and 2.2
- Supports HBR3 (8.1 Gbps) data rate
- Up to 32 audio channels for speakers
- Up to 1536 kHz audio scanning rate
- Supports color sampling in the formats 4:4:4, 4:2:2 and 4:2:0
- Colour, black
- Length including connections: Approx. 2 m.
