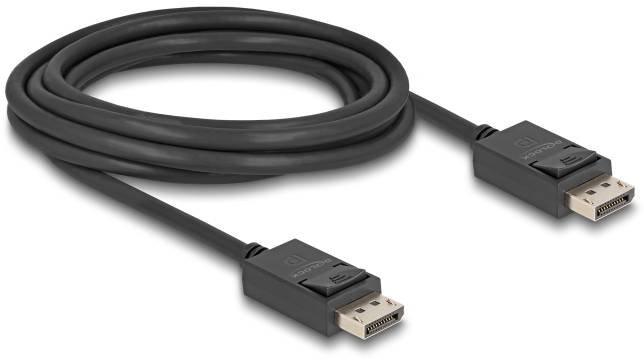

Delock DisplayPort Cable DisplayPort plug 3 m Black 80494 16K UHD, gold plated connectors, triple shielding DisplayPort
EAN:
Part number:
Item no:
Product type
DisplayPort cable
Connection type
DisplayPort
Version
Cable
Connection type
DisplayPort to DisplayPort
Connections
DisplayPort plug
Technical specifications
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Maximum resolution 15360 x 8640 pixel
- Data transfer rate 40 Gbps
- Product type
DisplayPort cable
- Connection type
DisplayPort
- Version
Cable
- Connection type
DisplayPort to DisplayPort
- Connections
DisplayPort plug
- DisplayPort version
DisplayPort 2.1
- Connector version
straight
- Video resolution
15360 × 8460 Pixel
- Max. frequency
120 Hz
- Cable length
3 m
- Factory colour
Black
- Cable features
16K UHD
gold plated connectors
triple shielding
- Signal flow
Unidirectional (A→B)
- Cable use
TV/monitor
- Cable design
Round
30 AWG Datenleitung
24 AWG Stromleitung
- Frame rate
120 Hz
- UKCA
yes
- Channels quantity
32 Kanäle
- Display Stream Compression (DSC)
yes
- HDCP
yes
- Cable diameter
7.8 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380563 Delock DisplayPort Cable DisplayPort plug 3 m Black 80494 16K UHD, gold plated connectors, triple shielding DisplayPort
Description
This display port cable by Delock is used to connect devices with DisplayPort interfaces, such as monitors, projectors or TV sets, to a PC or a notebook.
Ideal for gamers
By supporting a maximum bandwidth of 40 Gbps, content with a resolution of up to 16K @ 30 Hz can be played back, a picture refresh rate of up to 60 Hz is possible at a resolution of 8K, and up to 120 Hz at a 4K.
By the HDR10 support the colors are represented realistically with impressive depth, the brightness and the contrast of the picture are played back optimally.
Perfect sound
The high-quality, triple shielded cable also significantly improves the quality of audio transmissions through the sampling rate of up to 1536 kHz.
This text is machine translated.
Ideal for gamers
By supporting a maximum bandwidth of 40 Gbps, content with a resolution of up to 16K @ 30 Hz can be played back, a picture refresh rate of up to 60 Hz is possible at a resolution of 8K, and up to 120 Hz at a 4K.
By the HDR10 support the colors are represented realistically with impressive depth, the brightness and the contrast of the picture are played back optimally.
Perfect sound
The high-quality, triple shielded cable also significantly improves the quality of audio transmissions through the sampling rate of up to 1536 kHz.
This text is machine translated.
Features
- Connections:
- 2 x DisplayPort connector
- DisplayPort 2.1 specification
- Downwards compatible to DisplayPort 2.0, 1.4, 1.3, 1.2 and 1.1
- Pin 20 is not connected
- Wire cross-section:
- 30 AWG Data cable
- 24 AWG power line
- Cable diameter: Approx. 7.8 mm
- Triple shielded cable
- Gold-plated contacts
- Transmission of audio and video signals
- Data transfer rate up to 40 Gbps
- Resolution up to:
- 15360 x 8640 @ 30 Hz
- 7680 x 4320 @ 60 Hz
- 3840 x 2160 @ 120 Hz
- (Depending on the system and the connected hardware)
- Supports Display Stream Compression 1.2a (DSC)
- Supports HDR10
- Supports HDCP 1.4 and 2.3
- Supports UHBR 10 (10 Gbps/Lane) data transfer rate
- Up to 32 audio channels for speakers
- Up to 1536 kHz audio scanning rate
- Supports color sampling in the formats 4:4:4, 4:2:2 and 4:2:0
- Colour, black
- Length including connections: Approx. 3 m.
