Name: Delock DisplayPort / DVI Cable DisplayPort plug, DVI-D 24+1-pin plug 1 m Black 85312 gold plated connectors, twisted, tr
Brand: Delock
SKU: 3378863

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

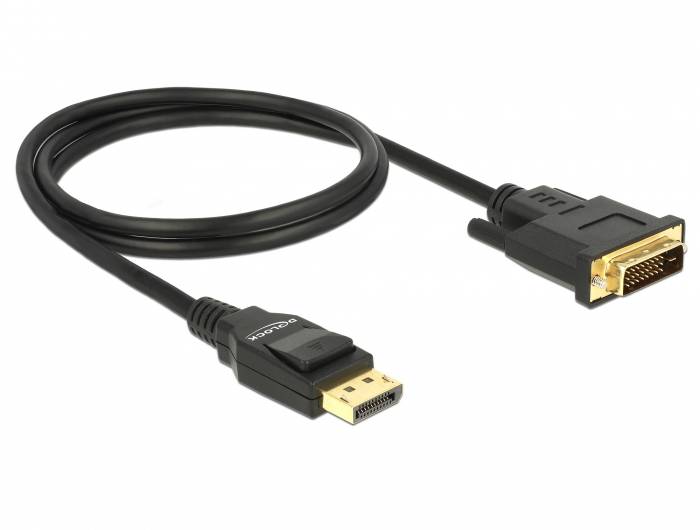

A black cable with a DisplayPort plug on one side and a DVI plug on the other, for video connections.

Black cable with a DisplayPort connector on one side and a DVI connector on the other, suitable for video connections.

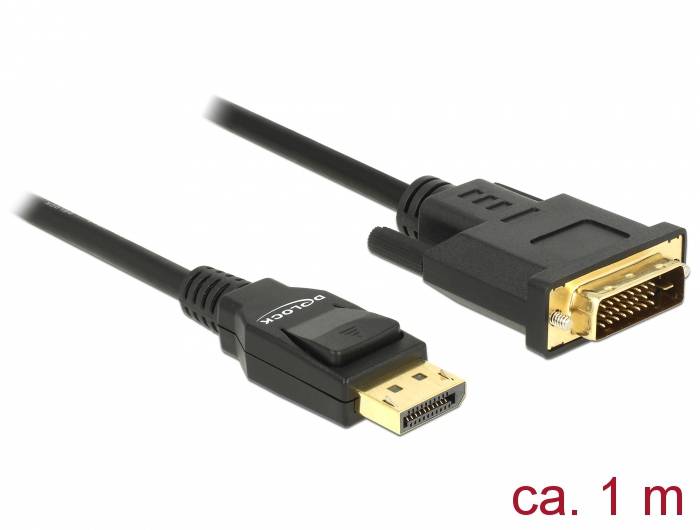

DisplayPort to DVI cable, approximately 1 metre long, showing connections on both ends. Suitable for monitor connections.

1/3

Product type

DisplayPort cable

Connection type

DisplayPort

DVI

Version

Cable

Connection type

DisplayPort to DVI 24+1-pin

Connections

DisplayPort plug

DVI-D 24+1-pin plug

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Connection1 Form factor: Straight
Connection2 Form factor: Straight
Data transfer rate 3.96 Gbps

Product type: DisplayPort cable

Connection type: DisplayPort
DVI

Version: Cable

Connection type: DisplayPort to DVI 24+1-pin

Connections: DisplayPort plug
DVI-D 24+1-pin plug

DisplayPort version: DisplayPort 1.2

Connector version: straight

Cable version: DVI-D Dual Link

Video resolution: 3840 x 2160 Pixel

Max. frequency: 30 Hz

Cable length: 1 m

Factory colour: Black

Cable features: gold plated connectors
twisted
triple shielding
4K UHD

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

Cable design: Round

: Copper

: 30 AWG

Display resolution: 3840 x 2160 Pixel

UKCA: yes

Cable diameter: 6 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3378863 Delock DisplayPort / DVI Cable DisplayPort plug, DVI-D 24+1-pin plug 1 m Black 85312 gold plated connectors, twisted, tr

Description

This cable from Delock is used to connect devices such as a monitor with DVI connector to a DisplayPort interface.

This text is machine translated.

Features

Connections:
1 x DisplayPort connector >
1 x DVI 24+1 plug with screws
Parade PS8402A chipset
DVI-D (Dual link), VGA not connected
DisplayPort 1.2a specification
Passive cable (level shifter), only suitable for graphics cards with DP++ output
Signal direction: DisplayPort input > DVI output
Wire cross-section 30 AWG
Cable diameter: Approx. 6 mm
Cable line: Twisted
Copper wire
Gold-plated contacts
Triple shielded cable
Data transfer rate of up to 10.2 GB/s.
Resolution up to 3840 x 2160 @ 30 Hz
(Depending on the system and the connected hardware)
Colour, black
Length without connections: Approx. 1 m.

Description

This cable from Delock is used to connect devices such as a monitor with DVI connector to a DisplayPort interface.

This text is machine translated.

Features

Connections:
1 x DisplayPort connector >
1 x DVI 24+1 plug with screws
Parade PS8402A chipset
DVI-D (Dual link), VGA not connected
DisplayPort 1.2a specification
Passive cable (level shifter), only suitable for graphics cards with DP++ output
Signal direction: DisplayPort input > DVI output
Wire cross-section 30 AWG
Cable diameter: Approx. 6 mm
Cable line: Twisted
Copper wire
Gold-plated contacts
Triple shielded cable
Data transfer rate of up to 10.2 GB/s.
Resolution up to 3840 x 2160 @ 30 Hz
(Depending on the system and the connected hardware)
Colour, black
Length without connections: Approx. 1 m.
