1/3
Delock DisplayPort / HDMI Cable DisplayPort socket, HDMI-A socket 0.2 m Black 62735 4K UHD DisplayPort cable
EAN:
Part number:
Item no:
Product type
DisplayPort cable
Connection type
DisplayPort
HDMI
Version
Cable
Connection type
DisplayPort to HDMI-A
Connections
DisplayPort socket
HDMI-A socket
Technical specifications
- Connection 1: Mini DisplayPort
- Connection 2: HDMI type A (standard)
- Product type
DisplayPort cable
- Connection type
DisplayPort
HDMI
- Version
Cable
- Connection type
DisplayPort to HDMI-A
- Connections
DisplayPort socket
HDMI-A socket
- Connector version
straight
- Resolutions (max.)
UHD 4K @ 60 Hz
- Video resolution
4096 x 2160 Pixel
- Max. frequency
60 Hz
- Cable length
0.2 m
- Factory colour
Black
- Cable features
4K UHD
- Signal flow
Unidirectional (A→B)
- Cable use
TV/monitor
- Cable design
Round
- Display resolution
4096 x 2160 Pixel
- Frame rate
60 Hz
- UKCA
yes
- Plug and Play
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378708 Delock DisplayPort / HDMI Cable DisplayPort socket, HDMI-A socket 0.2 m Black 62735 4K UHD DisplayPort cable
Description

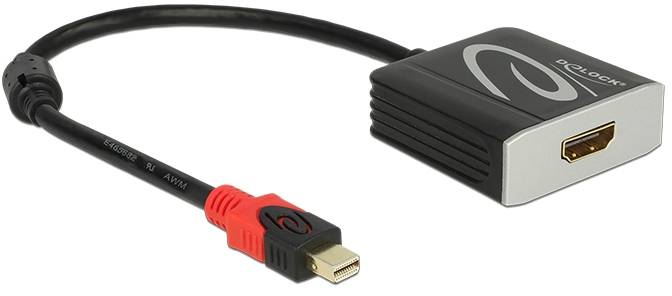

With this adapter from Delock you can connect a HDMI monitor to a system via a free mini DisplayPort interface. The adapter supports a resolution of up to 4K Ultra HD at 60 Hz and is backward compatible with Full-HD 1080p. The adapter offers an active conversion, so it is also suitable for graphics cards, which cannot output any DP++ signals.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x mini DisplayPort 20-pin plug >
- 1 x HDMI-A 19-pin socket
- Parade PS176 chipset
- DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
- Active converter for graphics cards with DP and DP++ output
- Resolution up to 4096 x 2160 @ 60 Hz (depending on the system and the connected hardware)
- Transmission of audio and video signals
- Supports 3D Displays
- Supports HDCP 1.4 and 2.2
- Supports Eyefinity
- Supports HBR2 (5.4 Gbps) data rate
- Audio formats: 8-channel LPCM, compressed audio and HBR audio formats up to 24 bit resolution with a sampling rate of up to 192 kHz
- Connections: Gold-plated
- 1 x ferrite core
- Cable length without connections: Approx. 20 cm
- Colour, black
- OS independent, no driver installation required
