Name: Delock DisplayPort / USB Cable USB-C® plug, DisplayPort plug 2 m Black 83710 gold plated connectors, 4K UHD USB-C cable
Brand: Delock
SKU: 3379077

A black Delock USB-C to HDMI cable with a braided design. The USB-C plug is located at the left end, with the HDMI plug at the right end.

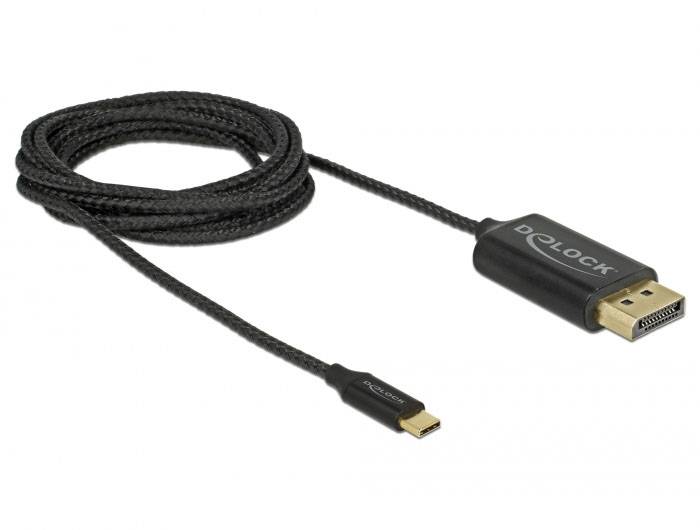

A black DisplayPort to USB-C cable by Delock, suitable for computer connections, shows both ends: USB-C plug on the left, DisplayPort plug on the right.

1/3

Product type

USB-C cable

Connection type

DisplayPort

USB

Version

Cable

Connection type

USB-C® to DisplayPort

Connections

USB-C® plug

DisplayPort plug

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Connection1 Form factor: Straight
Connection2 Form factor: Straight
Power source USB
Connection 1 USB Type-C

Product type: USB-C cable

Connection type: DisplayPort
USB

Version: Cable

Connection type: USB-C® to DisplayPort

Connections: USB-C® plug
DisplayPort plug

DisplayPort version: DisplayPort 1.2

Connector version: straight

Resolutions (max.): UHD 4K @ 60 Hz

Video resolution: 3840 x 2160 Pixel

Max. frequency: 60 Hz

Cable length: 2 m

Factory colour: Black

Cable features: gold plated connectors
4K UHD

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

Cable design: Round

Display resolution: 3840 x 2160 Pixel

Supported OS: Android

UKCA: yes

Quantity per pack: 1 Stück(e)

HDCP: yes

Cable diameter: 3.7 mm

3D: yes

Plug and Play: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3379077 Delock DisplayPort / USB Cable USB-C® plug, DisplayPort plug 2 m Black 83710 gold plated connectors, 4K UHD USB-C cable

Description

This cable from Delock allows a DisplayPort monitor to be connected to a USB-C or Thunderbolt™ 3 interface device, such as a MacBook or Chromebook. The interface must support DisplayPort Alternate Mode. The coaxial cable is very flexible and due to its small diameter is easy to handle.

This text is machine translated.

Features

Connections:
1 x USB Type-C™ connector >
1 x DisplayPort 20-pin plug
Atmel. Chipset
DisplayPort 1.2 specification
Signal direction: USB Type-C™ input > DisplayPort output
Cable type: Coaxial
Cable diameter: Approx. 3.7 mm
Metal housing
Gold-plated contacts
With nylon braiding
Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected one
Hardware)
Transmission of audio and video signals
Supports 3D Displays
Supports HDCP 1.4
USB bus Power
Plug & Play
Colour, black
Length including connections (L): Approx. 2 m.

Description

Features

Connections:
1 x USB Type-C™ connector >
1 x DisplayPort 20-pin plug
Atmel. Chipset
DisplayPort 1.2 specification
Signal direction: USB Type-C™ input > DisplayPort output
Cable type: Coaxial
Cable diameter: Approx. 3.7 mm
Metal housing
Gold-plated contacts
With nylon braiding
Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected one
Hardware)
Transmission of audio and video signals
Supports 3D Displays
Supports HDCP 1.4
USB bus Power
Plug & Play
Colour, black
Length including connections (L): Approx. 2 m.
