Delock FO connector 87947 FO connector Bag
EAN:
Part number:
Item no:
Packaging type
Bag
Product type
FO connector
Enclosure material
Metal
Plastic
Functions (FO)
FO connector
Manufacturer
Delock
Datasheet (PDF)
Technical specifications
- Packaging type
Bag
- Product type
FO connector
- Manufacturer
Delock
- Enclosure material
Metal
Plastic
- Functions (FO)
FO connector
- Factory colour
Black
Blue
- Operating temperature (max.)
80 °C
- Width
35.3 mm
- Height
9.6 mm
- Length
70 mm
- Manufacturer part #
87947
- Content
1 pc(s)
- Cable design
Round
- Version
Cable
- Depth
70 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Number of connectors
2
Documents & Downloads
Datasheet
Datasheet 3382052 Delock FO connector 87947 FO connector Bag
User & Safety Instructions
User & Safety Instructions 3382052 Delock FO connector 87947 FO connector Bag
Description

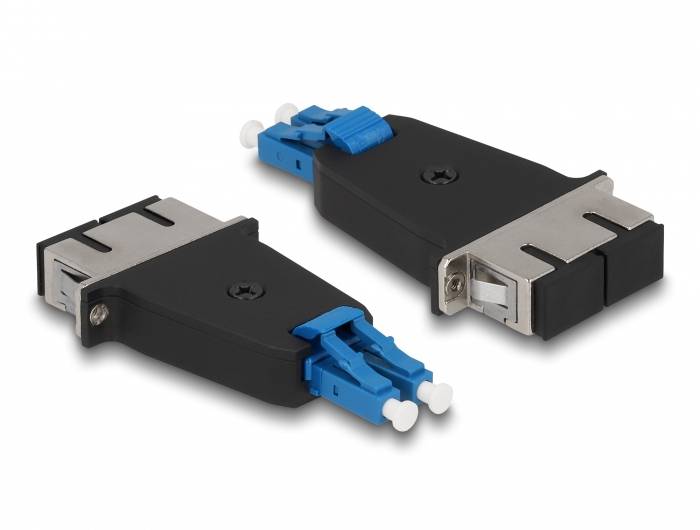

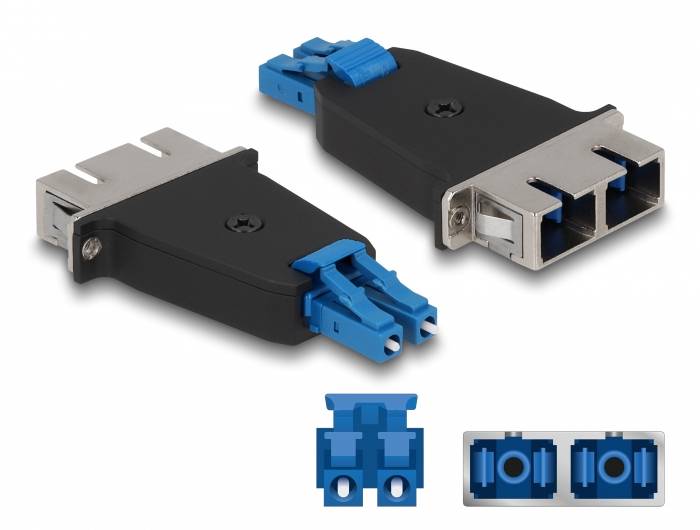

This LC duplex to SC duplex hybrid coupling from Delock enables the changeover from one plug type to another. This makes it easy to connect LC and SC glass fiber cables to each other and makes them suitable for mounting in fiber optic cable, junction boxes and patch fields.
Protection through dust cover
The coupling is fitted with an appropriate cap to protect the sleeve from dust and keep it clean.
This text is machine translated.
Protection through dust cover
The coupling is fitted with an appropriate cap to protect the sleeve from dust and keep it clean.
This text is machine translated.
Features
- Connections:
- 1 x LC duplex plug
- 1 x SC duplex bushing
- Insertion loss < 0.3 dB
- Return loss 60 dB
- Ceramic sleeve
- With dirt protection cover
- Fastening via metal bracket or with screws
- 2 x mounting holes
- Mounting hole diameter: Approx. 2.3 mm
- Hole spacing: Approx. 18 mm
- Operating temperature: -40 °C ~ 80 °C
- Colour: Blue / black
- Material: Plastic / metal
- Dim. (LxWxH): Approx. 70.0 x 35.3 x 9.6 mm
System requirements
- A free LC duplex socket
A free SC duplex plug
