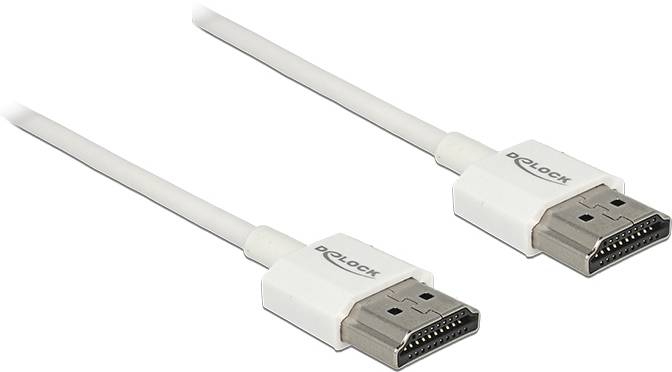

Name: Delock HDMI Cable HDMI-A plug 2 m White 85137 gold plated connectors, 4K UHD, twisted, triple shielding HDMI cable
Brand: Delock
SKU: 3378804

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

White DisplayPort cable from Delock with two plugs at the ends. Suitable for connecting monitors to computers.

Two white DisplayPort cables by DeLock, each with a plug at each end, suitable for transmitting audio and video signals.

1/2

Product type

HDMI cable

Connection type

HDMI

Version

Cable

Connection type

HDMI-A to HDMI-A

Connections

HDMI-A plug

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Connection 1: HDMI type A (standard)
Connection 2: HDMI type A (standard)
Connection1 Form factor: Straight
Connection2 Form factor: Straight
Data transfer rate 18 Gbps

Product type: HDMI cable

Connection type: HDMI

Version: Cable

Connection type: HDMI-A to HDMI-A

Connections: HDMI-A plug

Connector version: straight

Cable version: HDMI High Speed + Ethernet

Resolutions (max.): UHD 4K @ 60 Hz

Video resolution: 3840 x 2160 Pixel

Max. frequency: 60 Hz

Cable length: 2 m

Factory colour: White

Cable features: gold plated connectors
4K UHD
twisted
triple shielding

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

Cable design: Round

: Copper

: 36 AWG

Display resolution: 3840 x 2160 Pixel

Frame rate: 120 Hz

Weight: 0.039

UKCA: yes

HDMI Ethernet channel: yes

Quantity per pack: 1 Stück(e)

Cable diameter: 3.2 mm

3D: yes

Audio Return Channel (ARC): yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3378804 Delock HDMI Cable HDMI-A plug 2 m White 85137 gold plated connectors, 4K UHD, twisted, triple shielding HDMI cable

Description

The high-quality high-speed HDMI with Ethernet cable from Delock is characterized especially by its small diameter and the short plugs. The triple-shielded cable combines fast data transfer and audio/video and Ethernet connection in one. It supports a maximum bandwidth of 18 GB/s and displays 4K resolution (maximum frame rate 60 Hz), 4K resolution 3D content (maximum frame rate 30 Hz) and 21:9 cinema image format content. The cable enables the simultaneous transmission of two video channels to display video streams for two users on one screen, as well as the simultaneous transmission of up to four audio channels. The quality of audio transmission is significantly improved by the sampling rate of up to 1536 kHz.

This text is machine translated.

Features

Connections:
1 x high speed HDMI-A 19-pin plug >
1 x high speed HDMI-A 19-pin plug
High Speed HDMI with Ethernet (HEC) specification
Wire cross-section 36 AWG
Cable diameter: Approx. 3.2 mm
Cable line: Twisted
Copper wire
Contacts with gold plating
Triple shielded cable
Metal housing
Transmission of audio and video signals
Data transfer rate of up to 18 GB/s.
Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected one
Hardware)
3D support: Up to 1920 x 1080 @ 60 Hz; 3840 x 2160 @ 30 Hz (dependent on
System and the connected hardware)
Supports the 21:9 cinema picture format
Supports 1080p HFR (High Frame Rate) 3D
Up to 120 Hz picture repetition rate
Supports the transmission of 2 video channels at the same time, in order to have a screen for
To use two viewers
Supports color sampling in the format 4:2:0 (original format of Blu-ray, DVD and TV)
Includes audio return channel (ARC)
Up to 32 audio channels for speakers
Up to 1536 kHz audio scanning rate
Supports the transmission of up to 4 audio channels simultaneously
Supports the dynamic adjustment of lip synchronicity in image/
Sound delays
Supports CEC 2.0 control commands
Uses new extended color spaces to present digital photos
Supports Dolby® TrueHD and DTS-HD Master Audio™
For more lively and natural colors
Colour: white
Cable length approx. 2 m
