Name: Delock HDMI Cable HDMI-A socket, HDMI-Micro-D plug 0.23 m Black 65687 gold plated connectors, 4K UHD HDMI cable
Brand: Delock
SKU: 3378691

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

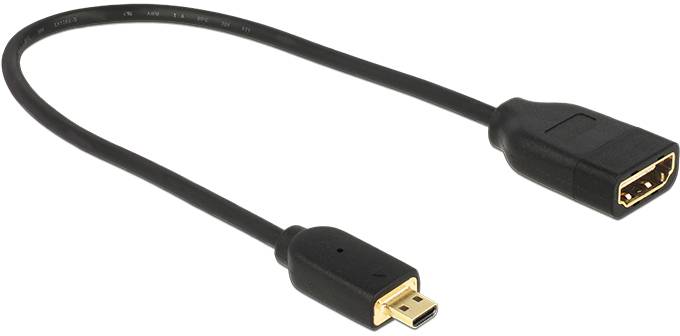

A black HDMI to Micro-HDMI cable adapter that enables a connection between an HDMI port and a Micro-HDMI port.

A black cable adapter with an HDMI socket at one end and a micro-HDMI plug at the other end against a white background.

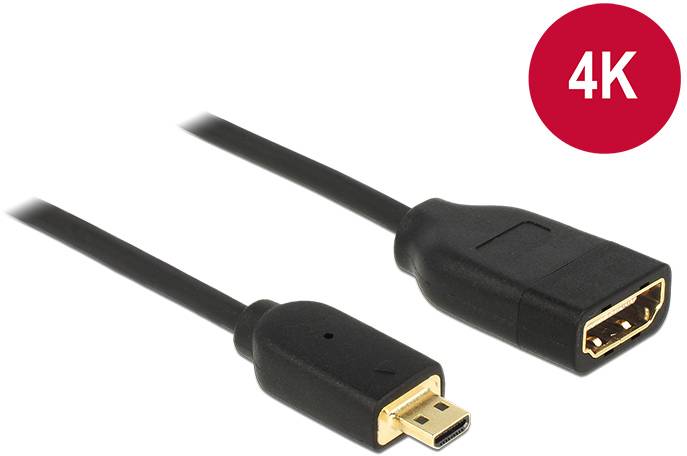

'HDMI cable with mini and standard connectors, supports 4K transmission.'

1/3

Product type

HDMI cable

Connection type

HDMI

Version

Cable

Connection type

HDMI-A to HDMI-Micro-D

Connections

HDMI-A socket

HDMI-Micro-D plug

Unavailable

22 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Connection 1: HDMI Type D (microphone)
Connection 2: HDMI type A (standard)
Connection1 Form factor: Straight
Connection2 Form factor: Straight
Data transfer rate 18 Gbps

Product type: HDMI cable

Connection type: HDMI

Version: Cable

Connection type: HDMI-A to HDMI-Micro-D

Connections: HDMI-A socket
HDMI-Micro-D plug

Connector version: straight

Cable version: HDMI High Speed + Ethernet

Resolutions (max.): UHD 4K @ 60 Hz

Video resolution: 3840 x 2160 Pixel

Max. frequency: 60 Hz

Cable length: 0.23 m

Factory colour: Black

Cable features: gold plated connectors
4K UHD

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

Cable design: Round

: 36 AWG

Display resolution: 3840 x 2160 Pixel

Weight: 0.010

UKCA: yes

HDMI Ethernet channel: yes

Quantity per pack: 1 Stück(e)

Cable diameter: 3.2 mm

3D: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3378691 Delock HDMI Cable HDMI-A socket, HDMI-Micro-D plug 0.23 m Black 65687 gold plated connectors, 4K UHD HDMI cable

Description

This high-speed HDMI cable with Delock Ethernet with HDMI micro-D connection is used for the transmission of data such as videos, images etc. This allows e.g. the HDMI Micro-D interface of the smart phone to be converted into an HDMI-A port. The short cable places less load on device connection than on an adapter without a cable.

This text is machine translated.

Features

Connections:
High Speed HDMI Micro-D 19 Pin Plug >
High Speed HDMI-A 19 Pin socket
High Speed HDMI with Ethernet (HEC) specification
Wire cross-section 36 AWG
Cable diameter: Approx. 3.2 mm
Contacts with gold plating
Transmission of audio and video signals
Data transfer rate of up to 18 GB/s.
Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected one
Hardware)
3D support: Up to 1920 x 1080 @ 60 Hz; 3840 x 2160 @ 30 Hz (dependent on
System and the connected hardware)
Colour, black
Length including connections: Approx. 23 cm

Description

Features

Connections:
High Speed HDMI Micro-D 19 Pin Plug >
High Speed HDMI-A 19 Pin socket
High Speed HDMI with Ethernet (HEC) specification
Wire cross-section 36 AWG
Cable diameter: Approx. 3.2 mm
Contacts with gold plating
Transmission of audio and video signals
Data transfer rate of up to 18 GB/s.
Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected one
Hardware)
3D support: Up to 1920 x 1080 @ 60 Hz; 3840 x 2160 @ 30 Hz (dependent on
System and the connected hardware)
Colour, black
Length including connections: Approx. 23 cm
