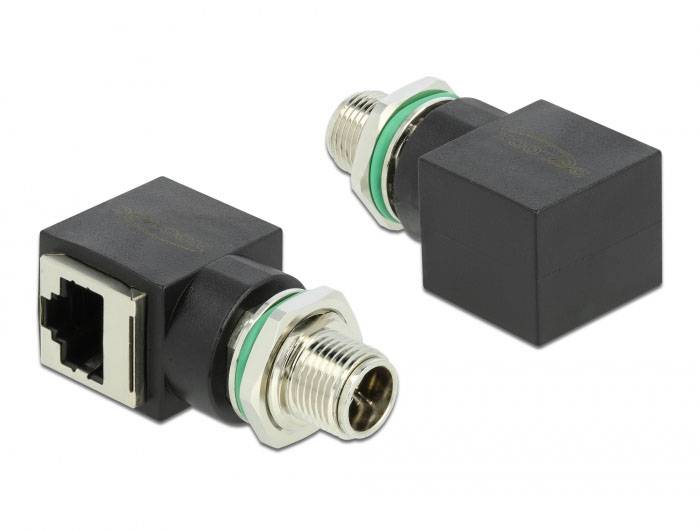

Delock M12 / RJ45 Networks Adapter Cable [1x M12 plug - 1x RJ45 socket] Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Network adapter M12 8 pin X-coded plug to RJ45 socket
Highlights & Details
- Cable connected
- Ethernet
- 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 10000 Mbit/s 10GBASE-T
Technical specifications
- Interface: Ethernet
- Product type
Networks Adapter
Cable
- Connection type
M12
RJ45
- No. of A connectors
1 x
- Type A
M12 plug
- No. of B connections
1 x
- Type B
RJ45 socket
- Factory colour
Black
- Connector version
straight
- Cable use
Networks
- Version
Adapter
- Cable design
Round
- Depth
47 mm
- Height
25 mm
- Width
19.6 mm
- Output voltage
48 V
- 10/100/1000 Mbps ports
1 x
- UKCA
yes
- Operating temperature (T-T)
-25 - 85 °C
- Maximum data transfer rate
10000 Mbit/s
- Ethernet LAN
yes
- Internal
no
- Power consumption
500 mA
Documents & Downloads
Datasheet
Datasheet 3381641 Delock M12 / RJ45 Networks Adapter Cable [1x M12 plug - 1x RJ45 socket] Black
User & Safety Instructions
User & Safety Instructions 3381641 Delock M12 / RJ45 Networks Adapter Cable [1x M12 plug - 1x RJ45 socket] Black
Description
This Delock industrial Ethernet adapter can be used to connect various components to M12 connectors, e.g. for machine control or automation.
Mounted in switch cabinet
The adapter is ideal for installation in a switch cabinet due to its compact dimensions. In this way, devices with M12 connector can be integrated into an existing network structure.
This text is machine translated.
Mounted in switch cabinet
The adapter is ideal for installation in a switch cabinet due to its compact dimensions. In this way, devices with M12 connector can be integrated into an existing network structure.
This text is machine translated.
Features
- Connections:

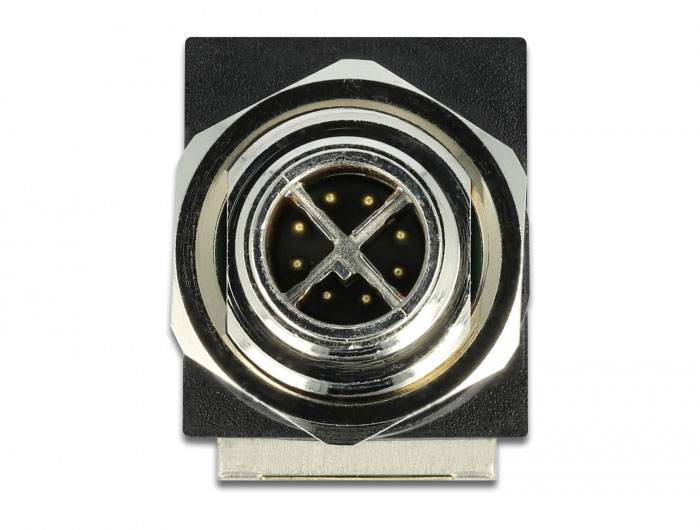

- 1 x M12 connector 8 pin X-coded
- 1 x RJ45 sockets
- CAT.6A specification
- Housing material: PUR (TPU)
- M16 outer thread
- Gold-plated contacts
- Operating voltage max. 48 V
- Current strength max. 500 mA
- Operating temperature: -25 °C - 85 °C
- Protection class IP67
- Colour, black
- Dim. (LxWxH): Approx. 47.0 x 19.6 x 25.0 mm
Hints
Please check the adapter pin layout. Depending on use, required pin layouts may differ.
System requirements
- A free M12 socket
A free RJ45 plug
