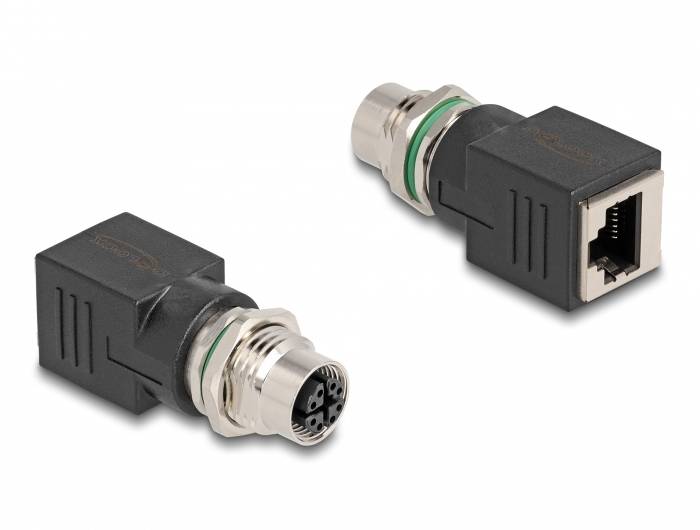

Delock M12 / RJ45 Networks Adapter Cable [1x M12 socket - 1x RJ45 socket] Black
EAN:
Part number:
Item no:
Datasheet (PDF)
M12 adapter X-coded 8 pin socket to RJ45 socket straight
Highlights & Details
- M12 Straight Female
- RJ-45 Straight Female
- Coating plug contacts: Gold
- Housing material: Thermoplastic urethane (TPU)
- Black
- 1 pieces(s)
Technical specifications
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Product type
Networks Adapter
Cable
- Connection type
M12
RJ45
- No. of A connectors
1 x
- Type A
M12 socket
- No. of B connections
1 x
- Type B
RJ45 socket
- Factory colour
Black
- Cable use
Networks
- Version
Adapter
- Cable design
Round
- Depth
47 mm
- Height
25 mm
- Width
19.6 mm
- UKCA
yes
- Operating temperature (T-T)
-25 - 85 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382937 Delock M12 / RJ45 Networks Adapter Cable [1x M12 socket - 1x RJ45 socket] Black
User & Safety Instructions
User & Safety Instructions 3382937 Delock M12 / RJ45 Networks Adapter Cable [1x M12 socket - 1x RJ45 socket] Black
Description
This Delock industrial Ethernet adapter can be used to connect various components to M12 connectors, e.g. for machine control or automation. The adapter is ideal for installation in a switch cabinet due to its compact dimensions. In this way, devices with M12 connector can be integrated into an existing network structure.
This text is machine translated.
This text is machine translated.
Features
- Connections:

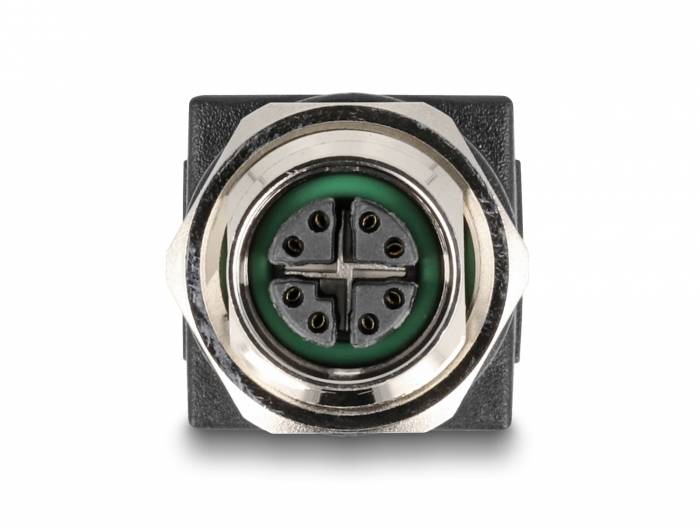

- 1 x M12 socket 8 pin X-coded
- 1 x RJ45 sockets
- CAT.6A specification
- Housing material: PUR (TPU)
- M16 outer thread
- Gold-plated contacts
- Operating voltage max. 50 V
- Current strength max. 500 mA
- Operating temperature: -25 °C - 85 °C
- Protection class IP67 (M12)
- Colour, black
- Dim. (LxWxH): Approx. 47.0 x 19.6 x 25.0 mm
Hints
Please check the adapter pin layout. Depending on use, required pin layouts may differ.
System requirements
- A free M12 plug
A free RJ45 plug
