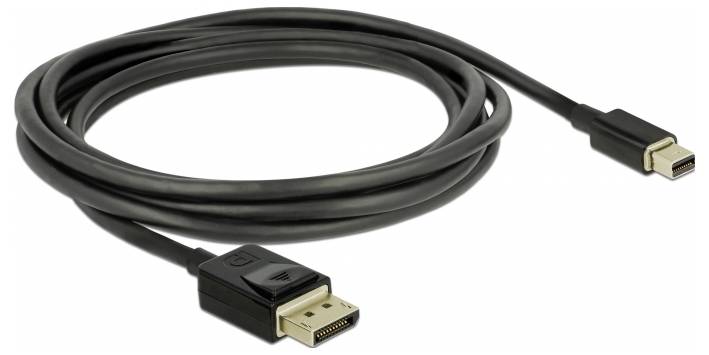

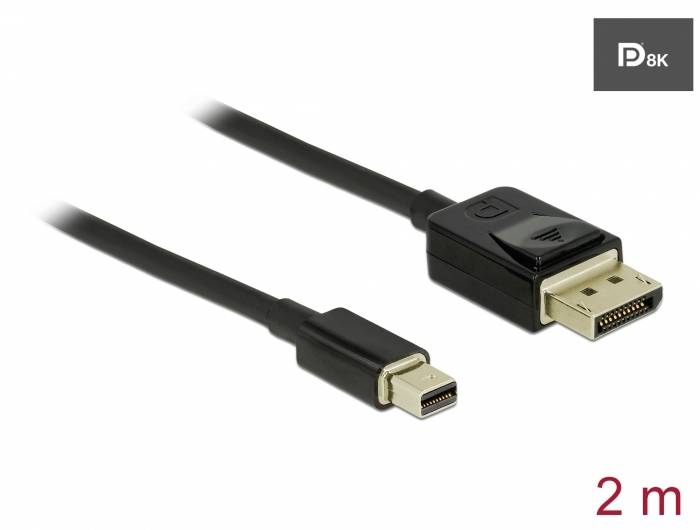

Delock Mini DisplayPort / DisplayPort Cable Mini DisplayPort plug, DisplayPort plug 2 m Black 84928 gold plated connecto

Description
This certified display port cable from Delock serves to connect devices with DisplayPort interfaces, such as monitors, projectors or TV sets, to a PC or a notebook with mini DisplayPort interface. It supports a maximum bandwidth of 32.4 GB/s and displays 8K Ultra HD (7680 x 4320 @ 60 Hz) or 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz) resolution. The high-quality, triple shielded cable also significantly improves the quality of audio transmissions through the sampling rate of up to 1536 kHz.

Technical data
Connections:
1 x mini DisplayPort 20-pin plug >
1 x DisplayPort 20-pin plug
DisplayPort 1.4 specification
Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
DisplayPort® DP 8K certified cable
Pin 20 not connected
Wire cross-section 34 AWG
Cable diameter: Approx. 4.5 mm
Copper wire
Triple shielded cable
Gold-plated contacts
Transmission of audio and video signals
Data transfer rate of up to 32.4 GB/s.
Resolution up to:
Monitor with DSC support:
7680 x 4320 @ 60 Hz
5120 x 2880 @ 120 Hz
3840 x 2160 @ 240 Hz
Monitor without DSC support:
7680 x 4320 @ 30 Hz
5120 x 2880 @ 60 Hz
3840 x 2160 @ 120 Hz
(Depending on the system and the connected hardware)
Supports Display Stream Compression 1.2 (DSC)
Supports HDR
Supports HDCP 1.4 and 2.2
Supports HBR3 (8.1 GB/s) data transfer rate
Up to 32 audio channels for speakers
Up to 1536 kHz audio scanning rate
Supports color sampling in the formats 4:4:4, 4:2:2 and 4:2:0
Colour, black

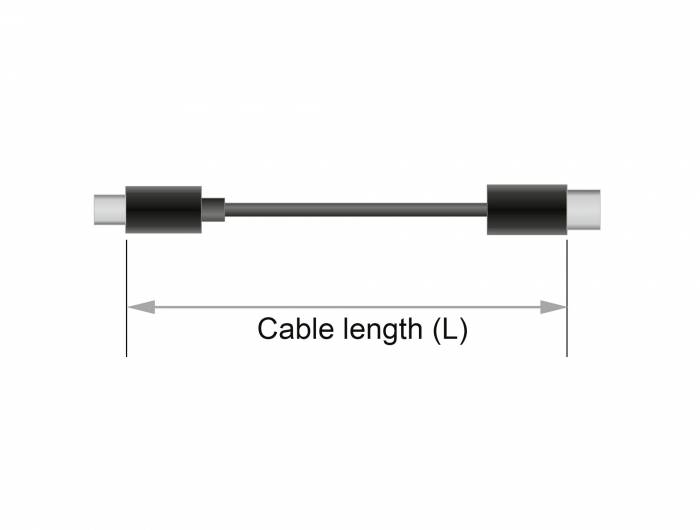

Length including connections (L): Approx. 2 m.

System requirements
A free mini DisplayPort interface

Package contents
Mini DisplayPort to DisplayPort cable

Packaging
Retail box

This text is machine translated.
