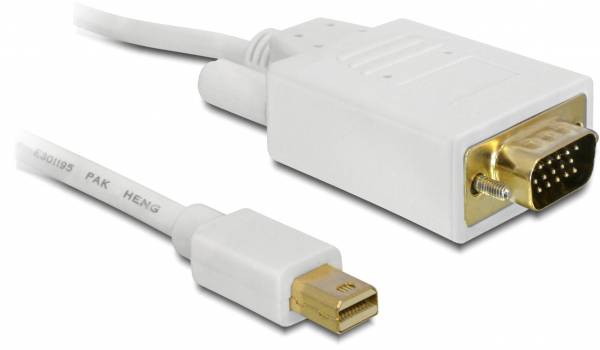

Delock Mini DisplayPort / VGA Cable Mini DisplayPort plug, VGA 15-pin plug 3 m White 82922 gold plated connectors Displa
EAN:
Part number:
Item no:
Product type
DisplayPort cable
Connection type
Mini DisplayPort
VGA
Version
Cable
Connection type
Mini DisplayPort to VGA
Connections
Mini DisplayPort plug
VGA 15-pin plug
Technical specifications
- Connection 1: VGA (D-Sub)
- Connection 2: Mini DisplayPort
- Product type
DisplayPort cable
- Connection type
Mini DisplayPort
VGA
- Version
Cable
- Connection type
Mini DisplayPort to VGA
- Connections
Mini DisplayPort plug
VGA 15-pin plug
- DisplayPort version
DisplayPort 1.1
- Connector version
straight
- Cable version
VGA
- Resolutions (max.)
Full HD 1080p @ 60 Hz
- Video resolution
1920 x 1200 Pixel
- Max. frequency
60 Hz
- Cable length
3 m
- Factory colour
White
- Cable features
gold plated connectors
- Signal flow
Unidirectional (A→B)
- Cable use
TV/monitor
- Cable design
Round
32 AWG
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378378 Delock Mini DisplayPort / VGA Cable Mini DisplayPort plug, VGA 15-pin plug 3 m White 82922 gold plated connectors Displa
Description
With this mini DisplayPort cable of Delock you can connect another VGA device, like e.g. monitor to your MacBook, MacBook Pro or also MacBook Air.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x mini DisplayPort connector >
- 1 x VGA plug
- Analogix ANX9832 chipset
- VGA connection with screws
- DisplayPort 1.1a Specification
- Signal direction: Mini DisplayPort input > VGA output
- Wire cross-section 32 AWG
- Cable diameter: Approx. 5.5 mm
- Gold-plated contacts
- Resolution up to 1920 x 1200 @ 60 Hz
- (Depending on the system and the connected hardware)
- Colour: white
- Length including connections: Approx. 3 m.
