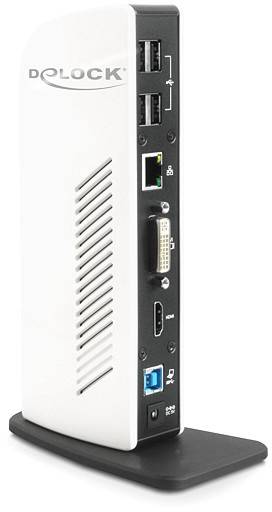

Delock Port replicator 87568
EAN:
Part number:
Item no:
Delock 87568 Port replicator
Highlights & Details
- Connection A (or inputs): 2x USB-A
- Connecton B (or outputs): Jack socket 3.5 mm, USB-B socket, HDMI®, DVI, LAN (10/100/1000 Mbps), USB 2.0
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Product type
Port replicator
- Type A
2x USB-A
- Type B
Jack socket 3.5 mm
USB-B socket
HDMI®
DVI
LAN (10/100/1000 Mbps)
USB 2.0
- Interfaces
2x USB 3.2 2nd Gen (USB 3.1)
1x 2.5 mm headphone jack
1x USB
1x HDMI
1x DVI
1x LAN (10/100/1000 Mbps)
4x USB 2.0
- Cable length
0 cm
- Factory colour
Black
White
- Weight
0.86
- Cable design
Round
- Version
Cable
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Cable use
C13/C14 appliances
- 10/100/1000 Mbps ports
1 x
- UKCA
yes
- MIDI/Joystick port
no
- Ethernet LAN
yes
- Remote control included
no
- USB 2.0 ports quantity
4
- Headphone outputs
1
- Microphone in
yes
- S/PDIF out port
no
- DC-in jack
yes
- Built-in speaker(s)
no
- DVI-I ports quantity
1
- Card reader integrated
no
- Manual
yes
- Built-in HDD
no
- Optical drive included
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380363 Delock Port replicator 87568
Description
You can connect this Delock port replicator to your computer via a single USB port and extend it with various interfaces such as USB, audio, Gigabit Ethernet, DVI and HDMI. You can connect two additional monitors to the DVI and HDMI port. The port replicator supports HD resolution of up to 2048 x 1152. Owing to the DisplayLink Graphic Chipsets it is possible to use mirrored and extended screen functions under Windows and Mac OS operating systems.
This text is machine translated.
This text is machine translated.
Features
- Connections:

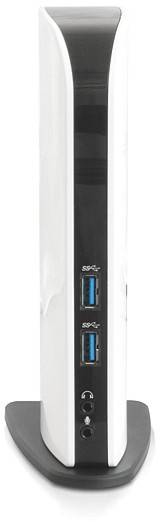

- Front side:
- 2 x USB 5 Gbps Type-A socket
- 1 x microphone 3.5 mm jack
- 1 x Loudspeaker 3.5 mm jack

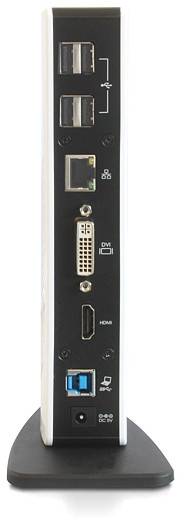

- Rear:
- 1 x USB 5 Gbps type B downstream port
- 1 x DC 5 V power connection
- 1 x HDMI socket
- 1 x DVI-I (Dual link) 24+5 socket
- 1 x Gigabit LAN 10/100/1000 Mbps RJ45 socket
- 4 x USB 2.0 type A socket
- HDMI and DVI ports support: Extend and mirror, with a resolution of up to 2048 x 1152 (depending on monitor and available graphics card)
- Hot Plug
System requirements
- Mac Lion 10.7.4 or later
Windows XP/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11
PC or notebook with a free USB type A port
1.6 GHz CPU or higher
At least 30 MB of free hard disk space
