Delock RJ50 Networks Adapter [1x RJ50 socket - 1x Socket] 0 mm Green, Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Sustainability Compliance: Yes
- Product type
Networks Adapter
- Connection type
RJ50
- No. of A connectors
1 x
- Type A
RJ50 socket
- No. of B connections
1 x
- Type B
Socket
- Cable length
0 mm
- Factory colour
Green
Grey
- Connector version
angled
- Cable use
Networks
- Version
Adapter
- Cable design
Round
- Depth
60 mm
- Height
18 mm
- Width
53 mm
- UKCA
yes
- Cable section (AWG)
24 - 12
- Operating temperature (T-T)
-40 - 100 °C
- Pitch distance
3.81 mm
Documents & Downloads
Datasheet
Datasheet 3382001 Delock RJ50 Networks Adapter [1x RJ50 socket - 1x Socket] 0 mm Green, Grey
User & Safety Instructions
User & Safety Instructions 3382001 Delock RJ50 Networks Adapter [1x RJ50 socket - 1x Socket] 0 mm Green, Grey
Description
This adapter of Delock can be used to connect Diverser control and measuring devices. Via the terminal block, stranded wires with stripped ends are connected without tools.

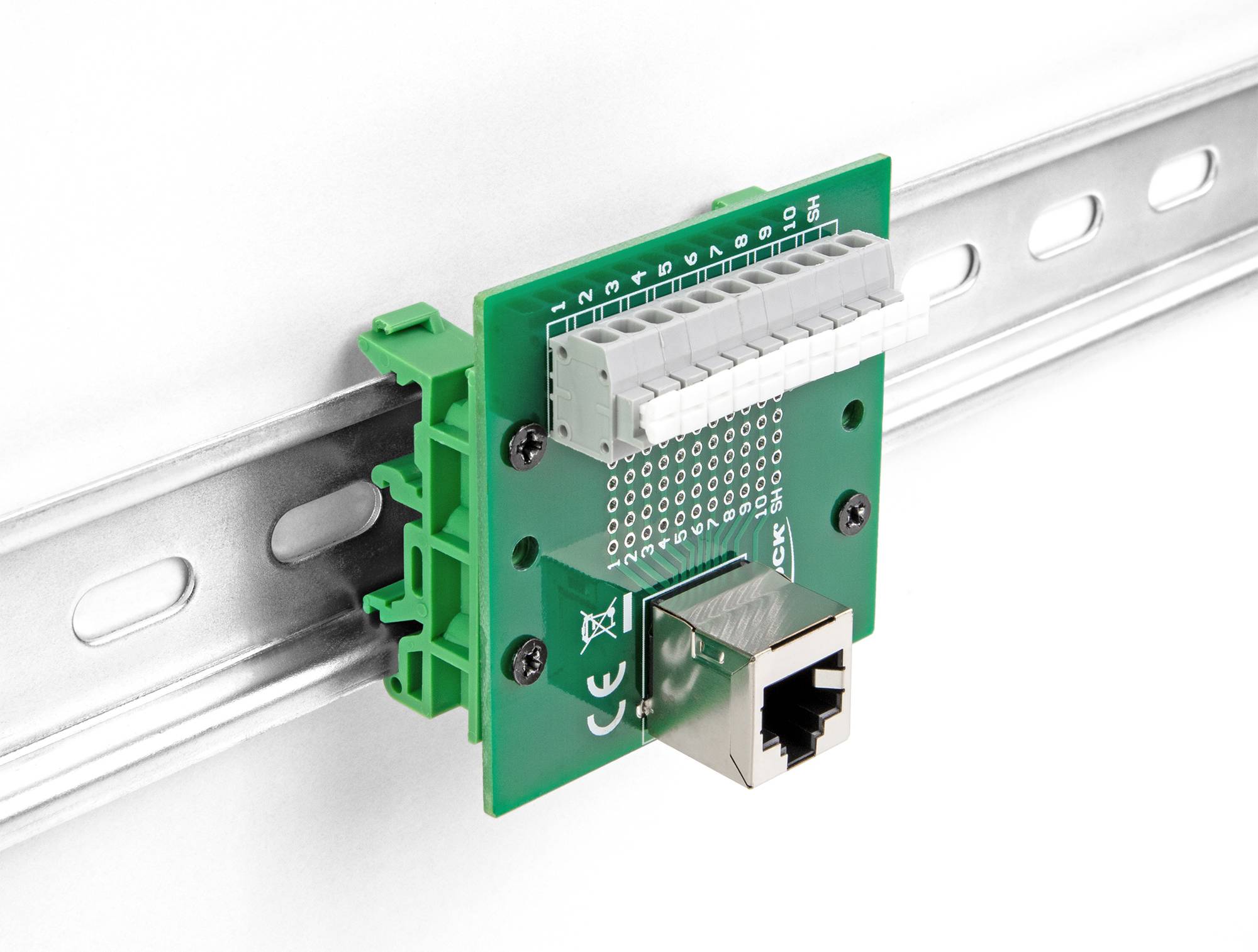

DIN rail mounting

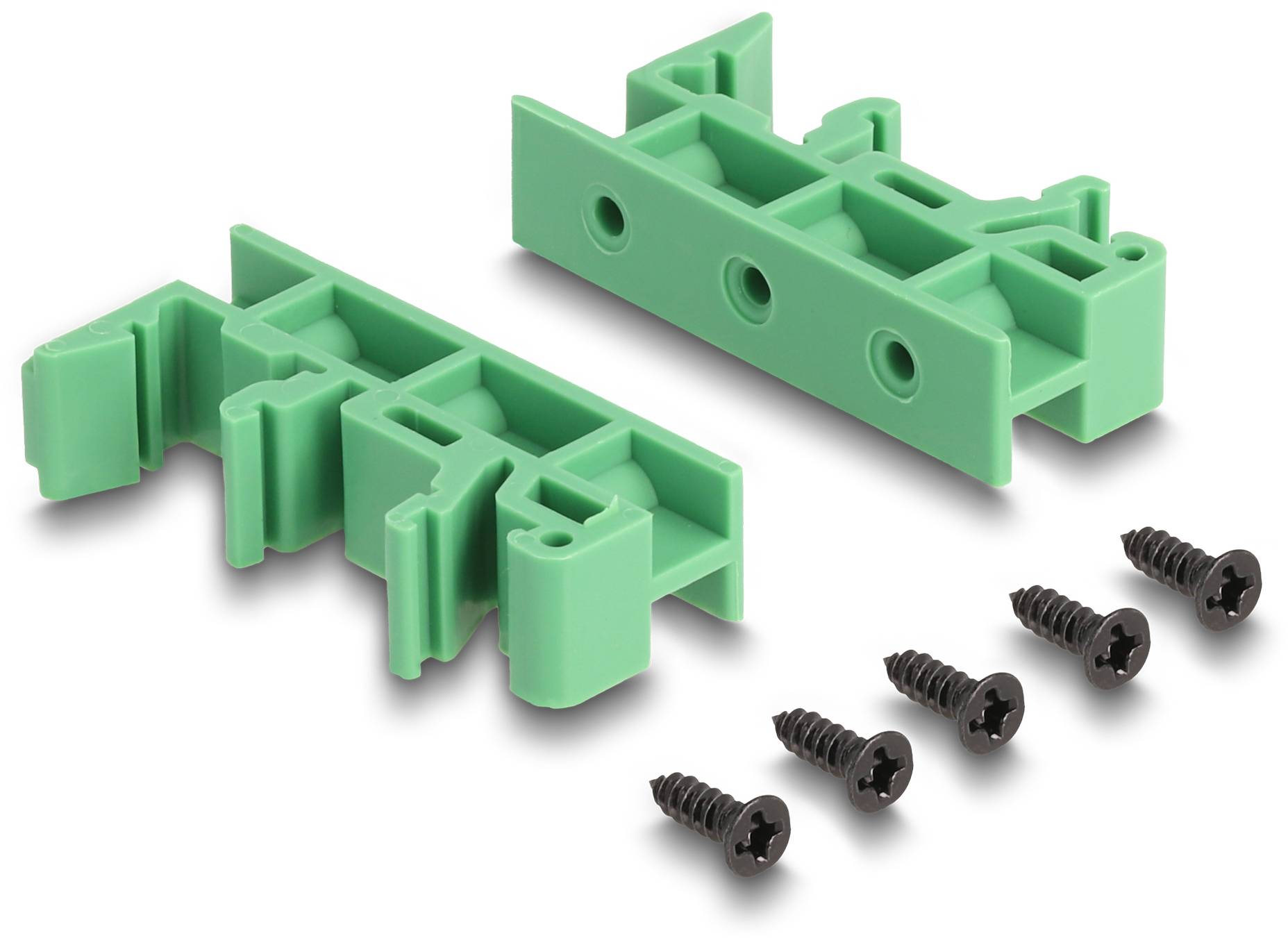

With the included clips, the adapter can be attached to a 15 mm or 35 mm wide top-hat rail.
This text is machine translated.
DIN rail mounting
With the included clips, the adapter can be attached to a 15 mm or 35 mm wide top-hat rail.
This text is machine translated.

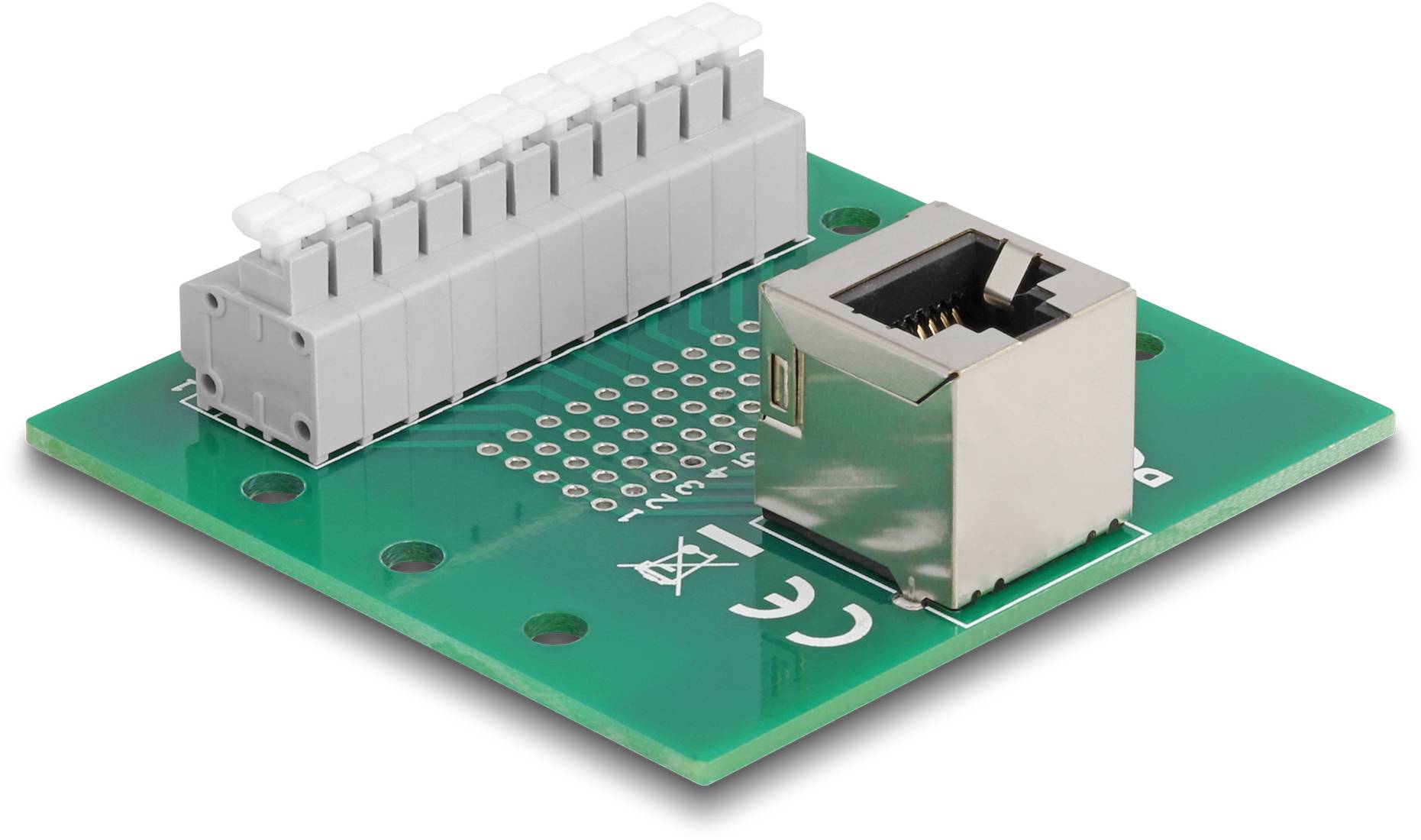

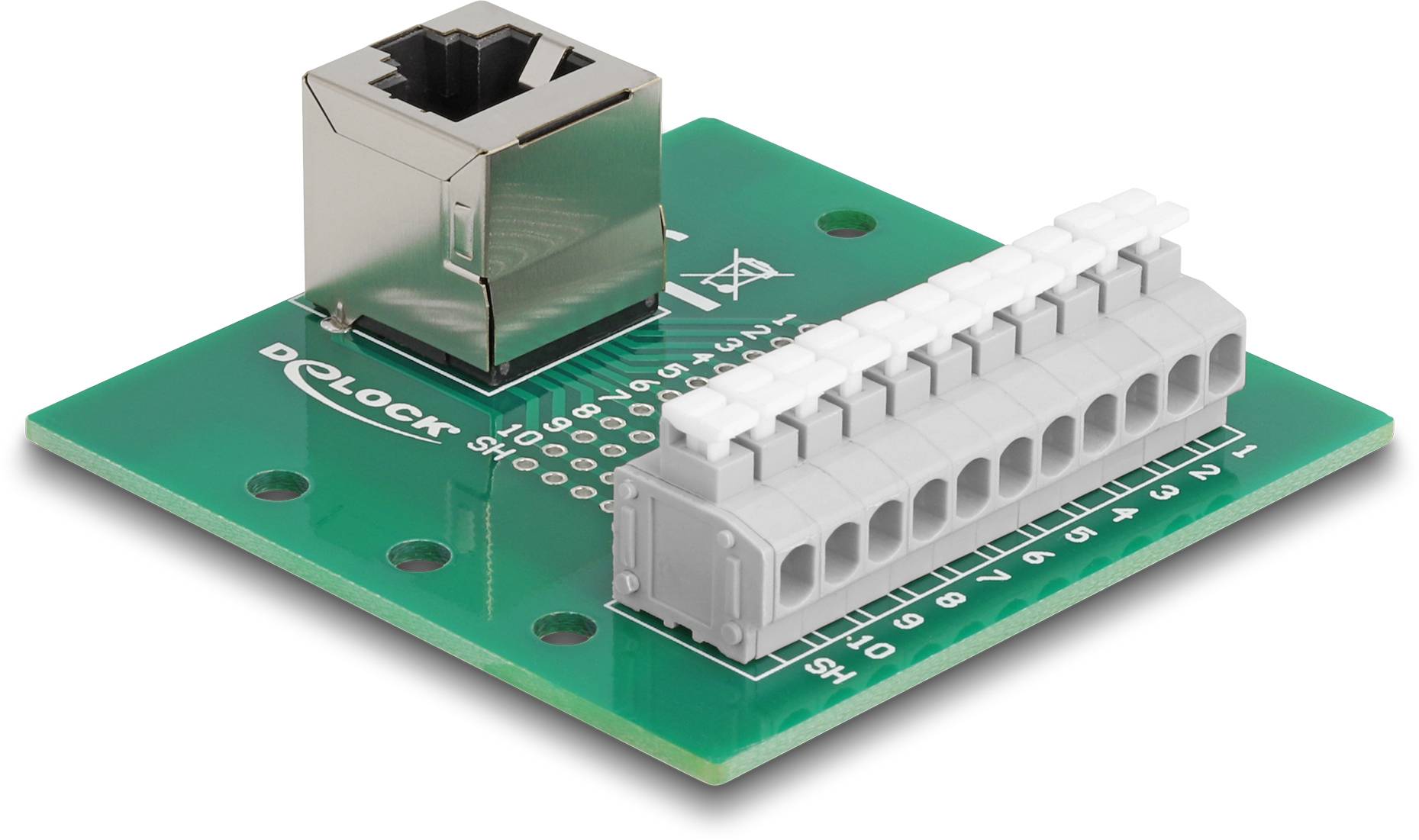

Features
- Connections:
- 1 x RJ50 angled socket
- 1 x 11 pin terminal block
- Pin assignment: 1:1
- Pitch measured: 3.81 mm
- Can be used for a wire cross-section from 24 to 12 AWG
- DIN rail mounting 15 mm and 35 mm
- Operating temperature: -40 °C ~ 100 °C
- Dim. (LxWxH): Approx. 60 x 53 x 18 mm
Hints
Please check the adapter pin layout. Depending on use, required pin layouts may differ.
System requirements
- A free RJ50 plug
15 mm or 35 mm DIN rail
