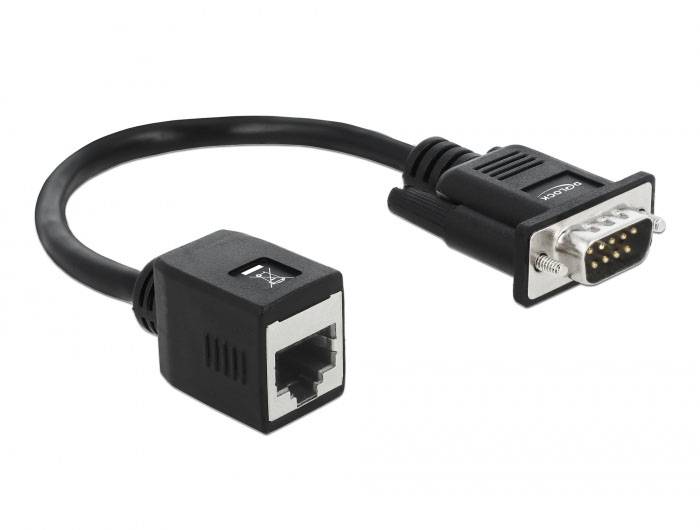

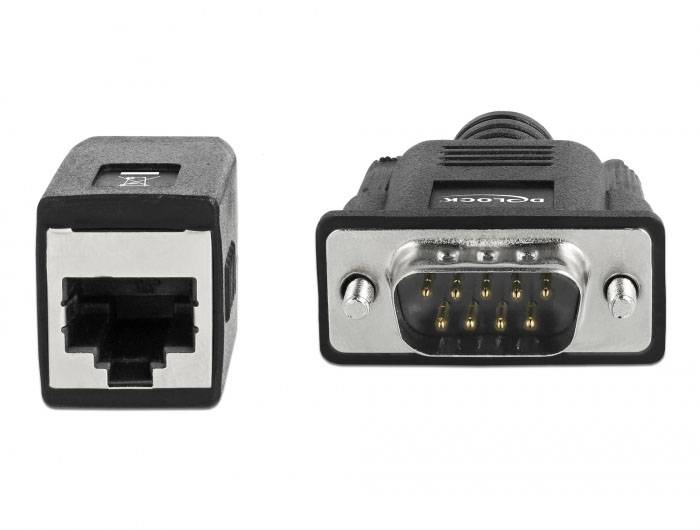

Delock Series Adapter [1x D-SUB-plug 9-pin - 1x RJ45 socket] 20 cm Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Serial RS-232/422/485 adapter DB9 plug to RJ45 socket
- 0.2 m
- DB9 straight
- RJ-45 straight
- Male/Female
- Black
Technical specifications
- Connection 1:DB9
- Connection 2 RJ-45
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Product type
Series Adapter
- Connection type
VGA
RJ45
- No. of A connectors
1 x
- Type A
D-SUB-plug 9-pin
- No. of B connections
1 x
- Type B
RJ45 socket
- Version
Adapter
- Cable length
20 cm
- Factory colour
Black
- Cable use
Series
- Range of use
Serial/parallel port adapters
- Cable design
Round
Cable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3383386 Delock Series Adapter [1x D-SUB-plug 9-pin - 1x RJ45 socket] 20 cm Black
User & Safety Instructions
User & Safety Instructions 3383386 Delock Series Adapter [1x D-SUB-plug 9-pin - 1x RJ45 socket] 20 cm Black
Description
This serial adapter for cable extension from Delock is suitable for all serial interfaces. It connects devices such as printers, computers, gateways, checkout systems, etc. The adapter thus offers a simple solution, for transferring serial data for example from RS-232/422/485 interfaces with a CAT.5 cable within an existing cable infrastructure.
Line properties for the serial adapter
A standard cable, e.g. Category 5 (CAT.5), has much better cable characteristics than a standard RS-232 cable. It enables to transfer high data rates without additional signal amplification and to bridge large distances without any errors.
This text is machine translated.
Line properties for the serial adapter
A standard cable, e.g. Category 5 (CAT.5), has much better cable characteristics than a standard RS-232 cable. It enables to transfer high data rates without additional signal amplification and to bridge large distances without any errors.
This text is machine translated.
Features
- Connections:
- 1 x serial DB9 plug with screws
- 1 x serial RJ45 socket
- Specification: TIA/EIA-561
- Signals:
- 1 X RJ45: RI(1), DCD(2), DTR(3), RXD(5), TXD(6), CTS(7), RTS(8), GND(4)
- 1 X DB9: RI(9), DCD(1), DTR(4), RXD(2), TXD(3), CTS(8), RTS(7), GND(5)
- Data transfer rate:
- 921.6 Kbps up to 20 m.
- 115.2 Kbps up to 300 m.
- Cable type CAT.5e
- Cable length incl. connections: Approx. 20 cm
System requirements
- A free DB9 connection
A free RJ45 connection
