Delock Series Adapter [1x M.2 Key M plug - 1x PCIe 4.0 x4] Multicolour
EAN:
Part number:
Item no:
Highlights & Details
Adapter M.2 Key M plug for PCI Express x4 slot
- built-in
- Host Interface: PCIe
- Output interface M.2
Technical specifications
- Product type
Series Adapter
- Connection type
M.2 NGFF
PCI Express
- No. of A connectors
1 x
- Type A
M.2 Key M plug
- No. of B connections
1 x
- Type B
PCIe 4.0 x4
- Version
Adapter
- Factory colour
Multicolour
- Cable use
Series
- Range of use
Serial/parallel port adapters
- Cable design
Round
- UKCA
yes
- Internal
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380606 Delock Series Adapter [1x M.2 Key M plug - 1x PCIe 4.0 x4] Multicolour
Description

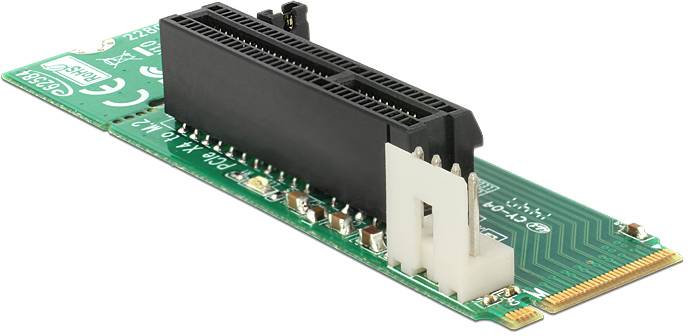

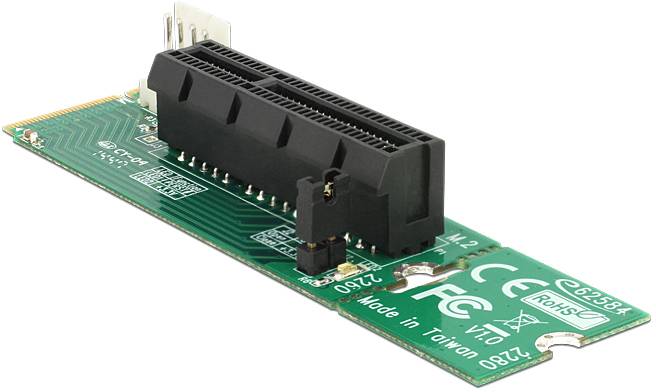

This adapter from Delock enables the connection of a PCI Express card via the M.2 Key M interface. Due to the predetermined breaking point the adapter can be shortened from 80 mm to 60 mm length.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x 67 Pin M.2 Key M plug
- 1 x PCI Express x4 slot, REV. 4.0

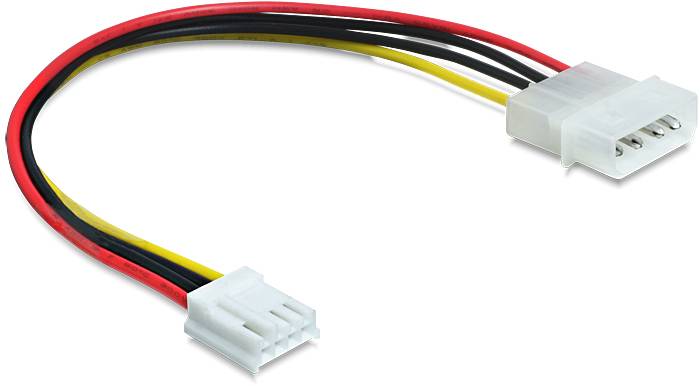

- 1 x 4 pin power connector
- Interface PCIe
- Form factor: 2280 or 2260
- Suitable for M.2 slot with key M on PCIe basis
- Supports NVM Express (NVMe SSD)
- 2 x LED display
- Bootable
- OS independent, no driver installation required
System requirements
- A free M.2 interface with Key M
