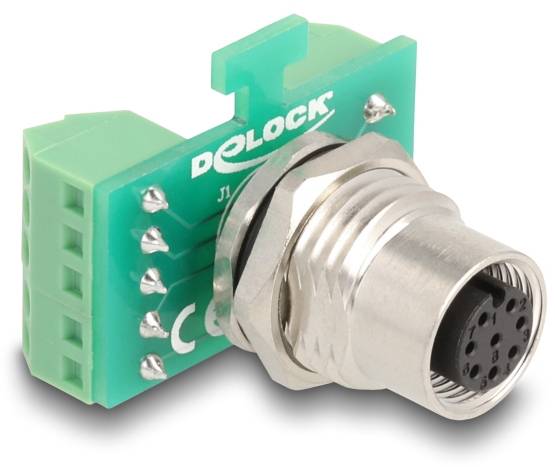

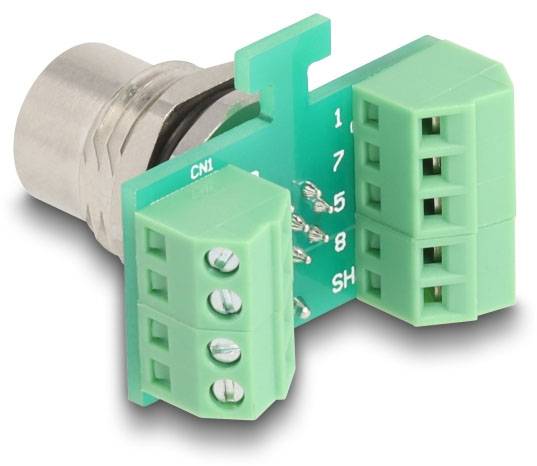

Delock Series Adapter [1x M12 socket - 1x Socket] Green
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
M12 transfer module adapter A-coded 8 pin socket to 9 pin terminal block for installation
- Host interface: M12
- Output interface: Terminal
- Green
Technical specifications
- Host interface: M12
- Product type
Series Adapter
- Connection type
M12
- No. of A connectors
1 x
- Type A
M12 socket
- No. of B connections
1 x
- Type B
Socket
- Version
Adapter
- Factory colour
Green
- Cable use
Series
- Range of use
Serial/parallel port adapters
- Cable design
Round
- Depth
52.1 mm
- Height
24.9 mm
- Width
33.1 mm
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Quantity per pack
1 Stück(e)
- Internal
no
Documents & Downloads
Datasheet
Datasheet 3383332 Delock Series Adapter [1x M12 socket - 1x Socket] Green
User & Safety Instructions
User & Safety Instructions 3383332 Delock Series Adapter [1x M12 socket - 1x Socket] Green
Description
The M12 adapter from Delock enables a simple and secure connection between devices with M12 connections and electrical circuits using terminal blocks.
Different application areas
The adapter offers a flexible solution for different applications in the industry, automation technology, building automation and other areas, in which a reliable connection is needed.
For installation
Due to its compact dimensions, the module is suitable for installation in a control cabinet.
This text is machine translated.
Different application areas
The adapter offers a flexible solution for different applications in the industry, automation technology, building automation and other areas, in which a reliable connection is needed.
For installation
Due to its compact dimensions, the module is suitable for installation in a control cabinet.
This text is machine translated.
Features
- Connections:
- 1 x M12 socket A-coded 8 pin
- 1 x 9 pin terminal block
- Mounting dimensions 16.1 x 13.5 mm
- M16 outer thread
- Wire cross-section 26 - 16 AWG
- Contact spacing: 3.50 mm
- Operating temperature: -40 °C ~ 80 °C
- Dim. (LxWxH): Approx. 52.1 x 33.1 x 24.9 mm
