Delock Series Adapter [1x Mini SAS socket (SFF-8643) - 1x PCIe 3.0 x4] Black, Green
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Adapter SFF-8643 for PCIe x4 with mounting plate
- built-in
- Host Interface: SAS
- Output interface: PCIe
- Black, Green
Technical specifications
- Product type
Series Adapter
- Connection type
SAS
PCI Express
- No. of A connectors
1 x
- Type A
Mini SAS socket (SFF-8643)
- No. of B connections
1 x
- Type B
PCIe 3.0 x4
- Version
Adapter
- Factory colour
Black
Green
- Cable use
Series
- Range of use
Serial/parallel port adapters
- Cable design
Round
- Depth
95 mm
- Height
10 mm
- Width
70 mm
- Product type description
Zubehör Festplatten
- Weight
0.18
- UKCA
yes
- Internal
yes
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3381050 Delock Series Adapter [1x Mini SAS socket (SFF-8643) - 1x PCIe 3.0 x4] Black, Green
User & Safety Instructions
User & Safety Instructions 3381050 Delock Series Adapter [1x Mini SAS socket (SFF-8643) - 1x PCIe 3.0 x4] Black, Green
Description

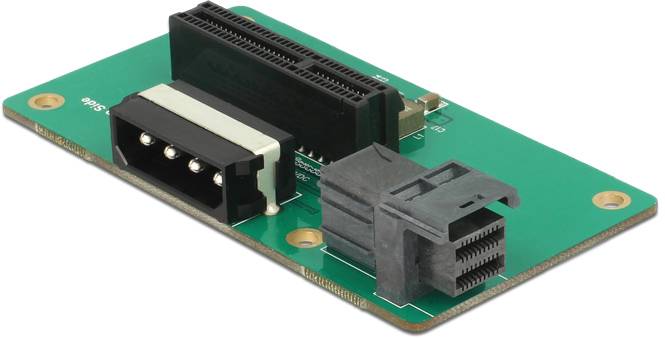

This Delock adapter can be integrated in the system via the SFF-8643 interface and makes available a PCI Express x4 NVMe slot. PCI Express cards with M.2 slot for M.2 PCIe modules can then be connected to this slot.
This text is machine translated.
This text is machine translated.
Features

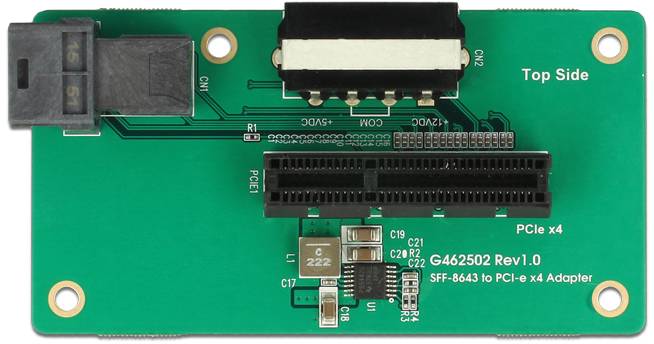

- Connections:
- 1 x SFF-8643
- 1 x PCI Express x4, V3.0
- 1 x 4 pin power connector
- Bootable, UEFI version 2.3.1 or higher
- Supports NVM Express (NVMe SSD)
- Maximum output current 4 A.
- Output voltage 3.3 V
- Short-circuit protection, overheating protection
- ESD protection up to 2 kV
- Dimensions (LxWxH):
- Adapter: Approx. 85 x 45 x 15 mm

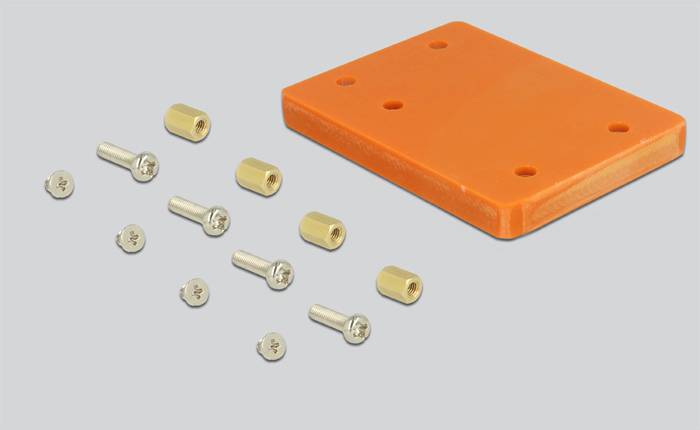

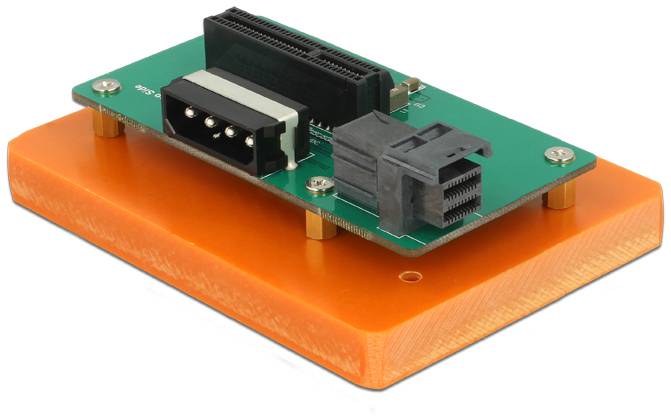

- Mounting plate: 95 x 70 x 10 mm
System requirements
- Windows 7/7-64/8.1/8.1-64/10/10-64, Linux from Kernel 3.10 / Kernel 4.x.x
A free SFF-8643 interface
