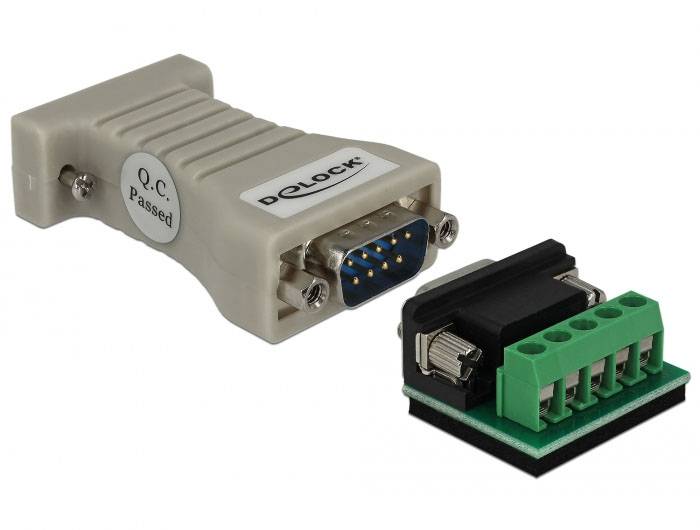

Delock Series Adapter [1x RS232 socket - 1x RS422 plug] 0 mm Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
1 x serial RS-232 DB9 converter connector to 1 x serial RS-422/485 DB9 connector with ESD protection 15 kV
- RS-422/485 Male
- RS-232 Female
- Coating plug contacts: Gold
- 0.0001152 Gbit/s
- Housing material: Plastic
- Black
- 1 pieces(s)
Technical specifications
- Connection 1 RS-422/485
- Connection 2 RS-232
- Data transfer rate 0.0001152 Gbps
- Product type
Series Adapter
- Connection type
Series
- No. of A connectors
1 x
- Type A
RS232 socket
- No. of B connections
1 x
- Type B
RS422 plug
- Version
Adapter
- Cable length
0 mm
- Factory colour
Black
- Cable use
Series
- Range of use
Serial/parallel port adapters
- Cable design
Round
- Depth
63 mm
- Height
17 mm
- Width
33 mm
Cable
- UKCA
yes
- Operating temperature (T-T)
-25 - 70 °C
- Relative humidity
5 - 95 %
- Quantity per pack
1 Stück(e)
- Full duplex
yes
- Plug and Play
yes
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3382147 Delock Series Adapter [1x RS232 socket - 1x RS422 plug] 0 mm Black
User & Safety Instructions
User & Safety Instructions 3382147 Delock Series Adapter [1x RS232 socket - 1x RS422 plug] 0 mm Black
Description
This RS-232 to RS-422/485 converter from Delock is suitable for all serial devices e.g. on machine controls, field bus systems, measuring devices, computers, printers etc. The converter can be used as a coupler directly between the DB9 connections without an additional voltage supply.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x serial RS-232 DB9 socket with screws
- 1 x serial RS-422/485 DB9 plug with nuts
- 1 x RS-422/485 terminal block 5 pin
- Automatic flow control
- Plug & Play
- Data transfer: Asynchronous, full duplex, semi-duplex
- Data transfer rate 300 bps - 115.2 kbps
- ±15 kV ESD protection for all serial signals
- Housing material: Plastic
- Colour: Beige
- Operating temperature -25 °C - 70 °C
- Relative humidity: 5 - 95% (non-condensing)
- Dimensions (LxWxH):
- Converter: Approx. 63 x 33 x 17 mm
- Terminal block: Approx. 32 x 31 x 16 mm
- Bus Power from RS-232: TXD, RTS or DTR
- Do not Require external current supply
System requirements
- Device with a free RS-232 port
