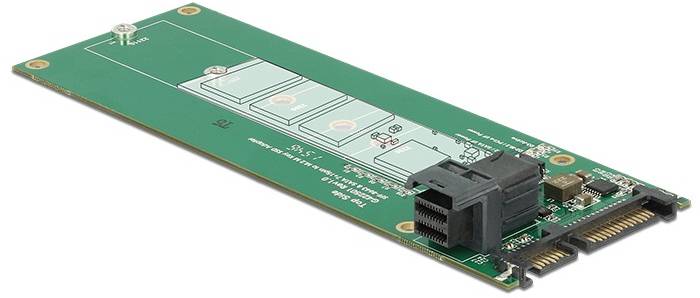

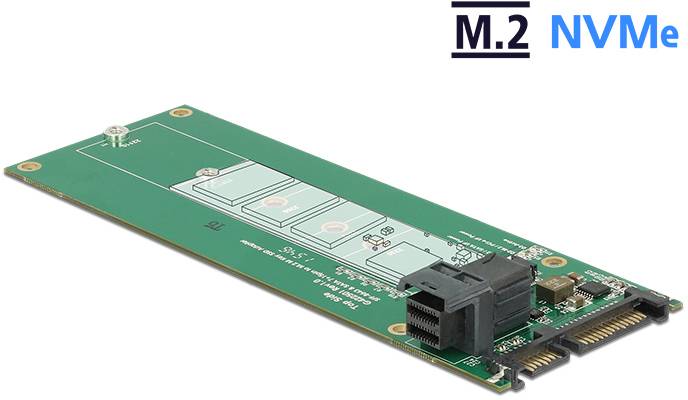

Delock Series Adapter [1x SATA - 1x Mini SAS socket (SFF-8643)] Multicolour
EAN:
Part number:
Item no:
Highlights & Details
Converter SATA 22 pin / SFF-8643 NVMe to 1 x M.2 Key M
- built-in
- Host Interface: SATA
- Output interface M.2
- 6 Gbit/s
Technical specifications
- Supports Windows operating systems: Windows 10 Education, Windows 10 Education x64, Windows 10 7 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 7 Home x64, Windows 7 Pro, Windows 7 Pro x64, Windows 7 Enterprise, Windows 10 Enterprise x64, Windows 10 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 10 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1
- Product type
Series Adapter
- Connection type
SATA
SAS
- No. of A connectors
1 x
- Type A
SATA
- No. of B connections
1 x
- Type B
Mini SAS socket (SFF-8643)
- Version
Adapter
- Factory colour
Multicolour
- Cable use
Series
- Range of use
Serial/parallel port adapters
- Cable design
Round
- Depth
50 mm
- Height
16 mm
- Width
145 mm
- UKCA
yes
- Data transfer rate (max)
6 Gbit/s
- Internal
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380786 Delock Series Adapter [1x SATA - 1x Mini SAS socket (SFF-8643)] Multicolour
Description

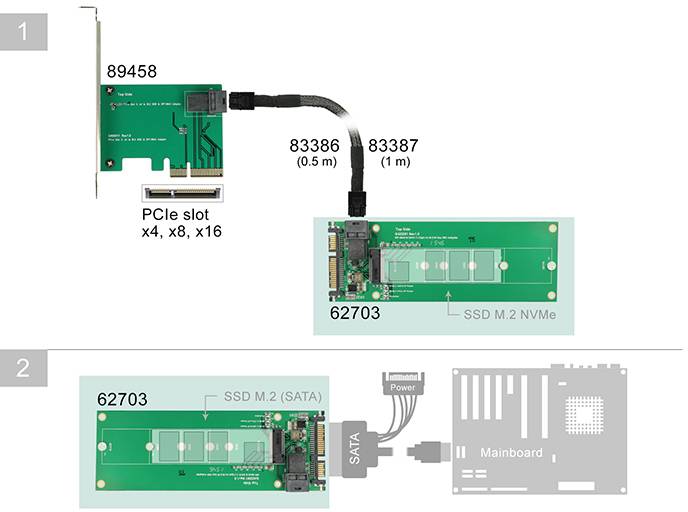

An M.2 SSD in 2280, 2260, 2242 and 2230 format can be connected to this Delock converter. It enables the use of an M.2 SSD on PCIe or SATA basis. The converter can be integrated internally via the SATA interface in the system, when using a SATA M.2 SSD, or via the SFF-8643 interface, when using a PCIe M.2 SSD.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x SATA 6 GB/s 22-pin plug (for SATA SSDs)
- 1 x 36 pin SFF-8643 socket (for PCIe SSDs 2 or 4 lanes)
- 1 x 67 Pin M.2 Key M Slot
- Interface: SATA / PCIe (2 or 4 lanes)
- Suitable for M.2 modules in the format: 2280, 2260, 2242 and 2230 with key M or key
- B+M on PCIe basis or SATA
- Maximum height of the components on the module: 1.5 mm, use of double-sided
- Built-in modules is possible
- LEDs for Power and activity
- Supports NVM Express (NVMe SSD)
- Maximum output current 4 A.
- Overcurrent protection, overheating protection
- Dim. (LxWxH): Approx. 145 x 50 x 16 mm
System requirements
- Linux Kernel 3.16 or later
Windows 7/7-64/8.1/8.1-64/10/10-64/11
A free SATA 22-pin interface (SATA SSD)
A free SFF-8643 interface (PCIe SSD)
