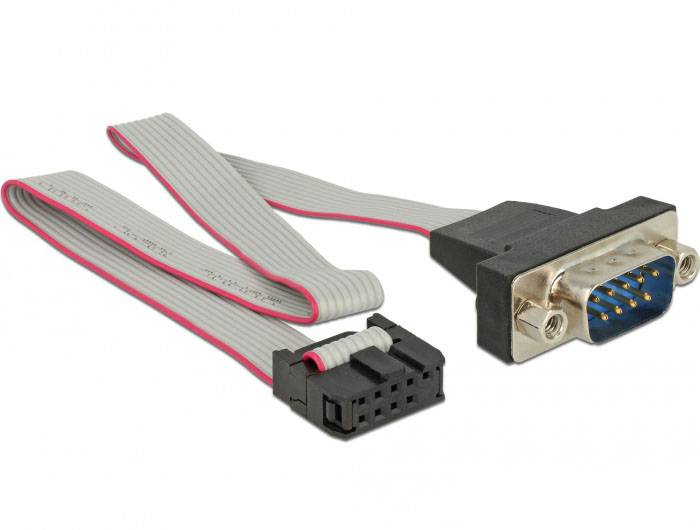

Delock Series Cable [1x COM (for POS system link) - 1x RS232 plug] 0.25 m Grey
EAN:
Part number:
Item no:
Technical specifications
- Connection 1 RS-232 DB9
- Connection 2: 9-pin COM
- Product type
Series Cable
- Connection type
Series
- No. of A connectors
1 x
- Type A
COM (for POS system link)
- No. of B connections
1 x
- Type B
RS232 plug
- Cable length
0.25 m
- Factory colour
Grey
- Connector version
straight
- Cable use
Series
- Version
Cable
- Cable design
Flat
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378937 Delock Series Cable [1x COM (for POS system link) - 1x RS232 plug] 0.25 m Grey
Description
This serial RS-232 cable from Delock provides the option to conduct an internal standard RS-232 port outwards to the computer casing. The serial DB9 connection is suitable for mini-PCs, industrial computers, slot plates etc.
This text is machine translated.
This text is machine translated.
Features

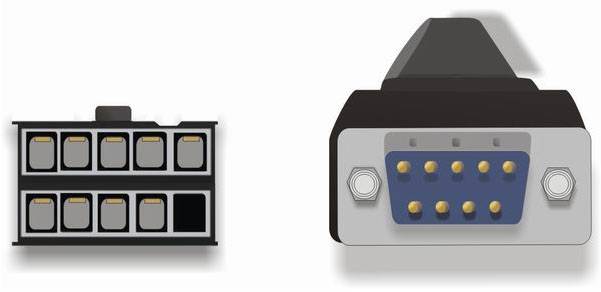

- Connections:
- Internal 1 x 9 Pin COM Port Post connector
- External:1 x serial RS-232 DB9 connector with nuts
- Lead wire spacing 2.54 mm
- Cable length approx. 25 cm
- Cable color: Grey

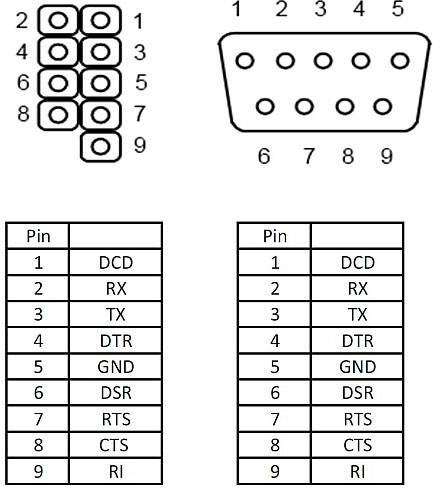

- Serial socket assignment >
- 1-1, 2-2, 3-3, 4-4, 5-5, 6-6, 7-7, 8-8, 9-9
