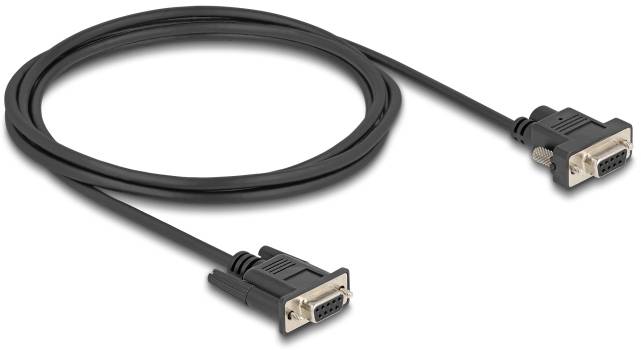

Delock Series Cable [1x D-SUB socket 9-pin - 1x D-SUB socket 9-pin] 2 m Black
EAN:
Part number:
Item no:
Highlights & Details
Delock serial cable RS-232 D-SUB9 socket to D-SUB9 socket power connection to pin 9 2 m.
- 2 m
- RS-232 Female straight
- DB-9 female straight
Technical specifications
- Connection 1 RS-232
- Connection 2:DB-9
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Product type
Series Cable
- Connection type
Series
- No. of A connectors
1 x
- Type A
D-SUB socket 9-pin
- No. of B connections
1 x
- Type B
D-SUB socket 9-pin
- Cable length
2 m
- Factory colour
Black
- Connector version
straight
26 AWG
- Cable use
Series
- Version
Cable
- Cable design
Round
- UKCA
yes
- Bandwidth
921.6 Kbit/s
- Cable diameter
4.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380951 Delock Series Cable [1x D-SUB socket 9-pin - 1x D-SUB socket 9-pin] 2 m Black
Description

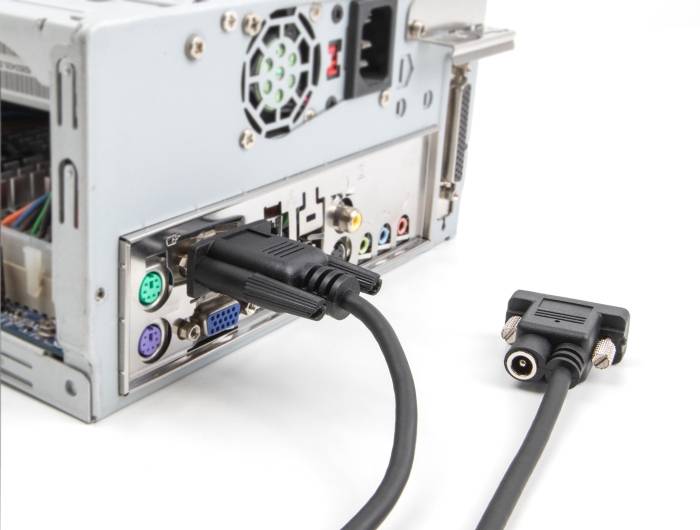

This serial D-SUB9 cable from Delock can supply power to devices through a power supply on pin 9. It is suitable for POS systems (POS), printers, barcode scanners etc.
Voltage supply
The power supply to the D-SUB9 socket of the RS-232 cable can be sent via a power supply, for example, and the corresponding DC connection.
This text is machine translated.
Voltage supply
The power supply to the D-SUB9 socket of the RS-232 cable can be sent via a power supply, for example, and the corresponding DC connection.
This text is machine translated.
Features
- Connections:
- 1 x serial D-SUB9 socket with screws (pin 9 not assigned)
- 1 x serial D-SUB9 socket with screws (DC power connector to pin 9)
- 1 x DC 5.5 x 2.1 mm socket
- Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Pin assignment: 1:1
- Current at pin 9: Max. 3 A
- Wire cross-section 26 AWG
- Insulation PVC
- Colour, black
- Screw type #4-40 UNC
- Cable diameter: Approx. 4.5 mm
- Cable length incl. connections: Approx. 2 m.
- Specification of the power connection
- Input DC socket
- Output D-Sub socket pin 9
- Outer shield, inner plus
- Dimensions:
- inner: ø approx. 2.1 mm
- outer: ø approx. 5.5 mm
