Delock Series Cable [1x D-SUB socket 9-pin - 1x D-SUB socket 9-pin] 3 m Black
EAN:
Part number:
Item no:
Highlights & Details

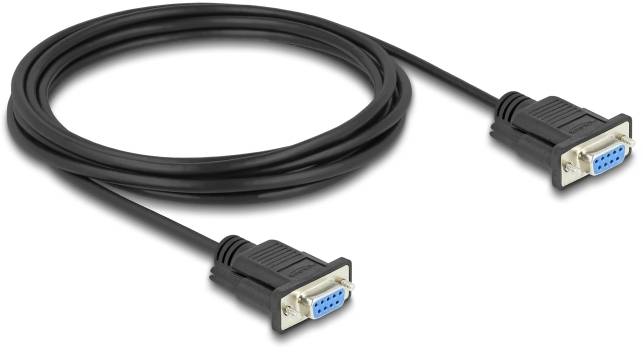

Delock serial cable RS-232 D-SUB9 socket to socket with narrow plug casing 3 m
- 3 m.
- DB-9 female straight
- DB-9 female straight
Technical specifications
- Connection 1:DB-9
- Connection 2:DB-9
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Product type
Series Cable
- Connection type
Series
- No. of A connectors
1 x
- Type A
D-SUB socket 9-pin
- No. of B connections
1 x
- Type B
D-SUB socket 9-pin
- Cable length
3 m
- Factory colour
Black
- Connector version
straight
28 AWG
- Cable use
Series
- Version
Cable
- Cable design
Round
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Connector 1 dimensions (WxDxH)
44 x 33,3 x 15 mm
- Connector 2 dimensions (WxDxH)
44 x 33,3 x 15 mm
- Bandwidth
921.6 Kbit/s
- Cable diameter
5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380624 Delock Series Cable [1x D-SUB socket 9-pin - 1x D-SUB socket 9-pin] 3 m Black
Description
This Delock serial cable can be used as an extension cable or connector cable for measuring devices, POS systems, printers, IoT, RS-232 hubs and patch panels. The cable offers the possibility to connect adjacent plants and devices with each other.

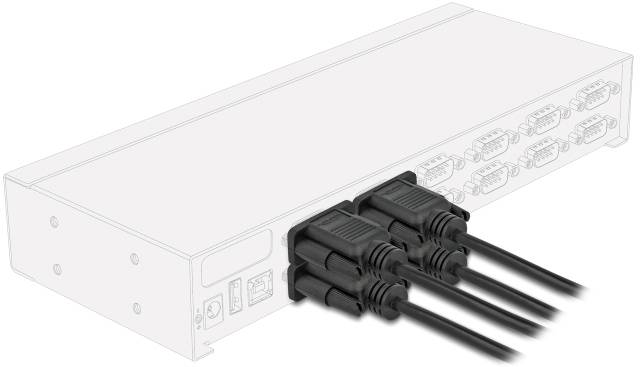

Mini D-SUB9 connection
These cables fit any RS-232 connection, since the mini D-SUB9 plug (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections lying directly next to each other can be used.
This text is machine translated.
Mini D-SUB9 connection
These cables fit any RS-232 connection, since the mini D-SUB9 plug (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections lying directly next to each other can be used.
This text is machine translated.
Features
- Connections:
- 1 x serial D-SUB9 socket with screws
- 1 x serial D-SUB9 socket with screws
- Wire cross-section 28 AWG
- Pin assignment: 1:1
- Colour, black
- Insulation PVC
- Screw type #4-40 UNC
- Cable diameter: Approx. 5 mm
- Cable length incl. connections: Approx. 3 m.
