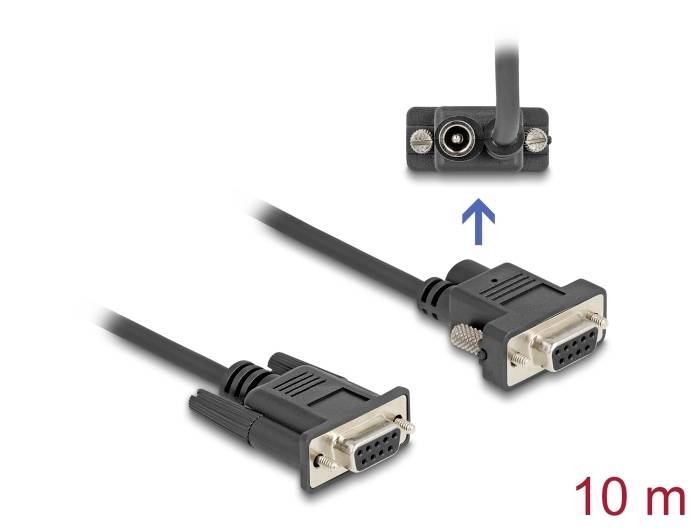

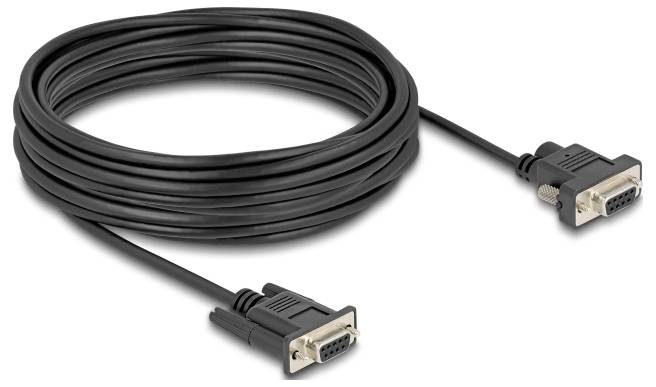

Delock Series Cable [1x D-SUB socket 9-pin, DC 5.5 mm socket - 1x D-SUB socket 9-pin] 10 m Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Series Cable
- Connection type
Series
- No. of A connectors
1 x
- Type A
D-SUB socket 9-pin
DC 5.5 mm socket
- No. of B connections
1 x
- Type B
D-SUB socket 9-pin
- Cable length
10 m
- Factory colour
Black
- Connector version
straight
- Cable use
Series
- Version
Cable
- Cable design
Round
- Material (details)
PVC insulation
- Nominal current
3 A
- Number of pins
9
- Connector type
Cable gland
Socket
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3380243 Delock Series Cable [1x D-SUB socket 9-pin, DC 5.5 mm socket - 1x D-SUB socket 9-pin] 10 m Black
User & Safety Instructions
User & Safety Instructions 3380243 Delock Series Cable [1x D-SUB socket 9-pin, DC 5.5 mm socket - 1x D-SUB socket 9-pin] 10 m Black
Description
Description
This serial D-SUB9 cable from Delock can be used with devices through one
Voltage supply
Power on pin 9. It is suitable for POS systems (POS), printers, barcode scanners etc.
Voltage supply
Fennel Systems GmbH is an internationally positioned group of companies with over 50 subsidiaries and sales offices worldwide.
Voltage supply

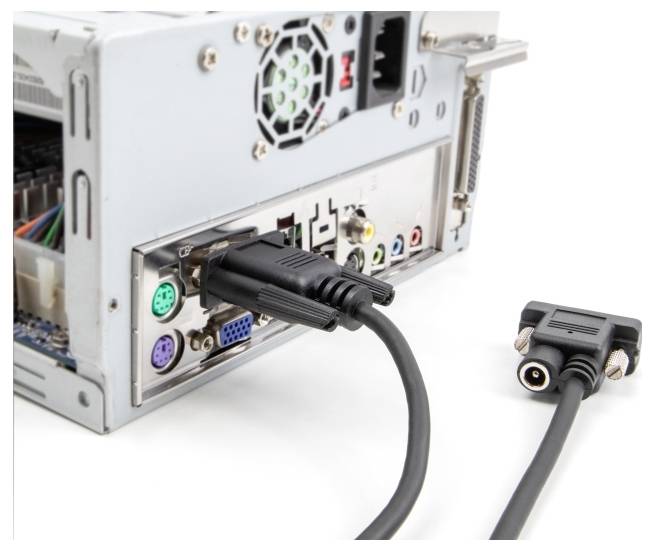

You can connect a power supply and the corresponding DC connection to the D-SUB9 socket of the RS-232 cable.
Technical data
Connections:
1 x serial D-SUB9 socket with screws (pin 9 not assigned)
1 x serial D-SUB9 socket with screws (DC power connector to pin 9)
1 x DC 5.5 x 2.1 mm socket
Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Pin assignment: 1:1
Current at pin 9: Max. 3 A
Wire cross-section 26 AWG
Insulation PVC
Colour, black
Screw type #4-40 UNC
Cable diameter: Approx. 4.5 mm
Cable length incl. connections: Approx. 10 m.

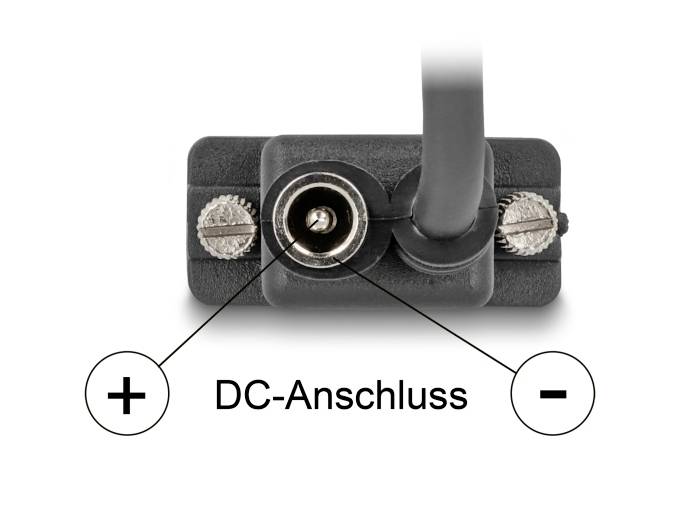

Specification of the power connection
Input DC socket
Output D-Sub socket pin 9
Outer shield, inner plus
Dimensions:
inner: ø approx. 2.1 mm
outer: ø approx. 5.5 mm
Package contents
Cable
Packaging
Resealable bag
This text is machine translated.
