Buy Delock Thunderbolt Cable Thunderbolt™ USB-C® plug, Thunderbolt™ USB-C® plug 1.00 m Black 84845 Thunderbolt cable

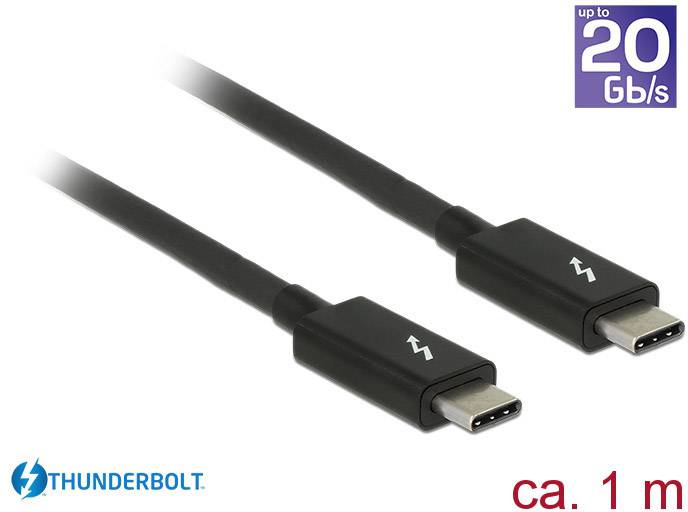

Two black Thunderbolt cables with USB-C connectors. Support for data transfer up to 20 Gbps. Length approximately 1 m.

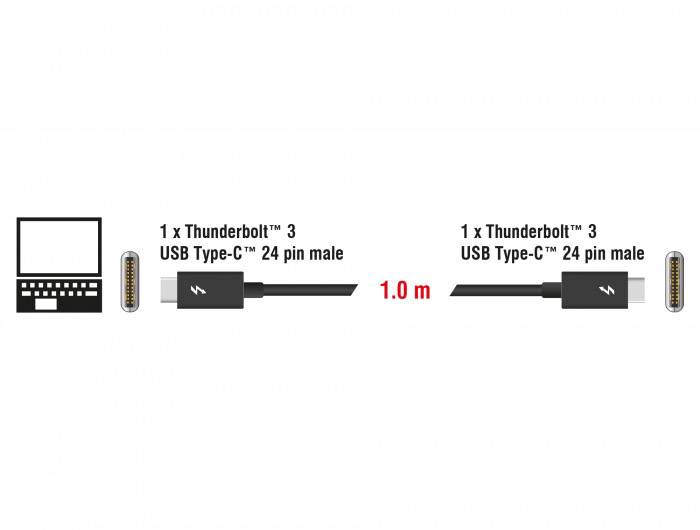

'1 x Thunderbolt™ 3 USB Type-C™ 24-pin male, 1 m length' shows a USB cable that connects two devices.

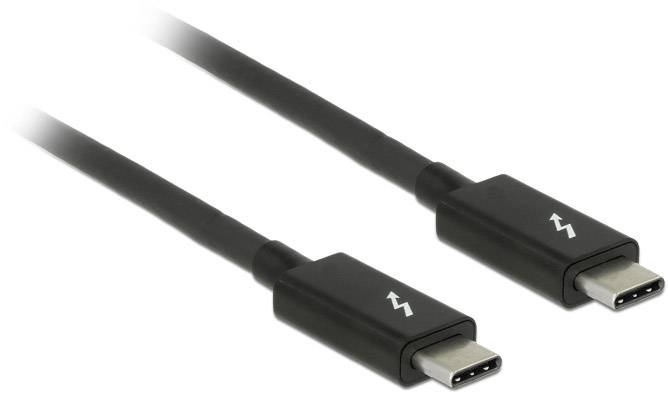

Two black USB-C cables with a lightning symbol on the connectors, indicating fast data transfer or Thunderbolt compatibility.

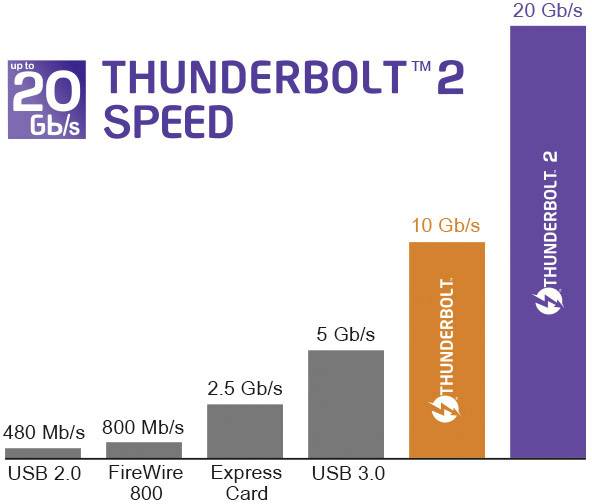

Diagram compares data transfer rates: USB 2.0, FireWire 800, Express Card, USB 3.0, Thunderbolt and Thunderbolt 2; the latter is the fastest at 20 Gb/s.

1/4

Product type

Thunderbolt cable

Connection type

Thunderbolt

Version

Cable

Connection type

Thunderbolt™ (USB-C®) to Thunderbolt™ (USB-C®)

Connections

Thunderbolt™ USB-C® plug

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Thunderbolt™ 3 (20 Gb/s) USB-C™ cable plug connector passive 1.0 m 5 A black

Chipset: Cypress E-Marker
Supports data and video via a single cable
Supports PCI Express 3.0 Protocol (4 lanes)
Supports DisplayPort 1.2a Protocol (8 lanes, HBR 2 and MST)
Can be cascaded up to 6 Thunderbolt™ Devices (Daisy Chain)
Dual-channel, bi-directional data transfer
Power supply via USB power delivery up to 100 W (20 V/5 A)
Power supply for Thunderbolt™ 3 devices with Bus Power (max. 15 W)

Technical specifications

Product type: Thunderbolt cable

Connection type: Thunderbolt

Version: Cable

Connection type: Thunderbolt™ (USB-C®) to Thunderbolt™ (USB-C®)

Connections: Thunderbolt™ USB-C® plug
Thunderbolt™ USB-C® plug

Connector version: straight

Cable version: Thunderbolt™

Video resolution: 5120 x 2880 Pixel

Cable length: 1.00 m

Factory colour: Black

Signal flow: Bidirectional (A↔B)

Cable use: TV/monitor

Cable design: Round

: 32+34/24+34

Cable specs: Thunderbolt™ 3

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1881056 Delock Thunderbolt Cable Thunderbolt™ USB-C® plug, Thunderbolt™ USB-C® plug 1.00 m Black 84845 Thunderbolt cable

User & Safety Instructions

User & Safety Instructions 1881056 Delock Thunderbolt Cable Thunderbolt™ USB-C® plug, Thunderbolt™ USB-C® plug 1.00 m Black 84845 Thunderbolt cable

Description

This Thunderbolt™ 3 cable by Delock can be used universally, and combines all advantages of the Thunderbolt™ 3 interface. It enables the connection of different devices, such as external housing, monitors, card reader, and docking stations, via a Thunderbolt™ 3 port on a PC or notebook. The cable enables data transfer rates of up to 20 Gb/s and supports both the transfer of USB and DisplayPort, PCI Express and Ethernet data. For example, the connection of a 5k or 4K display port monitor is possible, as the connection of USB 3.1 Gen 2 devices. Also the power supply of connected devices with a capacity up to 100 W is possible.

This text is machine translated.

Features

Conductor cross-section: 32 + 34 AWG data cable/24 + 34 AWG power line
Cable diameter: approx. 4.4 mm
Conductor: 8 x coaxial for Super Speed USB, 1 x twisted pair for USB 2.0
Contacts with gold plating
Triple shielded cable
Data transfer rates: Thunderbolt™ 3 up to 40 Gb/s, DisplayPort 1.2a up to 21.6 GB/s, Super Speed USB up to 10 Gb/s, Thunderbolt™ networking up to 10 Gb/s (Peer-to-Peer)
Resolution up to 5120 x 2880: 1 x 30 Bit @ 60 Hz, 1x 4096 x 2160 30 Bit @ 120 Hz or 2 x 4096 x 2160 30 Bit @ 60 Hz

Delock Thunderbolt Cable Thunderbolt™ USB-C® plug, Thunderbolt™ USB-C® plug 1.00 m Black 84845 Thunderbolt cable
