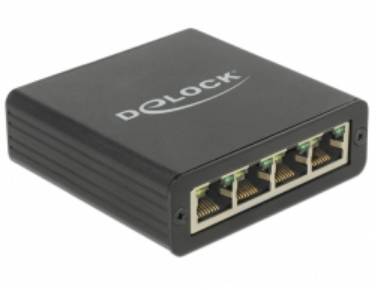

Delock USB 2.0 Adapter [1x DC 5.5 mm socket, USB-B socket - 4x RJ45 socket] 62966 0.8 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
USB 2.0 Adapter
- Connection type
USB
RJ45
- No. of A connectors
1 x
- Type A
DC 5.5 mm socket
USB-B socket
- No. of B connections
4 x
- Type B
RJ45 socket
- Cable length
0.8 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Transfer rate (max.)
5 GBit/s
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378829 Delock USB 2.0 Adapter [1x DC 5.5 mm socket, USB-B socket - 4x RJ45 socket] 62966 0.8 m
Description
The Delock USB 5 Gbps adapter offers four network connections with a transfer rate of up to 1000 Mbps. Each port can be configured independently of the other, thus allowing a PC to be connected to different networks at the same time.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x USB 5 Gbps type B socket
- 4 x Gigabit LAN RJ45 socket
- 1 x 5 V DC power socket 5.5 x 2.1 mm
- Chip set: Realtek RTL8153
- Data transfer rates:
- Ethernet up to 10 Mbps (half/full duplex)
- Fast Ethernet up to 100 Mbps (half/full duplex)
- Gigabit Ethernet up to 1000 Mbps (half/full duplex)
- Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports IEEE 802.3x full duplex flow control
- Supports IEEE 802.1p layer 2 priority encoding
- Supports IEEE 802.1Q virtual LAN (VLAN)
- Supports IEEE 802.3az (energy-efficient Ethernet)
- LED display
- USB bus Power
- Heavy duty metal casing
- Dim. (LxWxH): Approx. 73 x 72 x 23 mm
System requirements
- Linux Kernel 2.6.24 or later
Mac OS X 10.9.5 or higher
Windows 8.1/10/11
PC or notebook with a free USB type A port
