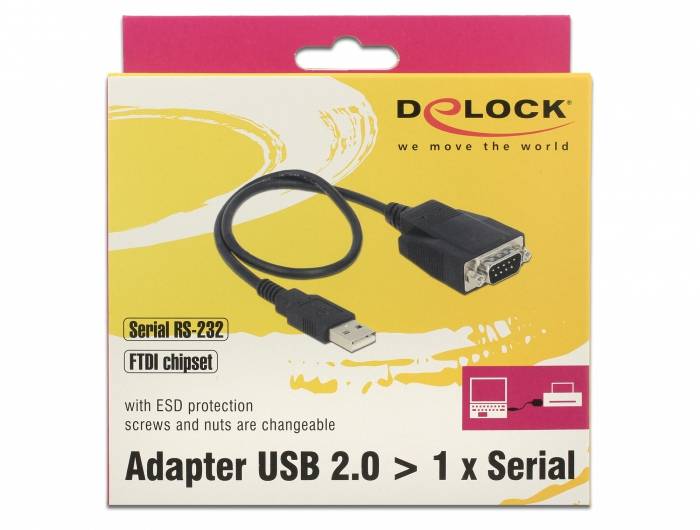

Delock USB 2.0 Adapter [1x USB 2.0 connector A - 1x RS232 plug] 62958 0.45 m
EAN:
Part number:
Item no:
Delock 62958 laptop docking station & port replicator USB Type-A black
Highlights & Details
- Host interface: USB type A
- Full duplex
- Plug & Play
Technical specifications
- Host interface: USB type A
- Supports Windows operating systems: Windows 10 7,Windows 10 Education,Windows 10 Education x64,Windows 7 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 7 IOT Core,Windows 7 Pro,Windows 10 Pro x64,Windows 10,Windows 10 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional x64,Windows 10 Professional x64 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
- Product type
USB 2.0 Adapter
- Connection type
USB
Series
- No. of A connectors
1 x
- Type A
USB 2.0 connector A
- No. of B connections
1 x
- Type B
RS232 plug
- Cable length
0.45 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- UKCA
yes
- Operating temperature (T-T)
0 - 60 °C
- Full duplex
yes
- Storage temperature (T-T)
5 - 95 °C
- Plug and Play
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378832 Delock USB 2.0 Adapter [1x USB 2.0 connector A - 1x RS232 plug] 62958 0.45 m
Description

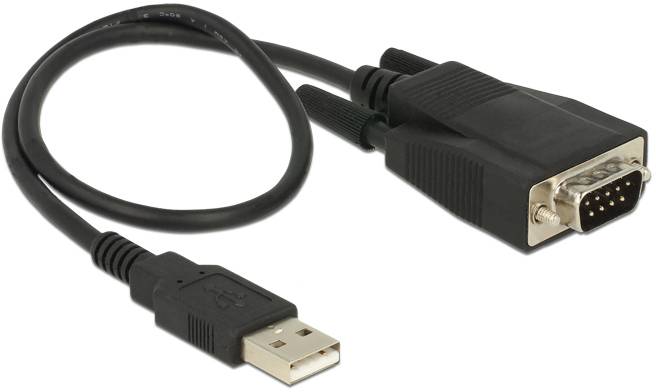

This USB 2.0 to RS-232 adapter from Delock offers a flexible DB9 connection with appropriate screws and nuts for use with serial controls, printers, measuring devices, IoT devices, etc. An in-built ESD surge protection prevents the destruction of the electronic components.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x USB 2.0 Type-A connector
- 1 x serial RS-232 DB9 connector
- FTDI FT232RL chipset
- Serial connector with screws or nuts
- Screw type #4-40 UNC
- Compatible with USB 3.0, USB 2.0 and USB 1.1 full speed 12 Mbps
- Data transfer rate up to 115.2 Kbps
- Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- Parity bit: Even, odd, none, marked, empty
- Stop bit:1, 2
- Data bit 7, 8
- Flow Control: None, Xon/Xoff, RTS/CTS
- FIFO: 128 bytes - TX
- FIFO 256 bytes - RX
- ESD surge protection:
- ± 15 KV ESD protection Human Body Model (HBM)
- ± 15 KV IEC1000-4-2 Air Gap Discharge
- ± 8 KV IEC1000-4-2 Contact discharge
- Current consumption: approx. 150 mA
- Cable length approx. 35 cm
- Cable length incl. connections: Approx. 45 cm
- Operating temperature: 0 °C ~ 60 °C
- Humidity 5 - 95 %
System requirements
- Windows 7/7-64/8.1/8.1-64/10/10-64/11, Linux from Kernel 2.6
PC or notebook with a free USB type A port
