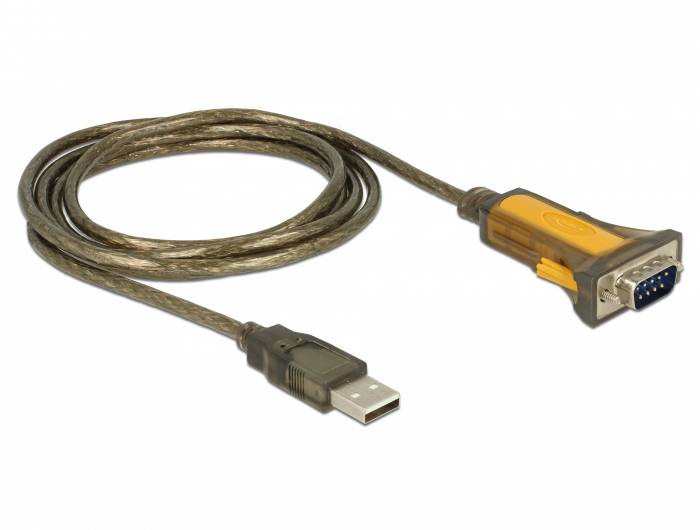

Delock USB 2.0 Adapter [1x USB 2.0 connector A - 1x RS232 plug] 65840 1.5 m incl. USB
EAN:
Part number:
Item no:
Delock 65840 series-cable black, yellow 1.5 m USB type-A DB-9
Highlights & Details
- 1.5 m
- USB Type-A Male
- DB-9 Male
Technical specifications
- Connection 1 USB type A
- Connection 2:DB-9
- Product type
USB 2.0 Adapter
- Connection type
USB
Series
- No. of A connectors
1 x
- Type A
USB 2.0 connector A
- No. of B connections
1 x
- Type B
RS232 plug
- Cable length
1.5 m
- Factory colour
Black/yellow
- Connector version
straight
- Cable features
incl. USB
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Video transmission possible
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378869 Delock USB 2.0 Adapter [1x USB 2.0 connector A - 1x RS232 plug] 65840 1.5 m incl. USB
Description

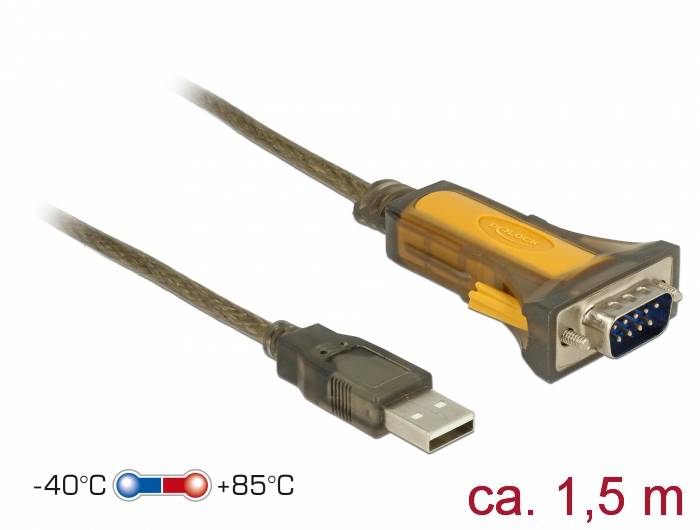

This USB type A to serial adapter from Delock offers an RS-232 connection for measuring devices, POS systems, printers, modems, IoT devices etc and also meets the requirements for an extended operating temperature range from -40 °C to 85 °C.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x USB 2.0 Type-A connector >
- 1 x serial RS-232 DB9 plug with screws
- FTDI FT232 chipset
- Screw type #4-40 UNC
- Compatible with USB 2.0 and USB 1.1 full speed 12 Mbps
- Data transfer rate of up to 460.8 KB/s.
- Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- Parity bit: Even, odd, none, marked, empty
- Stop bits 1, 2
- Data bits 7, 8
- Flow Control: None, Xon/Xoff, RTS/CTS
- FIFO 128 bytes - RX
- FIFO: 256 bytes - TX
- Current consumption: approx. 20 mA
- Extended temperature range: -40 °C ~ 85 °C.
- Cable length incl. connections: Approx. 1.5 m.
System requirements
- Windows 7/7-64/8.1/8.1-64/10/10-64/11, Linux from Kernel 2.4, Mac from OS 10.9
PC or notebook with a free USB type A port
