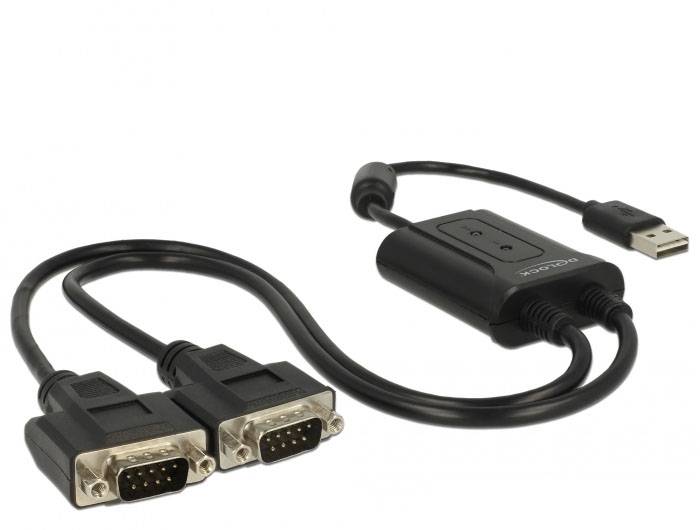

Delock USB 2.0 Adapter [1x USB 2.0 connector A - 2x RS232 plug] 63950 0.6 m incl. ferrite core
EAN:
Part number:
Item no:
Highlights & Details
Delock 63950 series cable black 0.6 m USB 2.0 type A 2 x RS-232 DB9
- 0.6 m
- USB 2.0 Type-A Male
- 2 x RS-232 DB9 Male
Technical specifications
- Connection 1 USB 2.0 Type A
- Connection 2 2 x RS-232 DB9
- Product type
USB 2.0 Adapter
- Connection type
USB
Series
- No. of A connectors
1 x
- Type A
USB 2.0 connector A
- No. of B connections
2 x
- Type B
RS232 plug
- Cable length
0.6 m
- Factory colour
Black
- Connector version
straight
- Cable features
incl. ferrite core
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Connections
RJ45 connector
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378989 Delock USB 2.0 Adapter [1x USB 2.0 connector A - 2x RS232 plug] 63950 0.6 m incl. ferrite core
Description

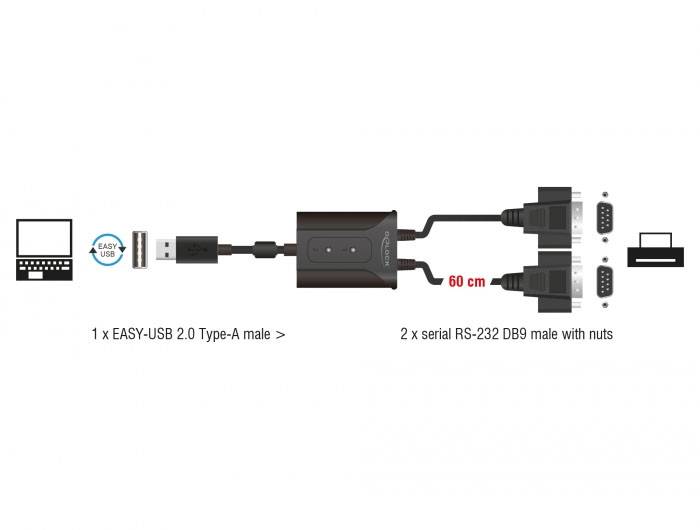

This type A EASY USB to serial adapter from Delock offers two RS-232 DB9 connectors for printers, measuring devices, controls, IoT devices, etc.
This text is machine translated.
This text is machine translated.
Features
- Connections:

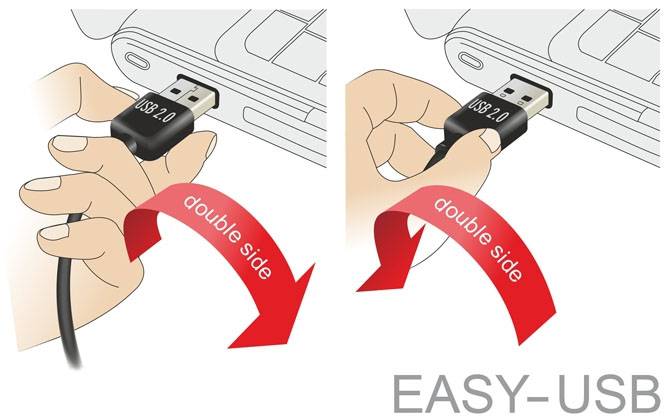

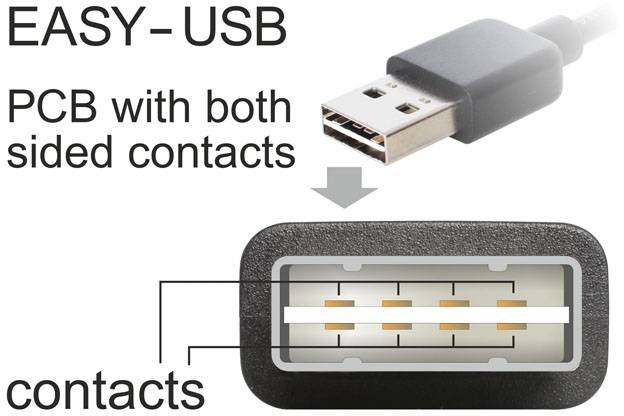

- 1 x EASY-USB 2.0 type-A plug >
- 2 x serial RS-232 DB9 plug with nuts
- ASIX MCS7820 chipset
- Data bits 5, 6, 7, 8
- Stop bits 1, 2
- FIFO: 512 bytes buffer bidirectional
- Parity bit: Even, odd, none, marked, empty
- Flow control: None, hardware RTS/CTS, software XON / XOFF
- Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- Data transfer rate of up to 460.8 KB/s.
- SUPPORTS UHCI / OHCI / EHCI
- Serial plug with nuts
- Supports remote wake-up and Power management
- Compatible with 16C450 / 16C550 UART
- 1 x ferrite core
- Length including connections (L): Approx. 0.6 m.
System requirements
- Linux Kernel 2.6 or later
Windows 7/7-64/8.1/8.1-64/10/10-64
PC or notebook with a free USB type A port
