Delock USB 2.0 Adapter [1x USB-A plug - 1x RJ45 socket] 66646 0.16 m
EAN:
Part number:
Item no:

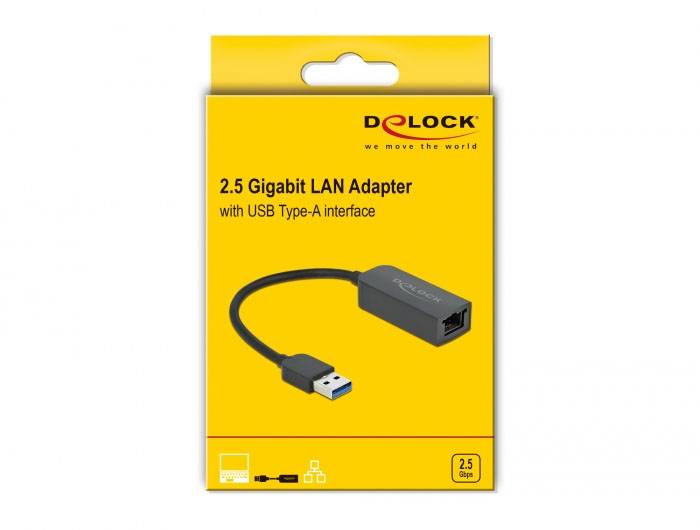

Delock adapter USB type-A plug for 2.5 gigabit LAN compact
Highlights & Details
- 0.16 m
- USB 3.2 Gen 1 Straight Male
- RJ45 straight female
- 5 Gbit/s
Technical specifications
- Connection 1 USB 3.2 1st Gen 1
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Data transfer rate 5 Gbps
- Product type
USB 2.0 Adapter
- Connection type
USB
RJ45
- No. of A connectors
1 x
- Type A
USB-A plug
- No. of B connections
1 x
- Type B
RJ45 socket
- Cable length
0.16 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Transfer rate (max.)
5 GBit/s
- Depth
53 mm
- Height
15 mm
- Width
22 mm
1 Gbps
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Manual
yes
- Full duplex
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3379087 Delock USB 2.0 Adapter [1x USB-A plug - 1x RJ45 socket] 66646 0.16 m
Description

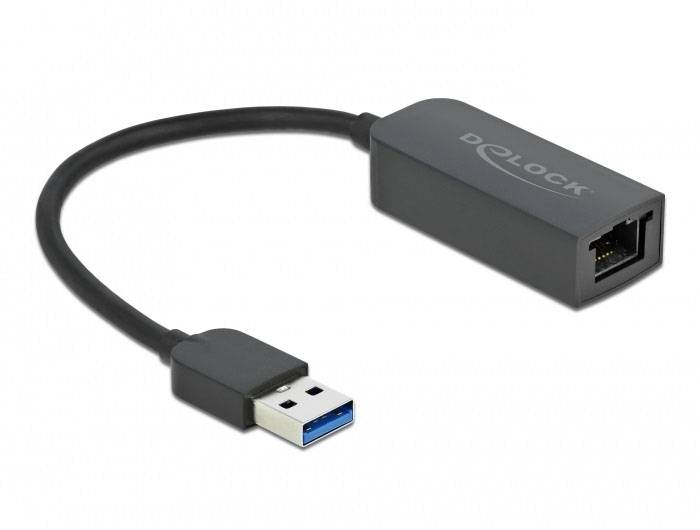

The adapter of Delock extends a PC or a laptop with a network interface via the USB type A connection.
NBASE-T for higher speeds
Modern services and new technologies require higher bandwidths. The NBASE-T technology supports speeds of 1 Gbps and 2.5 Gbps with traditional network cables. The best possible transmission rate is set automatically.
This text is machine translated.
NBASE-T for higher speeds
Modern services and new technologies require higher bandwidths. The NBASE-T technology supports speeds of 1 Gbps and 2.5 Gbps with traditional network cables. The best possible transmission rate is set automatically.
This text is machine translated.
Features
- Connections:
- 1 x USB 5 Gbps type A connector
- 1 x 2.5 Gigabit LAN RJ45 socket
- Chip set: Realtek RTL8156
- Data transfer rates:
- Ethernet up to 10 Mbps (half/full duplex)
- Fast Ethernet up to 100 Mbps (half/full duplex)
- Gigabit Ethernet up to 1000 Mbps (half/full duplex)
- NBASE-T with up to 2.5 Gbps (half/full duplex)
- Supports Auto MDI-X (automatic detection of standard or crossover network cables)
- Supports IEEE 802.1Q virtual LAN (VLAN)
- Support of full duplex with IEEE 802.3x flow control and half duplex operation with back pressure flow control
- LED display for connection and activity
- USB bus Power
- Colour, black
- Dim. (LxWxH): Approx. 53 x 22 x 15 mm
- Cable length without connections: Approx. 14 cm
System requirements
- Windows 8.1/8.1-64/10/10-64/11
Device with a free USB type A socket
