Delock USB 2.0 Adapter [1x USB-A plug - 1x RS422 plug, RS422 socket] 64055 1.5 m
EAN:
Part number:
Item no:
Highlights & Details
Delock 64055 interface card/adapter RS-232
- Host interface: USB type A
- RS-232 output interface
- Translucent
Technical specifications
- Host interface: USB type A
- Product color: Translucent
- Product type
USB 2.0 Adapter
- Connection type
USB
- No. of A connectors
1 x
- Type A
USB-A plug
- No. of B connections
1 x
- Type B
RS422 plug
RS422 socket
- Cable length
1.5 m
- Factory colour
Transparent
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Screen size diagonal (inches)
24 inch
- Weight
0.132
- UKCA
yes
- Maximum cable length
1.5 m
- Operating temperature (T-T)
-40 - 85 °C
- Quantity
1
- Internal
no
- Drivers included
yes
- Operating relative humidity (H-H)
5 - 95 %
- Plug and Play
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3379179 Delock USB 2.0 Adapter [1x USB-A plug - 1x RS422 plug, RS422 socket] 64055 1.5 m
Description

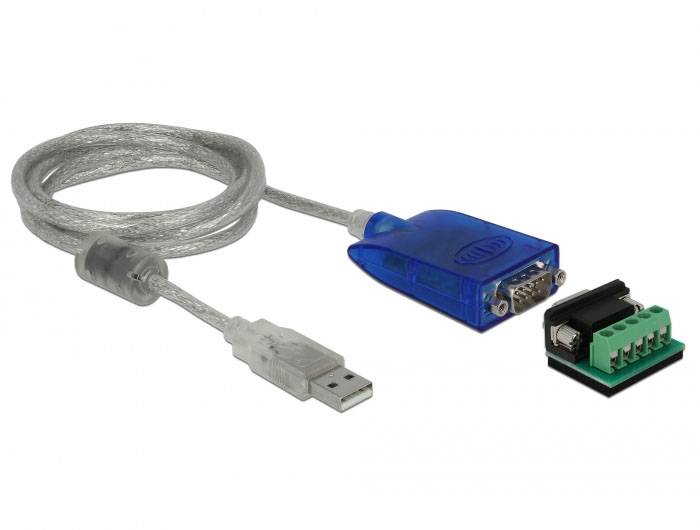

This USB type A to RS-422/485 adapter from Delock extends the computer by an industrial interface for machine controls, field bus systems, measuring devices, computers, printers etc.
Safety Features
The adapter protects itself and externally connected devices against electrostatic discharges (ESD) and surges.
Extended temperature range
The adapter offers high reliability with extended temperature range even in demanding environment.
This text is machine translated.
Safety Features
The adapter protects itself and externally connected devices against electrostatic discharges (ESD) and surges.
Extended temperature range
The adapter offers high reliability with extended temperature range even in demanding environment.
This text is machine translated.
Features
- Connections:
- Cable:

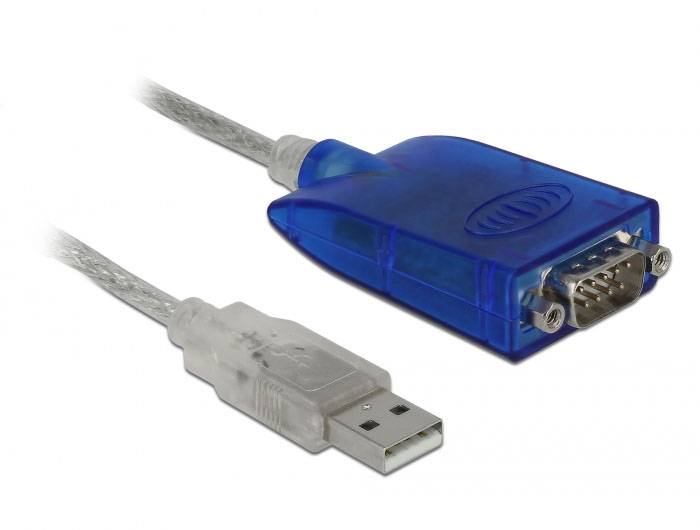

- 1 x USB Type-A connector
- 1 x serial RS-422/485 DB9 connector
- Terminal block:

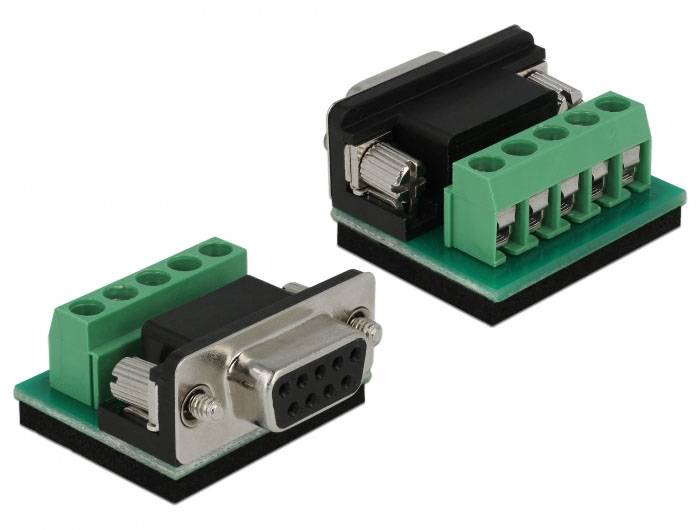

- 1 x serial RS-422/485 DB9 connector

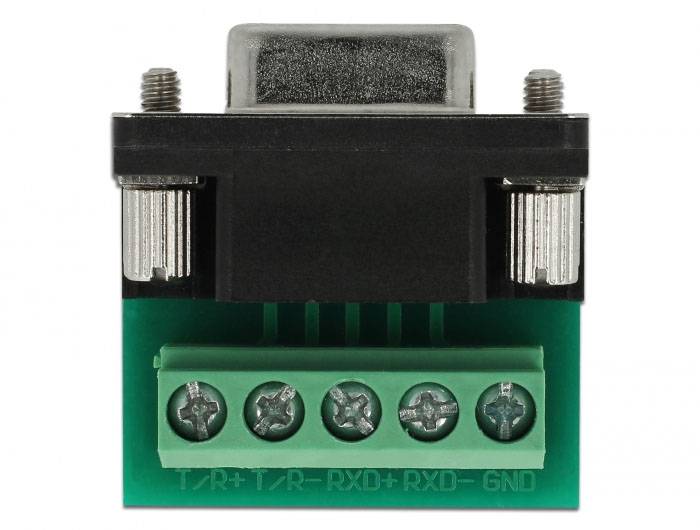

- 1 x RS-422/485 terminal block 5 pin
- FTDI FT232R chipset
- Automatic flow control
- Data transfer: Asynchronous, full duplex, semi-duplex
- Data transfer rate up to 921.6 Kbps
- Supports Modbus
- ±15 kV ESD protection on all signal pins
- Surge protection 600 W peak pulse (TVS)
- 3 x LED display for Power and activity
- Housing material: Plastic
- Colour : blue
- Operating temperature -40 °C ~ 85 °C
- Relative humidity: 5 - 95% (non-condensing)
- Cable length incl. connections: Approx. 1.5 m.
- Plug & Play
System requirements
- Linux Kernel 4.6 or later
Mac OS X 10.14.1 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
PC or notebook with a free USB type A port
