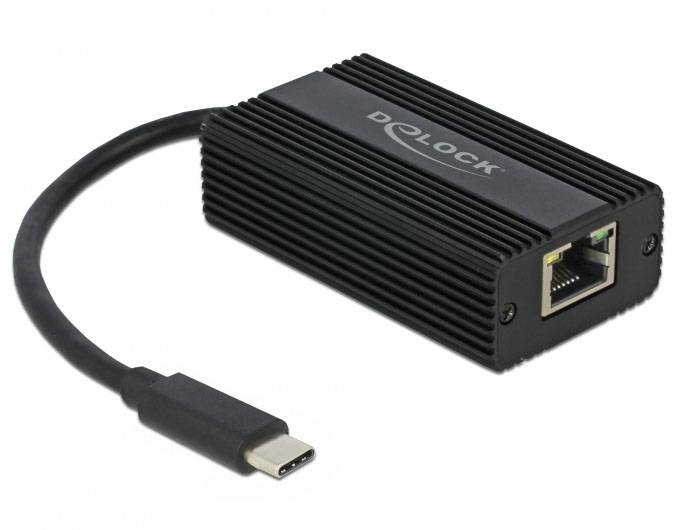

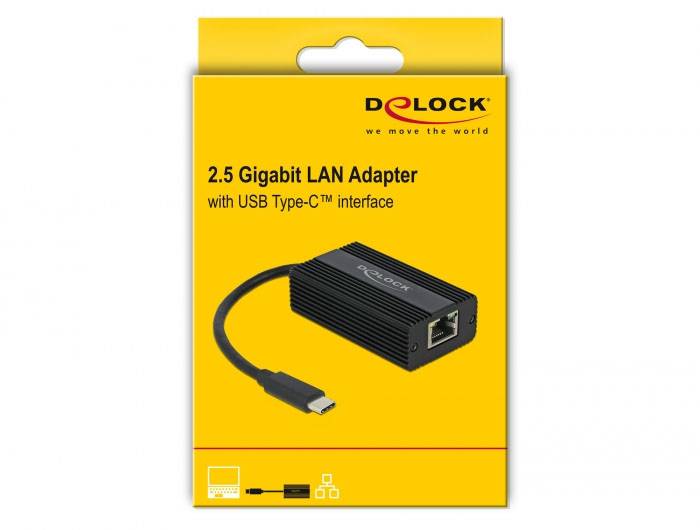

Delock USB 2.0 Adapter [1x USB-C® 3.1 plug - 1x RJ45 socket] 65990 0.135 m
EAN:
Part number:
Item no:
Technical specifications
- Data transfer rate 2.5 Gbps
- Product type
USB 2.0 Adapter
- Connection type
USB-C®
RJ45
- No. of A connectors
1 x
- Type A
USB-C® 3.1 plug
- No. of B connections
1 x
- Type B
RJ45 socket
- Cable length
0.135 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Transfer rate (max.)
2.5 GBit/s
- Depth
67 mm
- Height
21.3 mm
- Width
39.2 mm
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Manual
yes
- Full duplex
yes
- Plug and Play
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378993 Delock USB 2.0 Adapter [1x USB-C® 3.1 plug - 1x RJ45 socket] 65990 0.135 m
Description
The adapter of Delock extends a PC or a laptop with a network interface via the USB type A connection.
NBASE-T for higher speeds
Modern services and new technologies require higher bandwidths. The NBASE-T technology supports speeds of 1 Gbps and 2.5 Gbps with traditional network cables. The best possible transmission rate is set automatically.
This text is machine translated.
NBASE-T for higher speeds
Modern services and new technologies require higher bandwidths. The NBASE-T technology supports speeds of 1 Gbps and 2.5 Gbps with traditional network cables. The best possible transmission rate is set automatically.
This text is machine translated.
Features
- Connections:
- 1 x SuperSpeed USB (USB 3.1 1st Gen 1) USB Type-C™ connector >
- 1 x 2.5 Gigabit LAN RJ45 socket
- Chip set: Realtek RTL8156
- SuperSpeed USB - 5 Gbps specification
- Data transfer rates:
- Fast Ethernet up to 100 Mbps (half/full duplex)
- Gigabit Ethernet up to 1000 Mbps (half/full duplex)
- NBASE-T with up to 2.5 Gbps (half/full duplex)
- Compatible with:
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3BZ: 2.5BASE-T
- Supports Auto MDI-X (automatic recognition of standard or
- Crossover network cable)
- Supports IEEE 802.1Q virtual LAN (VLAN)
- Supports IEEE 802.3az (energy-efficient Ethernet)
- Support of full duplex with IEEE 802.3x flow control and
- Half duplex mode with back-pressure flow control
- Supports 9k Jumbo frames
- LED display for Power and activity
- USB bus Power
- Heavy duty metal casing
- Colour, black
- Dim. (LxWxH): Approx. 67.0 x 39.2 x 21.3 mm
- Cable length without connections: Approx. 13.5 cm
System requirements
- Linux Kernel 3.2 or later
Mac OS X 10.7 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64
Device with a free USB Type-C™ port or a free Thunderbolt™ 3 port
