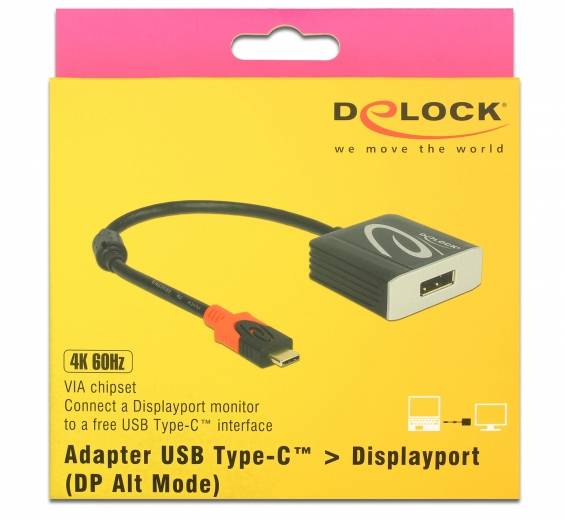

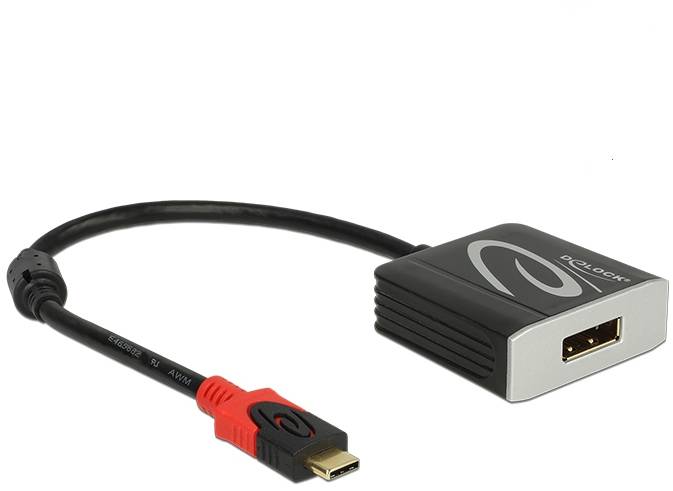

Delock USB 2.0 Adapter [1x USB-C® plug - 1x DisplayPort socket] 63312 0.2 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
USB 2.0 Adapter
- Connection type
DisplayPort
USB-C®
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
DisplayPort socket
- Cable length
0.2 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Display resolution
4096 x 2160 Pixel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378891 Delock USB 2.0 Adapter [1x USB-C® plug - 1x DisplayPort socket] 63312 0.2 m
Description
This Delock adapter is designed to connect a DisplayPort monitor to a computer with a USB-C™ interface and DisplayPort Alternate Mode support. Thus, the adapter can be connected to different laptops like the MacBook, Chromebook and the like. In addition, the adapter can be operated via a Thunderbolt™ 3 interface.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x USB Type-C™ connector
- 1 x DisplayPort socket
- Chipset: VIA VL100
- DisplayPort 1.4 specification
- Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected hardware)
- Transmission of audio and video signals
- USB bus Power
- Plug & Play
- Connections: Gold-plated
- 1 x ferrite core
- Cable length without connections: Approx. 20 cm
- Colour, black
System requirements
- Android 6.0 or higher
Chrome OS
IPad Pro (3) Next generation) or higher
Linux Kernel 4.3 or later
Mac OS X 10.12 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
Windows 10 Mobile
PC or laptop with a free USB Type-C™ port and DisplayPort Alternate Mode or
PC or laptop with a free Thunderbolt™ 3 port
