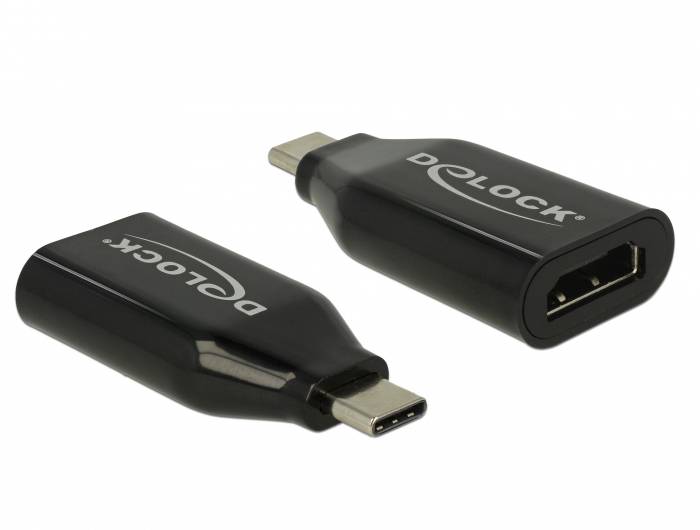

Delock USB 2.0 Adapter [1x USB-C® plug - 1x HDMI socket] 62978 0 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
USB 2.0 Adapter
- Connection type
USB
HDMI
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
HDMI socket
- Cable length
0 mm
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Depth
48.6 mm
- Height
10.3 mm
- Width
22.5 mm
- Display resolution
4096 x 2160 Pixel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378827 Delock USB 2.0 Adapter [1x USB-C® plug - 1x HDMI socket] 62978 0 mm
Description
This adapter from Delock is designed to connect an HDMI monitor to a computer with a USB-C™ interface and DisplayPort Alternate Mode support. Thus, the adapter can be connected to different laptops such as MacBook, Chromebook and the like. Moreover, the adapter can also be operated via a Thunderbolt™ 3 interface.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x USB Type-C™ connector >
- 1 x HDMI-A 19-pin socket
- Parade PS176 chipset
- DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
- Resolution up to 4096 x 2160 @ 60 Hz (depending on the system and the connected one
- Hardware)
- Transmission of audio and video signals
- Supports 3D Displays
- Supports HDCP 1.4 and 2.2
- USB bus Power
- Plug & Play
- Dimensions incl. connection (LxWxH): Approx. 48.0 x 22.5 x 10.3 mm
- Colour, black
System requirements
- Windows 7/7-64/8.1/8.1-64/10/10-64, iPad Pro (2018), Linux from Kernel 4.x.x, Mac from OS 10.12
PC or laptop with a free USB Type-C™ port and DisplayPort Alternate Mode
or
PC or laptop with a free Thunderbolt™ 3 port
