Delock USB 2.0 Adapter [1x USB-C® plug - 1x HDMI socket, VGA socket, USB-C® socket] 64074 0.12 m
EAN:
Part number:
Item no:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Product type
USB 2.0 Adapter
- Connection type
USB-C®
HDMI
VGA
USB
USB4™
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
HDMI socket
VGA socket
USB-C® socket
- Cable length
0.12 m
- Factory colour
Grey
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Transfer rate (max.)
5 GBit/s
- Depth
65 mm
- Height
16 mm
- Width
40 mm
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
1 x
- Connections
RJ45 connector
- Supported OS
Android
- Type
USB
- UKCA
yes
- Quantity per pack
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- USB Power Delivery (USB PD)
yes
- USB Power Delivery up to
87 W
- Manual
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378983 Delock USB 2.0 Adapter [1x USB-C® plug - 1x HDMI socket, VGA socket, USB-C® socket] 64074 0.12 m
Description

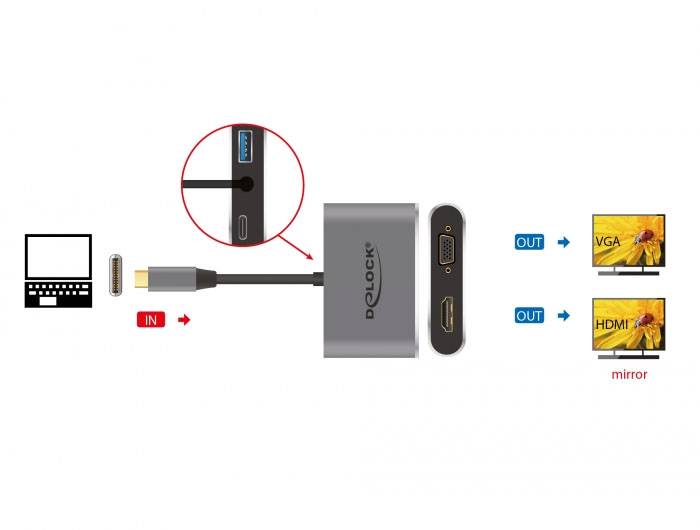

This Delock adapter is designed to connect a VGA monitor and an HDMI monitor to a computer with a USB-C™ interface and DisplayPort alternate mode support. Two monitors can be simultaneously operated at the outputs. In addition, the adapter has a USB 3.0 Type-A interface for the use of peripherals.
USB Power delivery (USB PD 2.0) support up to 87 watt
The docking station has a USB Type-C™ Power delivery port, which can be used to connect the notebook or tablet power supply to charge it. In addition, this power supply also provides power to the USB sockets. The docking station can also be used without a power adapter.
Small stable helper
Thanks to its small size and sturdy housing, this Delock docking station is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
USB Power delivery (USB PD 2.0) support up to 87 watt
The docking station has a USB Type-C™ Power delivery port, which can be used to connect the notebook or tablet power supply to charge it. In addition, this power supply also provides power to the USB sockets. The docking station can also be used without a power adapter.
Small stable helper
Thanks to its small size and sturdy housing, this Delock docking station is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
Features
- Connections:
- 1 x USB Type-C™ connector
- 1 x HDMI-A socket
- 1 x VGA 15 pin socket
- 1 x SuperSpeed USB 5 Gbps (USB 3.2 1st Gen 1) Type A socket
- 1 x USB Type-C™ connector (power supply)
- Resolution:
- HDMI up to 3840 x 2160 @ 30 Hz
- VGA up to 1920 x 1080 @ 60 Hz
- (Depending on the system and the connected hardware)
- Transmission of audio and video signals
- Input power: 1 x USB Type-C™ socket max. 87 W
- Metal housing
- Cable length without connections: Approx. 12 cm
- Colour: grey
- Dim. (LxWxH): Approx. 65 x 40 x 16 mm
System requirements
- Android 9.0 or higher
Mac OS X 10.14.2 or higher
Windows 8.1/8.1-64/10/10-64/11
Device with a free USB Type-C™ port and DisplayPort Alternate Mode or
With a free Thunderbolt™ 3 port
