Delock USB 2.0 Adapter [1x USB-C® plug - 1x RS232 plug] 62964 1.8 m
EAN:
Part number:
Item no:

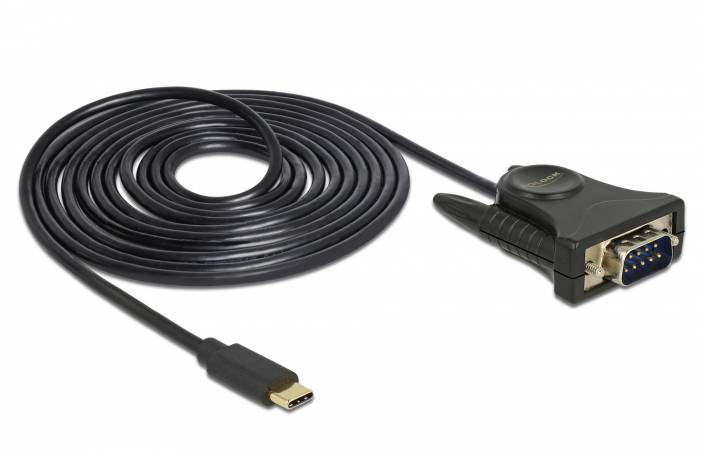

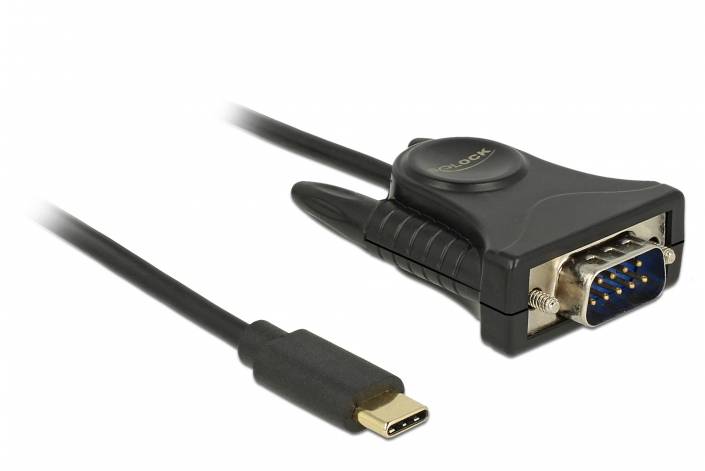

Delock 62964 Parallel cable black 1.8 m
Highlights & Details
- 1.8 m
- Connection 1 USB Type-C
- Connection 2 RS-232
- Male/Male
Technical specifications
- Connection 1 USB Type-C
- Connection 2 RS-232
- Product type
USB 2.0 Adapter
- Connection type
USB-C®
Series
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
RS232 plug
- Cable length
1.8 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378847 Delock USB 2.0 Adapter [1x USB-C® plug - 1x RS232 plug] 62964 1.8 m
Description
This USB Type-C to serial adapter from Delock offers a compatible RS-232 DB9 connector for printers, measuring devices, controls, IoT devices, etc.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x USB Type-C™ connector >
- 1 x serial RS-232 DB9 connector
- Prolific PL2303 HXD chipset
- Screw type #4-40 UNC
- Compatible with USB 2.0 and USB 1.1 full speed 12 Mbps
- Data transfer rate of up to 1 Mbps
- Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- Parity bit: Even, odd, none, marked, empty
- Stop bit:1, 1.5, 2
- Data bits 5, 6, 7, 8
- Flow Control: None, Xon/Xoff, RTS/CTS
- FIFO: 512 bytes buffer bidirectional
- Cable length approx. 1.8 m
System requirements
- Android 4.4 or higher
Linux Kernel 2.6.31 or later
Mac OS X 10.12 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
