Delock USB 2.0 Adapter [1x USB-C® plug - 1x USB-C® socket] 66433
EAN:
Part number:
Item no:
Delock Thunderbolt 3 / USB Type-C (DP Alt Mode) 8K 30 Hz magnetic adapter plug to socket
Highlights & Details
- Thunderbolt 3/ USB C Male
- Thunderbolt 3/ USB C Female
- 40 Gbit/s 7680 x 4320 pixels
- Case material: metal
- silver
- 1 pieces(s)
Technical specifications
- Port 1: Thunderbolt 3/ USB C
- Port 2: Thunderbolt 3/ USB C
- Data transfer rate 40 Gbps
- Product type
USB 2.0 Adapter
- Connection type
USB-C®
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
USB-C® socket
- Factory colour
Silver
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Display resolution
7680 x 4320 Pixel
- Frame rate
30 Hz
- Output voltage
20 V
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Output current
4500 mA
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380217 Delock USB 2.0 Adapter [1x USB-C® plug - 1x USB-C® socket] 66433
Description

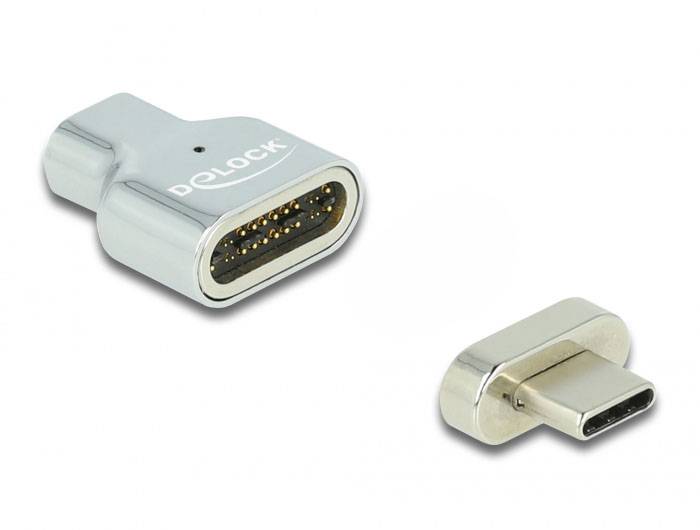

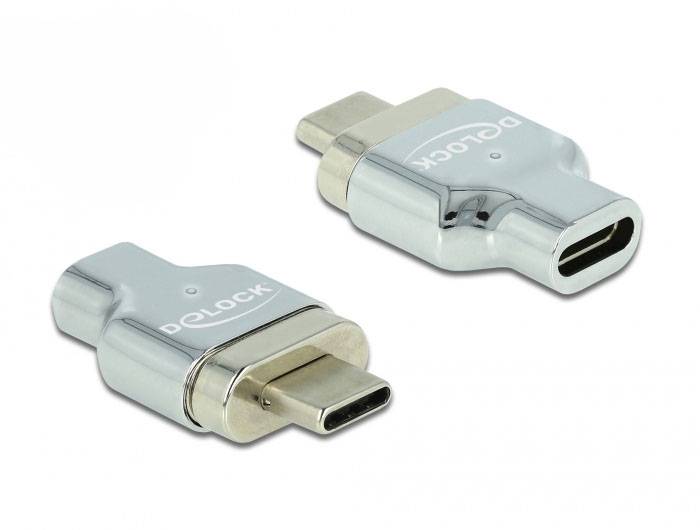

This magnetic adapter from Delock is compatible with Thunderbolt 3, USB 3.2 Gen 2 and USB Type-C DP Alt Mode and can be used when connecting Thunderbolt and USB Type-C devices. The adapter can also be used as a port saver in order to protect the interface in applications with high mating cycles. The adapter is designed so that it can remain in the socket of the device and prevents wear on the socket and serves as dust protection.
Magnetic function
When using the adapter, the cable can be connected to the counterpart of the adapter, which connects magnetically with the remaining part in the device.
Quality

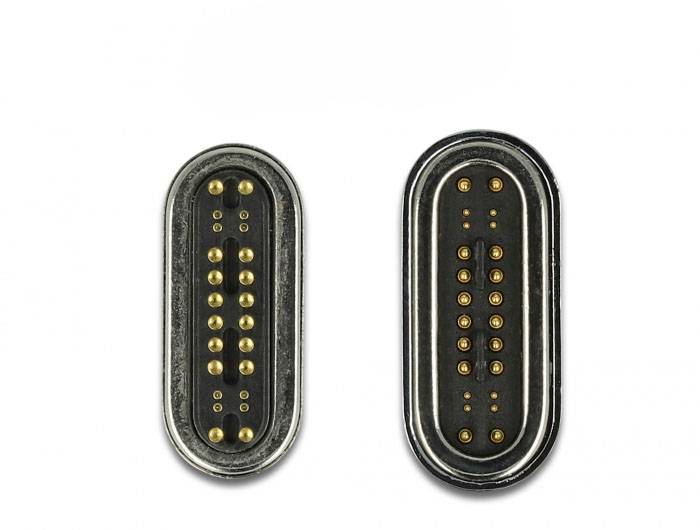

The adapter is attractive and of high quality due to its elegant metal housing; this makes it particularly robust and durable. The spring contacts (Pogo pins) guarantee a high degree of functional safety at a very high number of cycles.
This text is machine translated.
Magnetic function
When using the adapter, the cable can be connected to the counterpart of the adapter, which connects magnetically with the remaining part in the device.
Quality
The adapter is attractive and of high quality due to its elegant metal housing; this makes it particularly robust and durable. The spring contacts (Pogo pins) guarantee a high degree of functional safety at a very high number of cycles.
This text is machine translated.
