Delock USB 2.0 Adapter [1x USB-C® plug - 1x VGA socket] 62994 0.2 m
EAN:
Part number:
Item no:
Highlights & Details

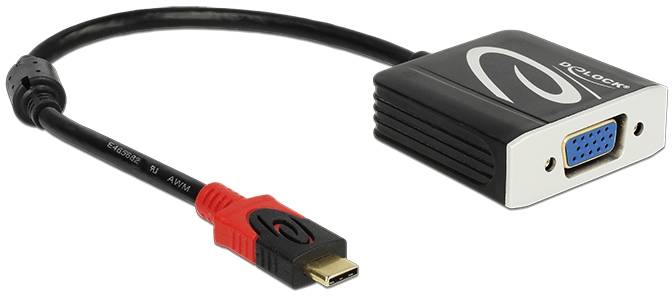

Delock 62994 video cable adapter 0.2 m USB Type-C VGA (D-Sub) black
- 0.2 m
- USB Type-C Straight Male
- VGA (D-Sub) Straight Female
- 1920 x 1200 pixels
Technical specifications
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Connection 1 USB Type-C
- Connection 2: VGA (D-Sub)
- Product type
USB 2.0 Adapter
- Connection type
USB-C®
VGA
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
VGA socket
- Cable length
0.2 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Display resolution
1920 x 1200 Pixel
- Connections
RJ45 connector
- UKCA
yes
- Plug and Play
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378862 Delock USB 2.0 Adapter [1x USB-C® plug - 1x VGA socket] 62994 0.2 m
Description

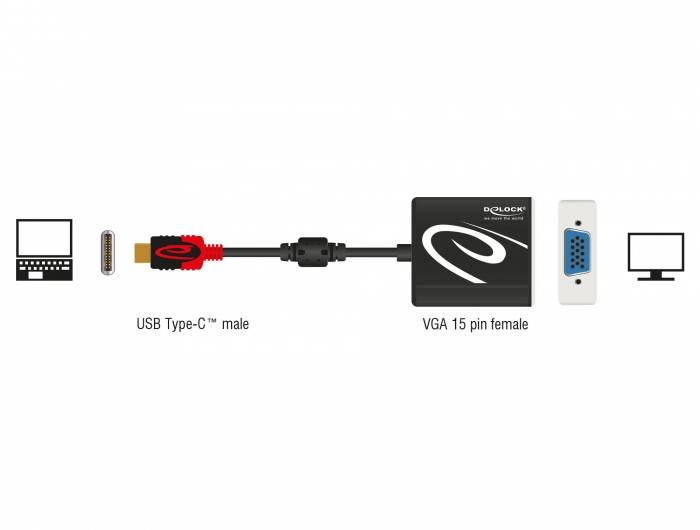

This Delock adapter is suitable for connecting a VGA monitor to a computer with a USB-C™ interface and DisplayPort alternative mode support. Thus, the adapter can be connected to different laptops like the MacBook, Chromebook and the like. In addition, the adapter can be operated via a Thunderbolt™ 3 interface.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x USB Type-C™ connector
- 1 x VGA sockets
- Chip set: Realtek RTD2169U
- VGA connection with nuts
- DisplayPort 1.4 specification
- Resolution up to WUXGA 1920 x 1200 @ 60 Hz (depending on the system and the
- Connected hardware)
- Transmission of analogue video signals
- USB bus Power
- Plug & Play
- Contacts with gold plating
- 1 x ferrite core
- Cable length without connections: Approx. 20 cm
- Colour, black
System requirements
- Chrome OS
Linux Kernel 4.4 or later
Mac OS X 10.13 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
Windows 10 Mobile
IPad Pro (3) Next generation) or higher
PC or laptop with a free USB Type-C™ port and DisplayPort Alternate Mode or
PC or laptop with a free Thunderbolt™ 3 port
