1/4
Delock USB 2.0 Adapter [1x USB-C® plug - 1x VGA socket, HDMI socket, DVI socket 29-pin] 63925 0.13 m
EAN:
Part number:
Item no:
Highlights & Details
Delock 63925 video splitter
- Video ports Quantity: 3 black
- 3840 x 2160 pixels
- Maximum frame rate 60 Hz
Technical specifications
- Product type
USB 2.0 Adapter
- Connection type
USB
VGA
HDMI
DVI
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
VGA socket
HDMI socket
DVI socket 29-pin
- Cable length
0.13 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Display resolution
3840 x 2160 Pixel
- Frame rate
60 Hz
- Power consumption (ON)
1.35 W
- UKCA
yes
- USB powered
yes
- Video ports quantity
3
- Mac compatibility
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378940 Delock USB 2.0 Adapter [1x USB-C® plug - 1x VGA socket, HDMI socket, DVI socket 29-pin] 63925 0.13 m
Description

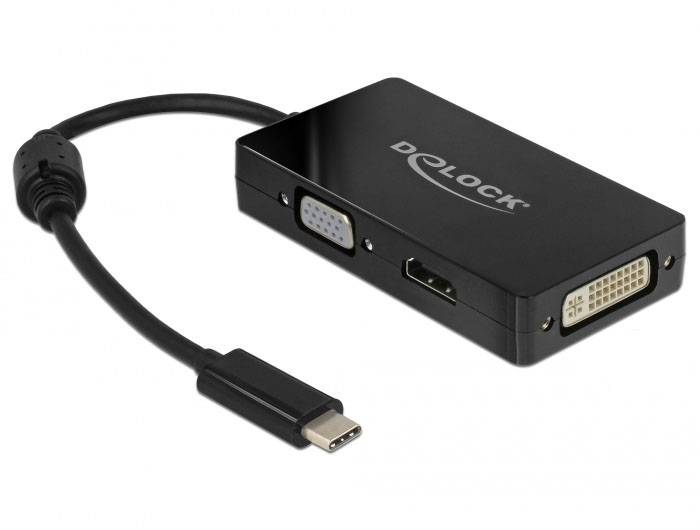

This Delock adapter is suitable for the connection of a VGA, HDMI or DVI monitor to a computer with USB-C interface and DisplayPort alternative mode support. Thus, the adapter can be connected to different laptops like the MacBook, Chromebook and the like. In addition, the adapter can be operated at a Thunderbolt 3 interface. Only one monitor can be operated on the adapter.
This text is machine translated.
This text is machine translated.

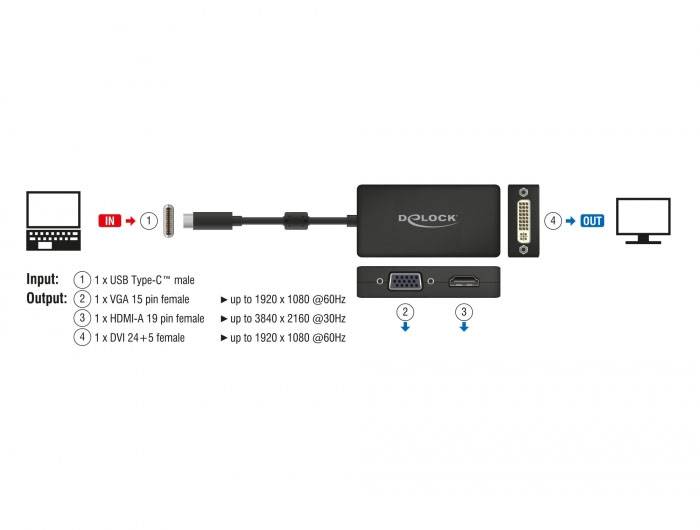

Features
- Connections:
- 1 x USB Type-C™ connector >
- 1 x VGA 15 pin socket
- 1 x HDMI-A 19-pin socket
- 1 x DVI 24+1 socket with nuts
- VL100, IT6562FN, PS8222B CHIPSET
- High Speed HDMI specification
- DVI-D (Single Link), VGA not connected
- Only 1 monitors can be used on the adapter
- Resolution:
- HDMI up to 3840 x 2160 @ 30 Hz
- (Depending on the system and the connected hardware)
- DVI and VGA up to 1920 x 1080 @ 60 Hz
- (Depending on the system and the connected hardware)
- Power consumption: max. 1.35 W
- Cable length without connections: Approx. 13 cm
- Colour, black
System requirements
- IPad Pro (2018)
Linux Kernel 4.6 or later
Mac OS X 10.13.3 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64
PC or laptop with a free USB Type-C™ port and
DisplayPort Alternate Mode or
PC or laptop with a free Thunderbolt™ 3 port
