Delock USB 2.0 Adapter [1x USB-C® plug - 1x VGA socket, HDMI socket, DVI socket 29-pin, DisplayPort socket] 63929 0.15 m
EAN:
Part number:
Item no:
Technical specifications
- Host interface USB 2.0 Type-C.
- Product type
USB 2.0 Adapter
- Connection type
USB
VGA
HDMI
DisplayPort
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
VGA socket
HDMI socket
DVI socket 29-pin
DisplayPort socket
- Cable length
0.15 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- No. of HDMI ports
1 x
- Power consumption (ON)
1.5 W
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378929 Delock USB 2.0 Adapter [1x USB-C® plug - 1x VGA socket, HDMI socket, DVI socket 29-pin, DisplayPort socket] 63929 0.15 m
Description

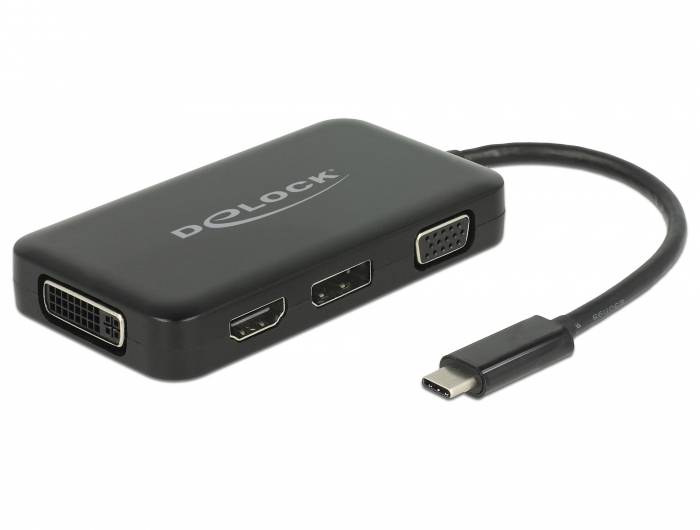

This adapter from Delock is a perfect companion while traveling or for presentations, thanks to its four different video ports. A VGA, HDMI, DVI, or DisplayPort monitor can be connected to a computer with a USB-C™ interface and DisplayPort Alternate Mode support. In addition, the adapter can be operated via a Thunderbolt™ 3 interface. Only one monitor can be operated on the adapter.
This text is machine translated.
This text is machine translated.
Features

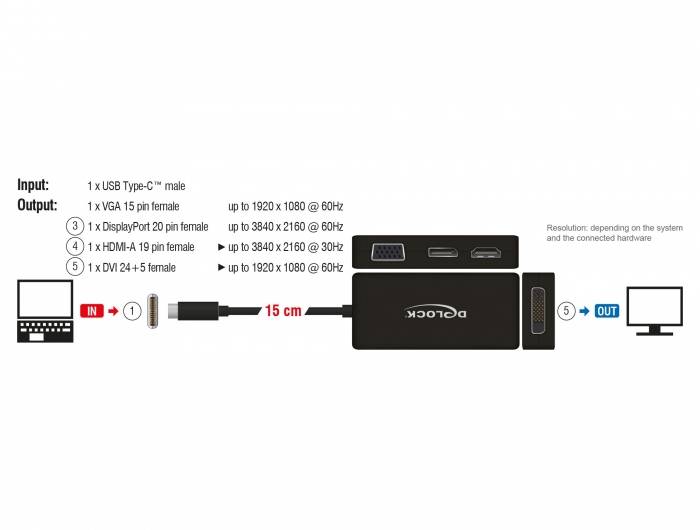

- Connections:
- 1 x USB Type-C™ connector >
- 1 x VGA 15 pin socket
- 1 x HDMI-A 19-pin socket
- 1 x DVI 24+5 socket
- 1 x DisplayPort 20-pin socket
- VL100, PS8348B, PS8338B, IT6516, IT6561 CHIPSET
- DisplayPort 1.2 and High Speed HDMI specification
- DVI-D (Single Link), VGA not connected
- Only 1 monitors can be used on the adapter
- Resolution:
- DisplayPort up to 3840 x 2160 @ 60 Hz (depending on system and the
- Connected hardware)
- HDMI up to 3840 x 2160 @ 30 Hz (depending on system and the
- Connected hardware)
- DVI and VGA up to 1920 x 1080 @ 60 Hz (depending on system and the
- Connected hardware)
- Power consumption: max. 1.5 W
- Cable length without connections: Approx. 15 cm
- Colour, black
System requirements
- IPad Pro (2018)
Linux Kernel 4.6 or later
Mac OS X 10.13.3 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
PC or laptop with a free USB Type-C™ port and
DisplayPort Alternate Mode or
PC or laptop with a free Thunderbolt™ 3 port
