1/7
Delock USB-C® docking station 63957
EAN:
Part number:
Item no:
Datasheet (PDF)

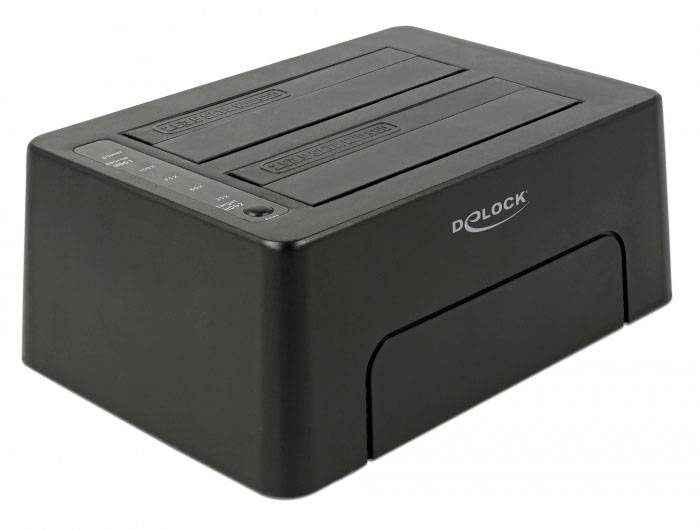

Delock 63957 USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): SATA 6 Gbps
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
SATA 6 Gbps
- Interfaces
1x USB-C®
2x SATA
- Cable length
0 cm
- Factory colour
Black
- Width
110 mm
- Height
62 mm
- Depth
153 mm
- Weight
0.78
- Dim
(W x H x D) 110 x 62 x 153 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Material
Plastic
- Max. output current
3 A
- Output voltage
12 V
- Power supply (details)
100 - 240 V
- UKCA
yes

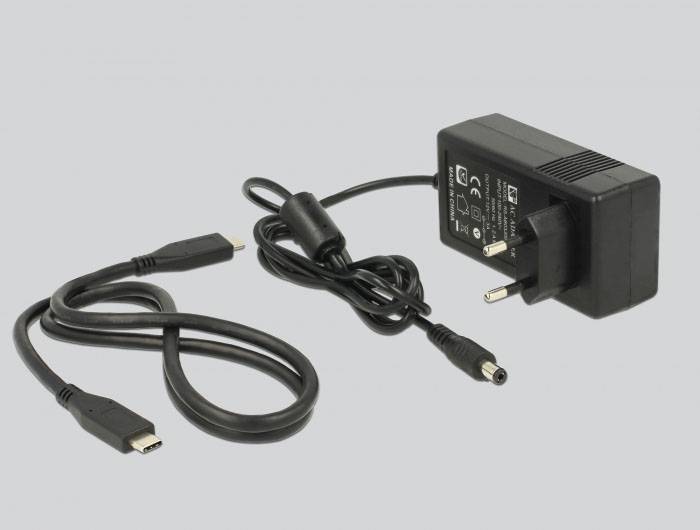

- AC adapter included
yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports quantity
1
- DC-in jack
yes
- Maximum data transfer rate
6 Gbit/s
- Manual
yes
- On/off switch
yes
- Plug and Play
yes
- Mac compatibility
yes
- Number of storage drives supported
2
Documents & Downloads
Datasheet
Datasheet 3381674 Delock USB-C® docking station 63957
User & Safety Instructions
User & Safety Instructions 3381674 Delock USB-C® docking station 63957
Description
This Delock docking station is designed for external connection of up to two 2.5″ or 3.5″ SATA HDDs or SSDs via the USB-C™ interface. This solution does not require an external housing as the drive is inserted directly into the docking station. In addition, the clone function permits the data from one drive to be copied to another drive without using a PC.
This text is machine translated.
This text is machine translated.
Features

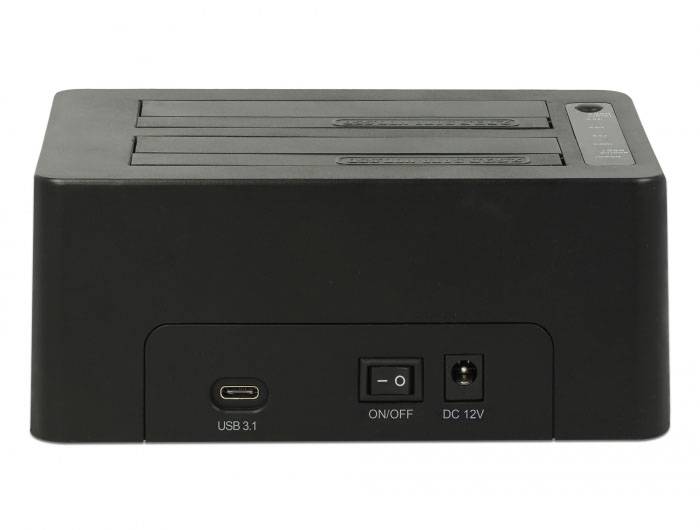

- Connections:
- 1 x USB 10 Gbps USB Type-C™ jack
- 2 x SATA 6 GB/s 22-pin socket
- 1 x DC power jack
- Asmedia ASM1352R chipset
- Function buttons:
- 1 x bell button
- 1 x on/off switch

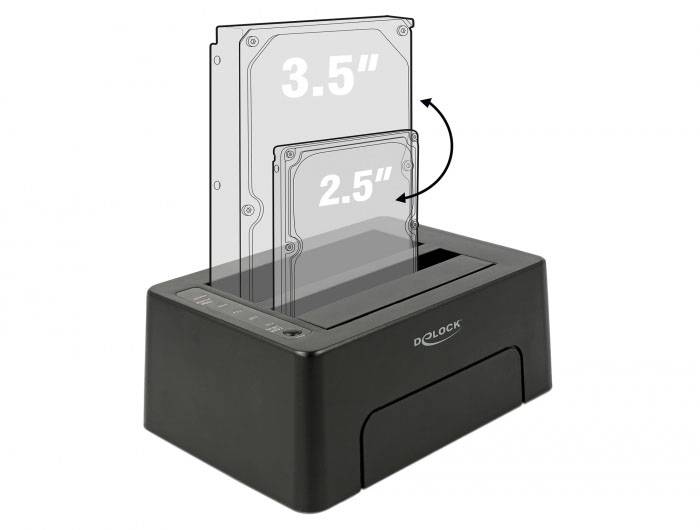

- For 2.5″ and 3.5″ SATA HDDs / SSDs
- Suitable for all SATA HDDs up to SATA 6 GB/s.
- Data transfer rate of up to 6 GB/s.

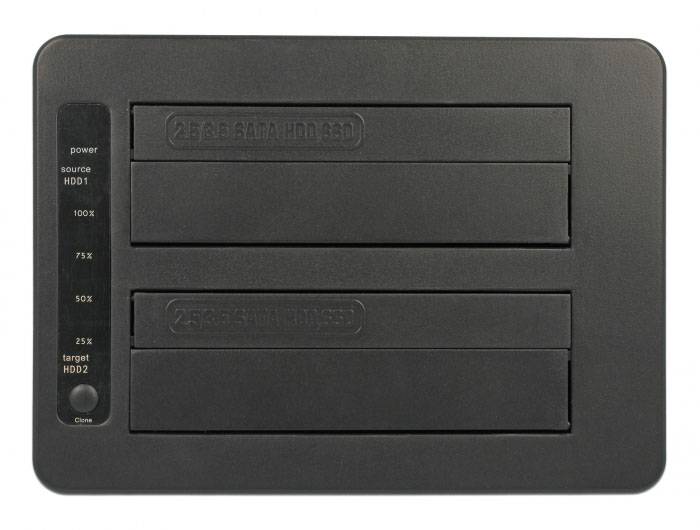

- LED display for Power, access and copy status
- Dim. (LxWxH): Approx. 153 x 110 x 62 mm
- Plug & Play
System requirements
- Linux Kernel 4.9.4 or later
Mac OS X 10.13.3 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
PC or laptop with a free USB Type-C™ port
