Delock USB-C® docking station 87721
EAN:
Part number:
Item no:
Datasheet (PDF)

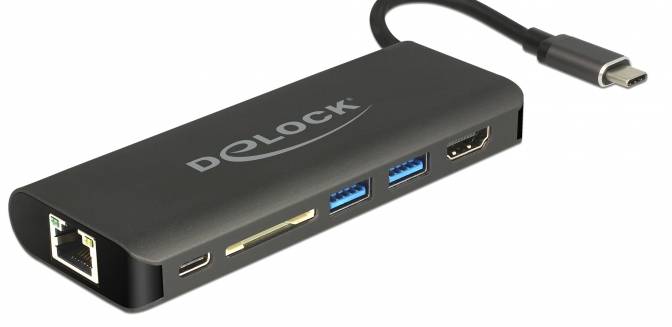

Delock 87721 USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): LAN (10/100/1000 Mbps), HDMI®, USB-C®, USB 3.2 1st Gen port B (USB 3.0), SD
- No. of supported monitors:
- Maximum resolution: 3840 x 2160 p
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type A
- Support for other operating systems: Windows Phone
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
LAN (10/100/1000 Mbps)
HDMI®
USB-C®
USB 3.2 1st Gen port B (USB 3.0)
SD
- Interfaces
1x LAN (10/100/1000 Mbps)
1x HDMI
1x USB-C®
1x USB 3.2 1st Gen (USB 3.0)
SD slot
- Resolution (max.)
3840 x 2160 p
- Cable length
15 cm
- Factory colour
Black
- Width
46 mm
- Height
16 mm
- Depth
116 mm
- Weight
0.13 kg
- Dim
(W x H x D) 46 x 16 x 116 mm
- Cable design
Round
- Version
Cable
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Cable use
C13/C14 appliances
- UKCA
yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
- Card reader integrated
yes
- Manual
yes
- Power consumption (max)
60 W
Documents & Downloads
Datasheet
Datasheet 3381266 Delock USB-C® docking station 87721
User & Safety Instructions
User & Safety Instructions 3381266 Delock USB-C® docking station 87721
Description
This Delock docking station can be connected to a computer with a USB-C™ Alt-Mode or Thunderbolt™ 3 port and provides a variety of interfaces. A screen can be operated at the HDMI output. Two integrated USB type-A ports enable the use of peripherals, and connections for gigabit network, as well as an SD card reader, complete the equipment. A USB-C™ power adapter can charge laptops such as the MacBook or Chromebook during operation.
USB Type-C™ 3.1 docking station (video)
This text is machine translated.
USB Type-C™ 3.1 docking station (video)
This text is machine translated.
Features
- Connections:
- 1 x Gigabit LAN 10/100/1000 Mbps RJ45 socket
- 1 x HDMI-A 19-pin socket
- 1 x USB Type-C™ PD socket (power supply)
- 2 x USB 3.0 type A socket
- 1 x SD / SDHC / SDXC / MMC slot
- 1 x USB Type-C™ connector
- VL813, VL100, GL857L, PS176, RTL8153 CHIPSET
- Resolution up to 3840 x 2160 @ 30 Hz
- (Depending on the system and the connected hardware)
- Transmission of audio and video signals
- Output power: Per port 4.5 W (5 V / 0.9 A)
- Input power: 1 x USB Type-C™ socket max. 60 W (20 V / 3 A)
- Metal housing
- Cable length incl. connection: Approx. 15 cm
- Colour: Anthracite
- Dim. (LxWxH): Approx. 116 x 46 x 16 mm
System requirements
- Chrome OS
Linux Kernel 4.9 or later
Mac OS X 10.12 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
Windows 10 Mobile
Device with a free USB Type-C™ port and DisplayPort Alternate Mode or
With a free Thunderbolt™ 3 port
