Delock USB-C® docking station 87742
EAN:
Part number:
Item no:
Datasheet (PDF)

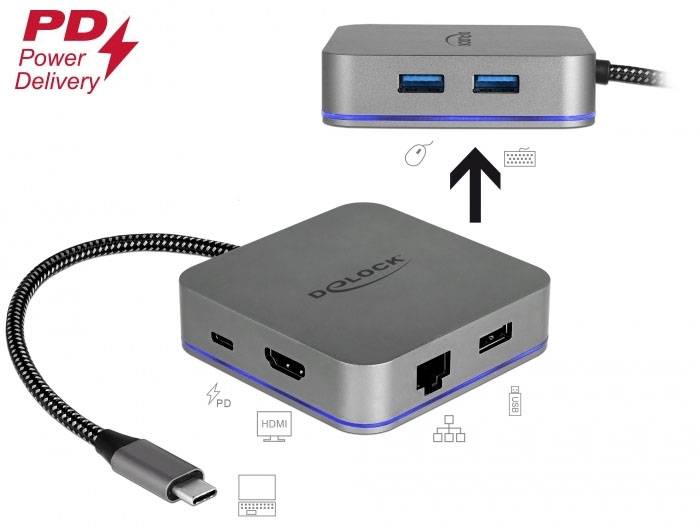

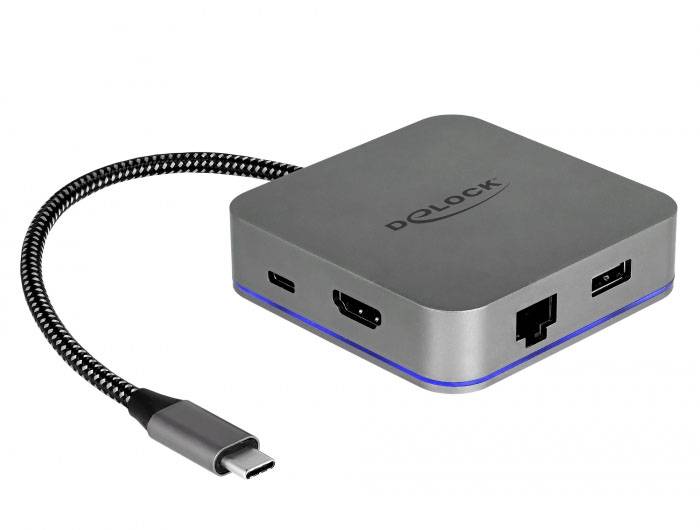

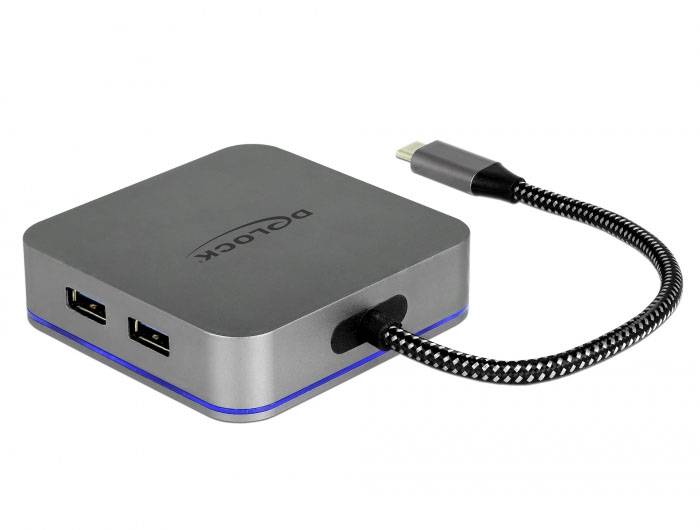

Delock 87742 USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): USB 3.2 1st Gen, HDMI®, USB-C®, LAN (10/100/1000 Mbps)
- No. of supported monitors:
- Maximum resolution: 3840 x 2160 p
- Key features:
Technical specifications
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB 3.2 1st Gen
HDMI®
USB-C®
LAN (10/100/1000 Mbps)
- Interfaces
1x USB-C®
3x USB 3.2 1st Gen (USB 3.0)
1x HDMI
1x LAN (10/100/1000 Mbps)
1x USB-C®
- Resolution (max.)
3840 x 2160 p
- Cable length
20 cm
- Factory colour
Grey
- Width
75 mm
- Height
19 mm
- Depth
75 mm
- Weight
0.144 kg
- Dim
(W x H x D) 75 x 19 x 75 mm
- Bluetooth
No
- Cable design
Round
- Version
Cable
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Cable use
C13/C14 appliances
- Material
Metal
- Wireless charging
No
- 10/100/1000 Mbps ports
1 x
- Compatible with
Jede Marke
- UKCA
yes
- Ethernet LAN
yes
- Quantity
1
- USB Type-C ports quantity
1
- HDMI
yes
Documents & Downloads
Datasheet
Datasheet 3381648 Delock USB-C® docking station 87742
User & Safety Instructions
User & Safety Instructions 3381648 Delock USB-C® docking station 87742
Description
This Delock docking station can be connected to a mobile device with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. A screen can be operated at the HDMI output. Three integrated USB ports enable the use of peripherals. The Gigabit network connection makes the connection possible to the network.
USB Power delivery (USB PD 3.0) support up to 87 watt
The docking station has a USB Type-C™ Power delivery port, which can be used to connect the notebook or tablet power supply to charge it. In addition, this power supply also provides power to the USB sockets. The docking station can also be used without a power adapter.
LED design lighting

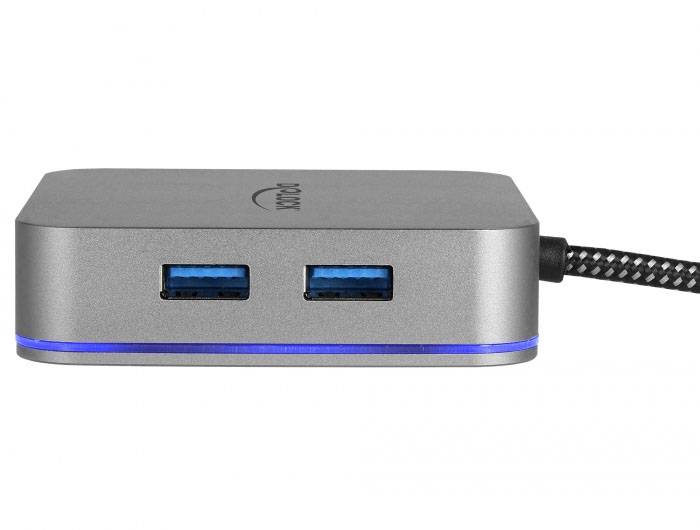

Once the docking station is connected via the USB-C™ connector, a LED at the bottom will illuminate in a unique design.
Small stable helper
Due to its small size and sturdy housing, this Delock docking station is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
USB Power delivery (USB PD 3.0) support up to 87 watt
The docking station has a USB Type-C™ Power delivery port, which can be used to connect the notebook or tablet power supply to charge it. In addition, this power supply also provides power to the USB sockets. The docking station can also be used without a power adapter.
LED design lighting
Once the docking station is connected via the USB-C™ connector, a LED at the bottom will illuminate in a unique design.
Small stable helper
Due to its small size and sturdy housing, this Delock docking station is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
Features
- Connections:
- 1 x USB Type-C™ connector
- 3 x USB 3.0 type A socket
- 1 x HDMI-A socket
- 1 x Gigabit LAN 10/100/1000 Mbps RJ45 socket
- 1 x USB Type-C™ connector (power supply)
- Resolution up to 3840 x 2160 @ 30 Hz
- (Depending on the system and the connected hardware)
- Transmission of audio and video signals
- Input power: 1 x USB Type-C™ socket max. 87 W
- Metal housing
- LED Lighting
- Cable length without connections: Approx. 20 cm
- Colour: grey
- Dim. (LxWxH): Approx. 75 x 75 x 19 mm
System requirements
- Android 8.0 or higher
Chrome OS 71.0 or higher
Linux Kernel 4.9.4 or later
Mac OS X 10.12 or higher
Windows 8.1/8.1-64/10/10-64/11
Windows 10 Mobile
Device with a free USB Type-C™ port and DisplayPort Alternate Mode or
With a free Thunderbolt™ 3 port
