Delock USB-C® docking station 87743
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

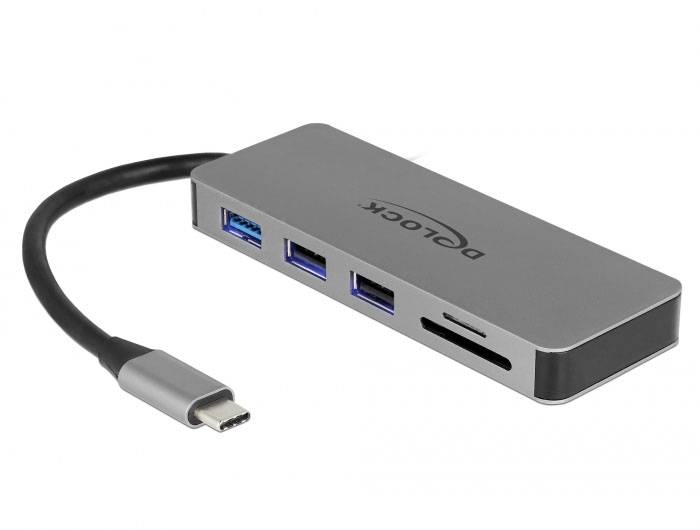

Delock 87743 USB-C® docking station
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): USB 3.2 1st Gen, USB 2.0, SD, microSD, HDMI®, USB-C®
- No. of supported monitors:
- Maximum resolution: 3840 x 2160 p
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB 3.2 1st Gen
USB 2.0
SD
microSD
HDMI®
USB-C®
- Interfaces
1x USB-C®
1x USB 3.2 1st Gen (USB 3.0)
2x USB 2.0
micro-SD slot
SD slot
1x HDMI
1x USB-C®
- Resolution (max.)
3840 x 2160 p
- Cable length
15 cm
- Factory colour
Grey
- Width
40 mm
- Height
12 mm
- Depth
109 mm
- Weight
0.103 kg
- Dim
(W x H x D) 40 x 12 x 109 mm
- Cable design
Round
- Version
Cable
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
1 x
- Cable use
C13/C14 appliances
- Type
USB
- UKCA
yes
- Quantity per pack
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- USB 2.0 ports quantity
2
- Card reader integrated
yes
- USB Power Delivery (USB PD)
yes
- USB Power Delivery up to
87 W
- Manual
yes
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3381577 Delock USB-C® docking station 87743
User & Safety Instructions
User & Safety Instructions 3381577 Delock USB-C® docking station 87743
Description
This Delock docking station can be connected to a mobile device with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. A screen can be operated at the HDMI output. Three integrated USB ports enable the use of peripherals, as well as an SD / micro SD card reader, complete the equipment.
USB Power delivery (USB PD 2.0) support up to 87 watt
The docking station has a USB Type-C™ Power delivery port, which can be used to connect the notebook or tablet power supply to charge it. In addition, this power supply also provides power to the USB sockets. The docking station can also be used without a power adapter.
LED Lighting
An internal blue LED illumination sees to it that the connections are found also in the dark.
Small stable helper
Due to its small size and sturdy housing, this Delock docking station is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
USB Power delivery (USB PD 2.0) support up to 87 watt
The docking station has a USB Type-C™ Power delivery port, which can be used to connect the notebook or tablet power supply to charge it. In addition, this power supply also provides power to the USB sockets. The docking station can also be used without a power adapter.
LED Lighting
An internal blue LED illumination sees to it that the connections are found also in the dark.
Small stable helper
Due to its small size and sturdy housing, this Delock docking station is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
Features
- Connections:
- 1 x USB 5 Gbps USB Type-C™ connector
- 1 x USB 5 Gbps Type-A socket
- 2 x USB 2.0 type A socket
- 1 x SD / SDHC / SDXC slot
- 1 x Micro SD/SDHC/SDXC Slot
- 1 x HDMI-A socket
- 1 x USB 5 Gbps USB Type-C™ connector (power supply)
- Resolution up to 3840 x 2160 @ 30 Hz
- (Depending on the system and the connected hardware)
- Transmission of audio and video signals
- Input power: 1 x USB 5 Gbps USB Type-C™ jack max. 87 W.
- Only one memory card can be used, not both at the same time
- Less than an alspan style= font-size:11.0pt Compatible with Samsung Dexsmaller than/span
- Metal housing
- LED Lighting
- Cable length without connections: Approx. 15 cm
- Colour: grey
- Dim. (LxWxH): Approx. 109 x 40 x 12 mm
System requirements
- Linux Kernel 4.6 or later
Mac OS X 10.14 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
Windows 10 Mobile
IPad Air (4. Next generation) or higher
IPad Pro (3) Next generation) or higher
IPhone 15 Pro or higher
Device with a free USB Type-C™ port and DisplayPort Alternate Mode or with a free Thunderbolt™ 3 port
